Add a fiber/copper GbE SFP transceiver or Direct Attach Cable to a workstation or serverAdd a 1GbE SFP module to a PCI Express (PCIe) 2.1 x1 (or higher) slot in an IT Administrator workstation or server backplane, using this 1-Port SFP Network Controller.High Performance Intel ChipsetThe network controller features an Intel I210 chip known for its reliability and high-performance capabilities, offering low-latency and low CPU utilization, ensuring smooth and efficient network data transfer, which is critical for business applications and services. Support for VMDq, SR-IOV, and Intel® VT-c technologies allow for enhanced virtual machine performance, reduced CPU overhead, and improved network virtualization capabilities. The PCIe network card supports PXE boot, enabling centralized operating system deployment and updates. It also features 9K jumbo frame support, reducing packet overhead for improved data transmission efficiency. VLAN tagging support allows for efficient network management and segmentation.Hardware and Operating System CompatibilityThe network interface controller connects to an available x1 PCI Express 2.1 (or higher) expansion slot. It is compatible with Windows Server 2012 and newer, Windows 10 and newer, Linux, VMware ESXi 7.x, and Microsoft Hyper-V. This NIC is compatible with both MSA-compliant and branded 1GB SFP modules, as well as direct attach copper cables (DACC). Includes a low-profile bracket designed for small form factor systems.Flexible Network ConnectionsThe card features an SFP slot for interchangeable SFP modules. Select fiber transceiver modules that best suit the network needs of the application, based on the distance and connector type. StarTech.com offers a wide variety of SFP transceiver modules to meet many GbE network applications.The StarTech.com Advantage
Data transmission | |
Maximum data transfer rate | 1000 Mbit/s |
Design | |
Component for | PC |
LED indicators | Speed, Status |
Product colour | Black |
Features | |
Full duplex | Y |
Keyboard | |
Connectivity technology | Wired |
Logistics data | |
Master (outer) case height | 385 mm |
Master (outer) case length | 325 mm |
Master (outer) case width | 605 mm |
Products per master (outer) case | 80 pc(s) |
Network | |
Auto MDIX IEEE | Y |
Jumbo frames | 9000 |
Jumbo frames support | Y |
Operational conditions | |
Operating relative humidity (H-H) | 5 - 90% |
Operating temperature (T-T) | 0 - 50 °C |
Storage temperature (T-T) | -10 - 70 °C |
Other features | |
Internal | Y |
Packaging content | |
Quick installation guide | Y |
Packaging data | |

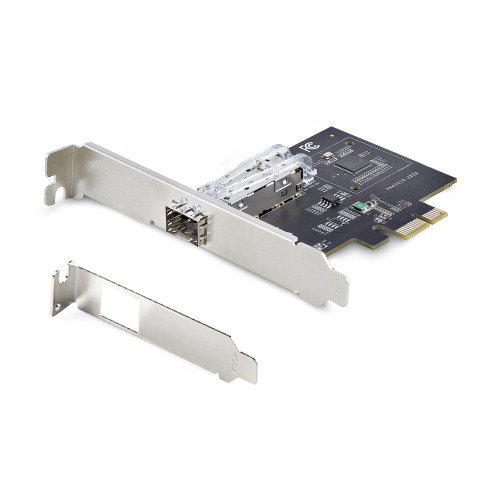

Mounting brackets included | Y |
Performance | |
Fiber optic connector | SFP |
Linux operating systems supported | Y |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
Ports & interfaces | |
Fiber ports quantity | 1 |
Host interface | PCI Express |
Interface | Fiber |
PCI version | 2.1 |
Power | |
Power consumption (typical) | 0.6 W |
Protocols | |
Supported network protocols | IPv4, IPv6, TCP/UDP |
System requirements | |
Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
Technical details | |
Networking standards | IEEE 802.1AX, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3z |
Weight & dimensions | |
Depth | 87 mm |
Height | 16 mm |
Package depth | 142 mm |
Package height | 30 mm |
Package weight | 47.5 g |
Package width | 170 mm |
Weight | 40 g |
Width | 67 mm |

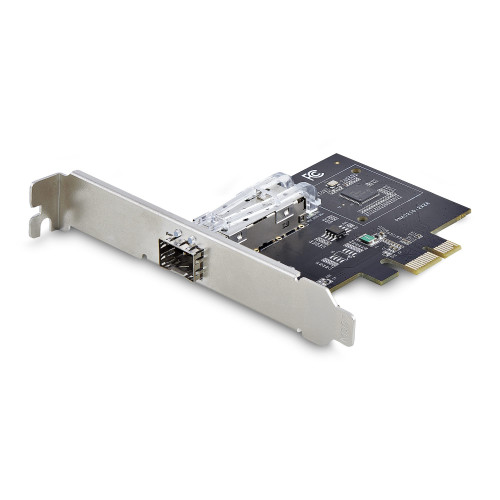

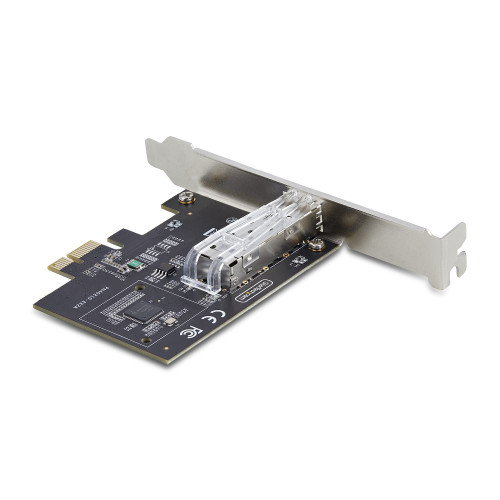

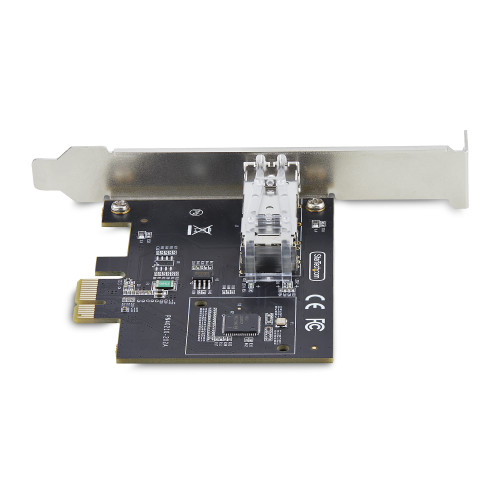

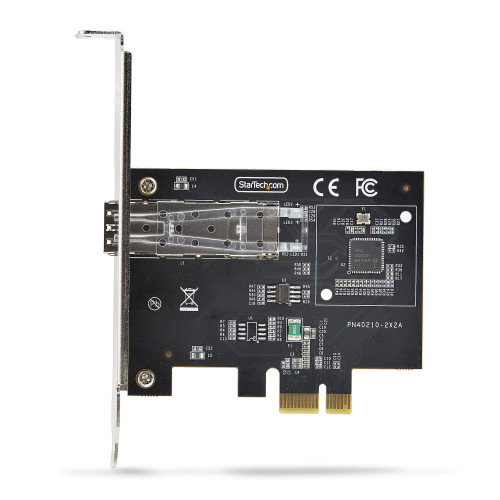

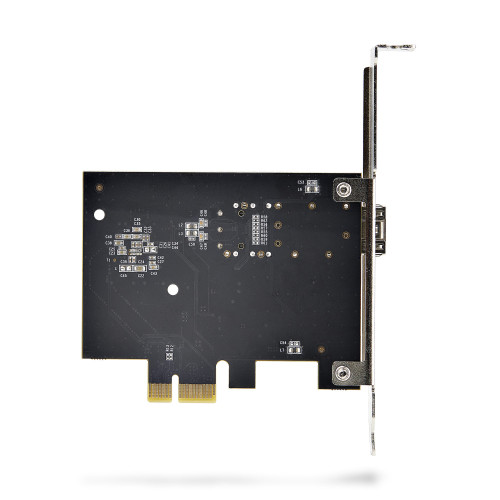

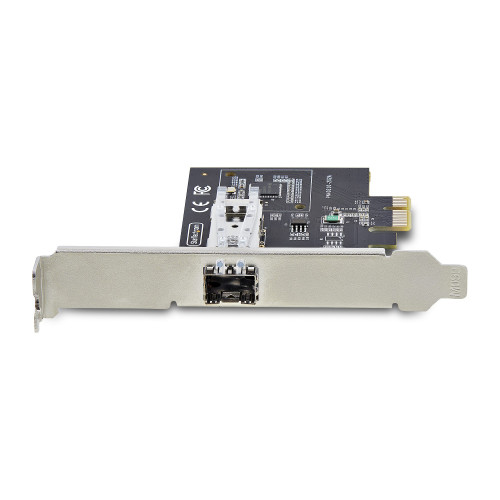

StarTech.com 1-Port GbE SFP Network Card, PCIe 2.1 x1, Intel I210-IS, 1GbE Controller, 1000BASE Copper/Fiber Optic, Single-Port Gigabit Ethernet NIC, Desktop/Server Backplanes - Windows and Linux Compatible
- Brand: StarTech.com
- Product Code: P011GI-NETWORK-CARD
- Availability: In Stock
-
$100.54
