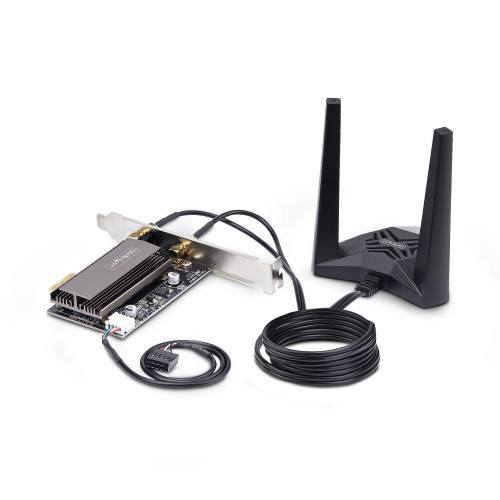

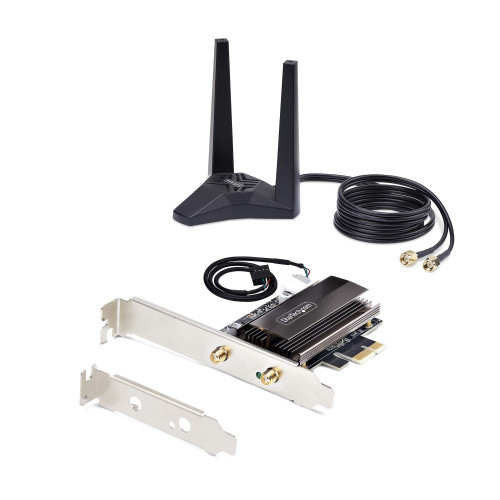

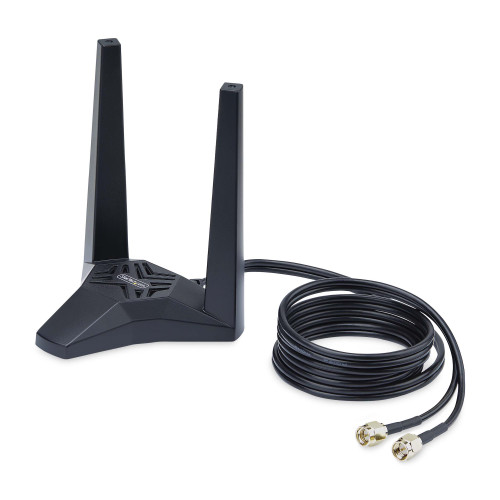

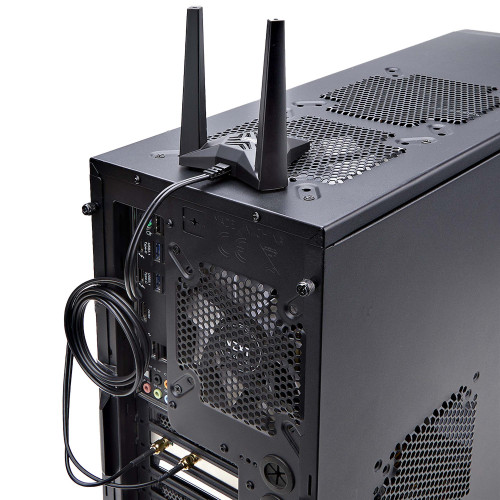

Add 802.11ax Wi-Fi connectivity to a computer or server through a PCI Express slot - with tri-band 6/5/2.4GHz frequenciesThis Wi-Fi 6E Network Card enhances desktop capabilities, enabling high-speed low-latency wireless communication with reduced interference and less congestion in the 6GHz band, with speeds of up to 2400Mbps.Tri-Band WirelessThe PCIe 3.0 Wi-Fi card is backwards compatible with 802.11b/a/g/n/ac standards on both the 5GHz (2400Mbps) and 2.4GHz (574Mbps) bands. It includes a low-profile bracket for small form-factor systems. The Wireless Network Adapter is supported on both Windows* and Linux operating systems.Magnetized Antenna BaseThe antenna base is magnetized and equipped with a 3.6ft attached cable, allowing for flexible antenna placement, optimizing signal reception and minimizing interference. In addition, the base of the antenna is covered in rubber to enhance grip when placed on level non-metallic surfaces.Bluetooth ConnectivityThis card features Bluetooth 5.3, enabling fast data transfers at 2Mbps, and offering an extended range, improved connection stability, and lower power consumption. To enable Bluetooth functionality, connect the 4-Pin IDC to 9-Pin USB Header (Bluetooth Cable - Included) to an available 9-Pin USB Header, located on the motherboard of the Host Computer.Secure and ReliableWPA3 offers secure encryption for Wi-Fi password safety. OFDMA and MU-MIMO features improve network performance, reducing latency and enhancing data transfer efficiency. The all-metal aluminum heatsink dissipates excessive heat to maintain optimal performance.*Windows 10 does not support the 6Ghz bandThe StarTech.com Advantage
Antenna
Antenna design External
Antenna gain level (max) 5 dBi
Audio
Frequency range 2.4 - 6 GHz
Data transmission
Maximum data transfer rate 2400 Mbit/s
Design
Antenna Yes
Component for PC/Laptop
LED indicators Yes
Product colour Black
Features
Cable length 1 m
Full duplex Yes
Keyboard
Connectivity technology Wireless
Logistics data
Master (outer) case height 295 mm
Master (outer) case length 470 mm
Master (outer) case width 560 mm
Products per master (outer) case 30 pc(s)
Network
Bluetooth Yes
Bluetooth Low Energy (BLE) Yes
Bluetooth version 5.3
MU-MIMO Yes
Wi-Fi Yes
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN data transfer rates supported 574,2402 Mbit/s
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -10 - 70 °C
Other features
Internal Yes
Packaging content
Quick installation guide Yes
Packaging data
Mounting brackets included Yes
Performance
Linux operating systems supported Yes
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Ports & interfaces
Host interface PCI
Interface WLAN / Bluetooth
PCI version 3.0
Security
Security algorithms AES, WPA2, WPA3
Sustainability
Sustainability certificates Federal Communications Commission (FCC)
Sustainability compliance Yes
Technical details
Mean time between failures (MTBF) 50000 h
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Weight & dimensions
Depth 120 mm
Height 18 mm
Package depth 150 mm
Package height 136 mm
Package weight 365 g
Package width 107 mm
Weight 200 g
Width 62 mm
Wireless LAN features
Modulation 1024-QAM, OFDMA
Wi-Fi band Tri-band (2.4 GHz / 5 GHz / 6 GHz)

Write a review

Please login or register to review

StarTech.com Wi-Fi 6E PCIe Network Card with Bluetooth 5.3, Magnetic Antenna Base with 3.6ft Cables, Tri-Band 802.11ax, AX5400 WiFi NIC, Windows/Linux - PCI Express Wi-Fi Card for PC

  • Brand: StarTech.com
  • Product Code: PAX2235-WIFI-6E-CARD
  • Availability: In Stock
  • $93.16
