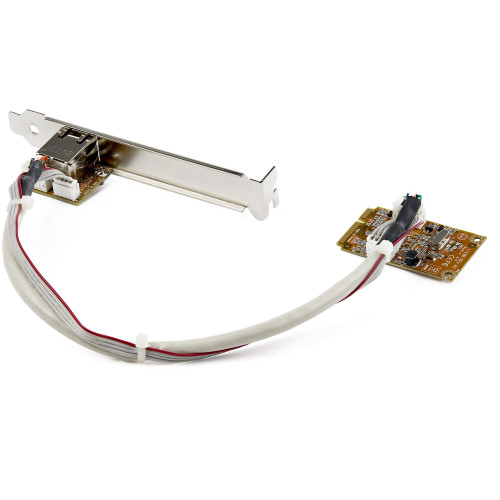

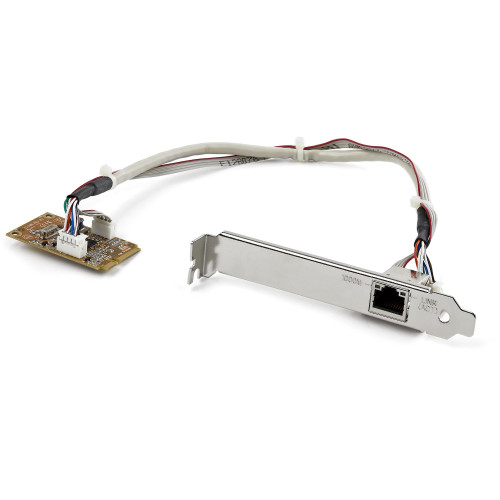

The ST1000SMPEX Mini PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards.
Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-on-LAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios.

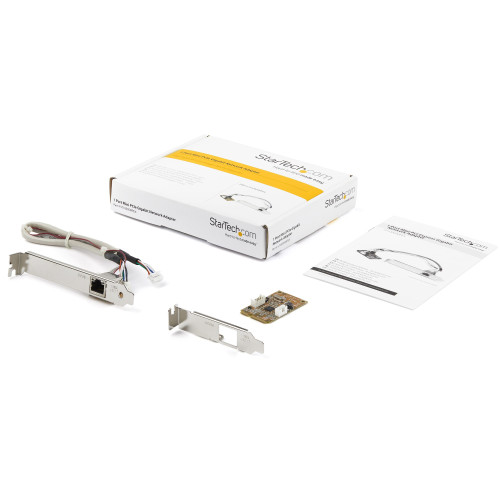

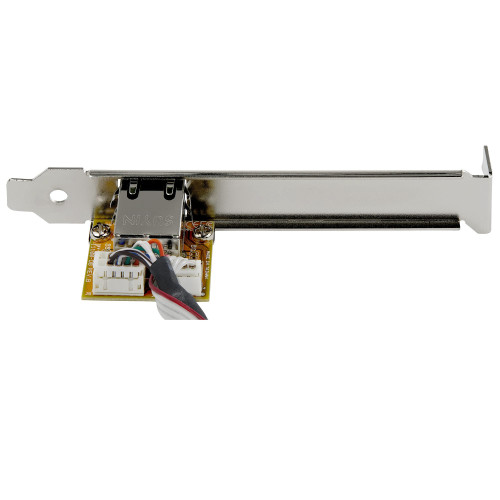

Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height bracket for additional installation options.
The StarTech.com Advantage
- Full length mini PCI Express (PCI Express Mini Card, Mini PCIe) form factor fits in many Mini-ITX or embedded systems
- Built-in NDIS5 Checksum and Large Send Offload support and Jumbo Frames minimize system resource usage
Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-on-LAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios.
Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height bracket for additional installation options.
The StarTech.com Advantage
- Full length mini PCI Express (PCI Express Mini Card, Mini PCIe) form factor fits in many Mini-ITX or embedded systems
- Built-in NDIS5 Checksum and Large Send Offload support and Jumbo Frames minimize system resource usage
| Data transmission | |
| Maximum data transfer rate | 1000 Mbit/s |
| Design | |
| Certification | CE, FCC |
| LED indicators | Activity, Link |
| Features | |

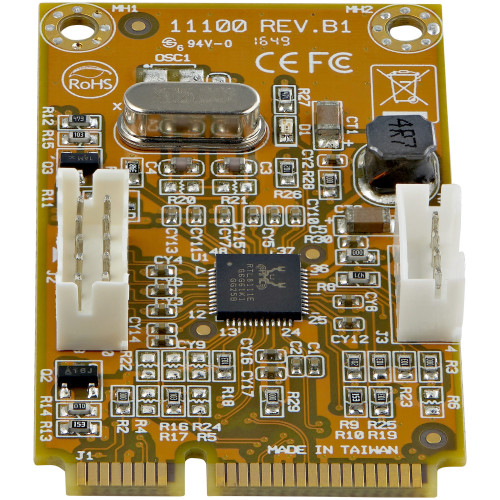

| Chipset | Realtek - RTL8111E |
| Full duplex | Y |
| Quantity | 1 |
| Keyboard | |
| Connectivity technology | Wired |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Network | |
| Auto MDIX IEEE | Y |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Y |
| Jumbo frames | 9000 |
| Jumbo frames support | Y |
| VLAN tagging | Y |
| Wake-on-LAN ready | Y |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Other features | |
| Internal | Y |
| Packaging content | |
| Manual | Y |
| Packaging data | |
| Drivers included | Y |
| Low-profile bracket | Y |
| Performance | |
| Linux operating systems supported | Y |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Host interface | Mini PCI Express |
| Interface | Ethernet |
| Sustainability | |
| Sustainability certificates | RoHS |
| System requirements | |
| Mac operating systems supported | Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Technical details | |
| Mean time between failures (MTBF) | 482765 h |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Weight & dimensions | |
| Depth | 51 mm |
| Height | 8 mm |
| Package depth | 175 mm |
| Package height | 32 mm |
| Package weight | 150 g |
| Package width | 144 mm |
| Weight | 6 g |
| Width | 30 mm |
StarTech.com Mini PCI Express Gigabit Ethernet Network Adapter NIC Card
- Brand: StarTech.com
- Product Code: ST1000SMPEX
- Availability: In Stock
-
$52.28
