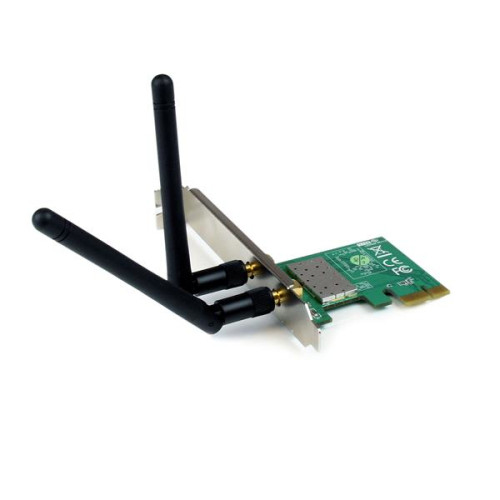

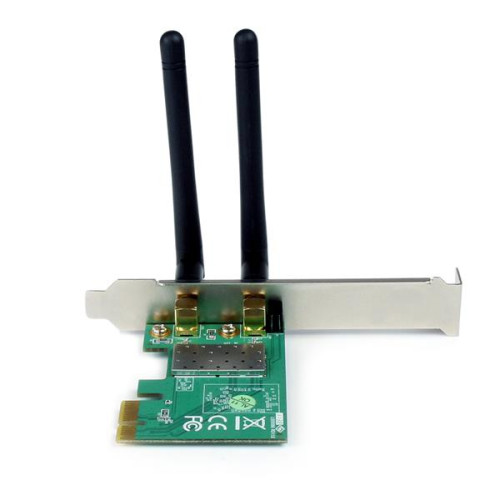

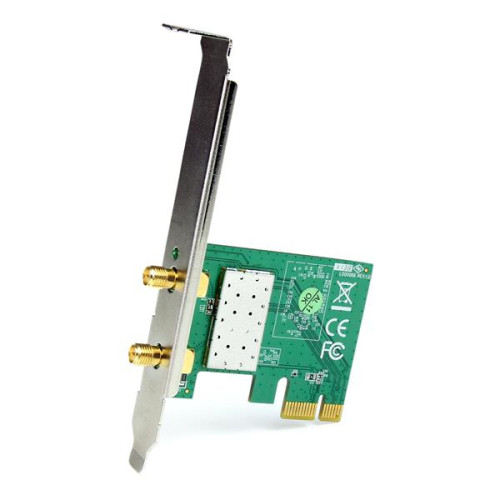

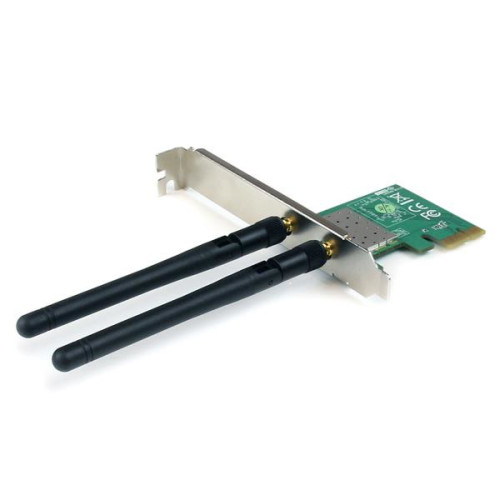

The PEX300WN2X2 PCI Express Wireless N Card (PCIe x1) adds high speed wireless network connectivity to almost any PCI Express-enabled desktop/workstation PC. Using a 2T2R (2 Transmitter/2 Receiver) design over the 2.4GHz frequency, this PCIe wireless card provides up to 300Mbps of data bandwidth over an 802.11n network, while improving signal reception and range.

Backward compatible with 802.11b/g networks (11/54Mbps), this WiFi N adapter offers a versatile wireless networking solution with support for standard and advanced security options such as WEP, WPA and WPA2, along with wireless Quality of Service (QoS) support and quick and easy setup through WPS.

This easy-to-install PCI Express 2.0 card is backed by StarTech.com's 2-year warranty and free lifetime technical support, making for an excellent wireless upgrade or first-time setup option.

The StarTech.com Advantage
- PCI Express 2.0 and 802.11n compliance ensure a fast, reliable wireless-N network connection, while still being able to connect to older wireless b/g networks
- Support for the latest wireless network security protocols and QoS, ensures a safe and efficient network experience

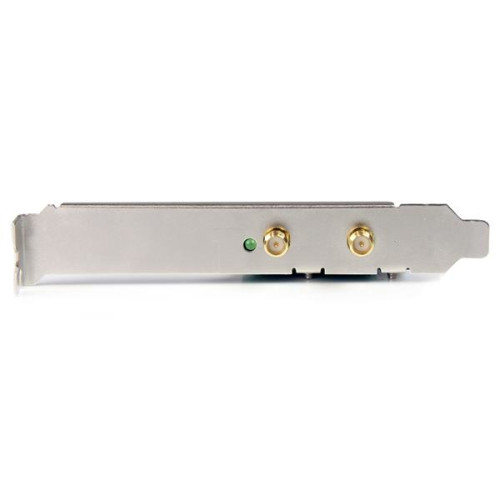

- Includes both a full and low profile/half-height bracket for installation into any sized desktop computer
Antenna
Antenna design External
Antennas quantity 2
Audio
Frequency range 2.4 - 2.484 GHz
Data transmission
Maximum data transfer rate 300 Mbit/s
Design
Antenna Y
Antenna connector type RP-SMA
Certification CE, FCC, REACH, TAA
LED indicators Activity, Link
Features
Chipset Ralink - RT5392
Full duplex Y
Quantity 1
Keyboard
Connectivity technology Wireless
Network
Top Wi-Fi standard Wi-Fi 4 (802.11n)
Wi-Fi Y
Wi-Fi standards Wi-Fi 4 (802.11n)
WLAN data transfer rates supported 300 Mbit/s
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -10 - 70 °C
Storage temperature (T-T) -20 - 70 °C
Other features
Bandwidth note 20/40 MHz
Channel bandwidth 40 MHz
Gain 2.2 dBi
Internal Y

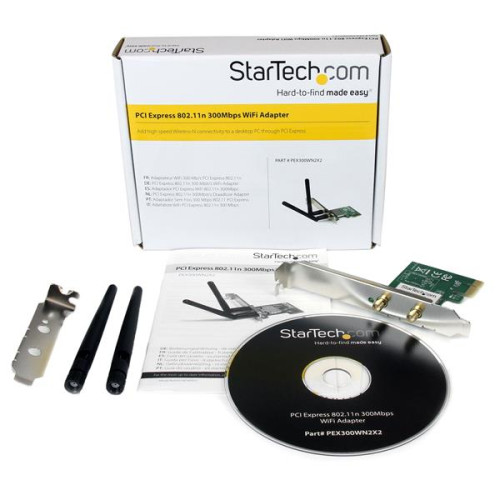

Packaging content
Manual Y
Packaging data
Drivers included Y
Low-profile bracket Y
Mounting brackets included Y
Performance
Linux operating systems supported Y
Windows operating systems supported Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Ports & interfaces
Host interface PCI Express
Interface WLAN
Protocols
Supported network protocols CSMA/CA
Security
Security algorithms AES, TKIP, WEP, WPA, WPA2-PSK
Sustainability
Sustainability certificates RoHS
System requirements
Mac operating systems supported Y
Server operating systems supported Windows Server 2003, Windows Server 2008 R2
Technical details
Networking standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Weight & dimensions
Depth 75 mm
Height 18 mm
Package depth 165 mm
Package height 35 mm
Package weight 158 g
Package width 140 mm
Weight 38 g
Width 49 mm
Wireless LAN features
Modulation CCK, DBPSK, DQPSK, DSSS, OFDM
Wi-Fi band Single-band (2.4 GHz)

Write a review

Please login or register to review

StarTech.com PCI Express Wireless N Adapter - 300 Mbps PCIe 802.11 b/g/n Network Adapter Card – 2T2R 2.2 dBi

  • Brand: StarTech.com
  • Product Code: PEX300WN2X2
  • Availability: In Stock
  • $30.82
