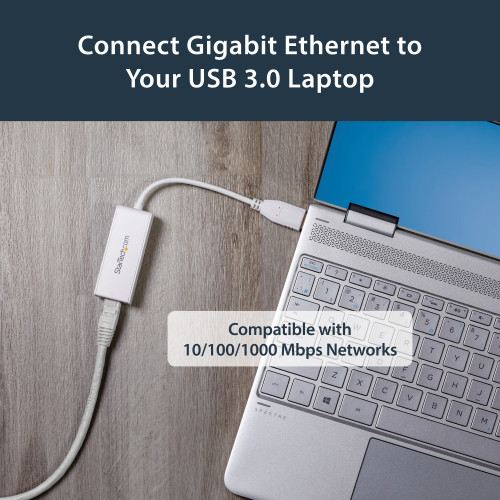

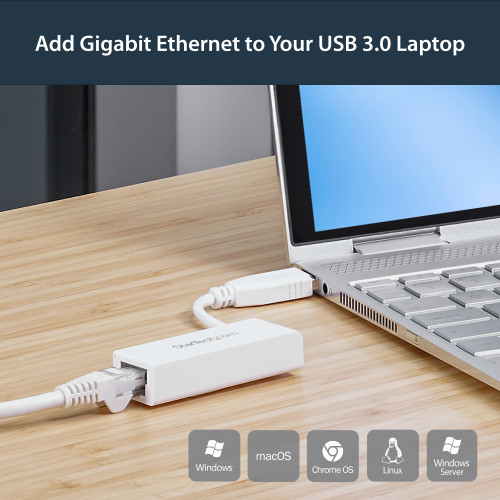

Add Gigabit Ethernet network connectivity to a Laptop or Desktop through a USB 3.0 port

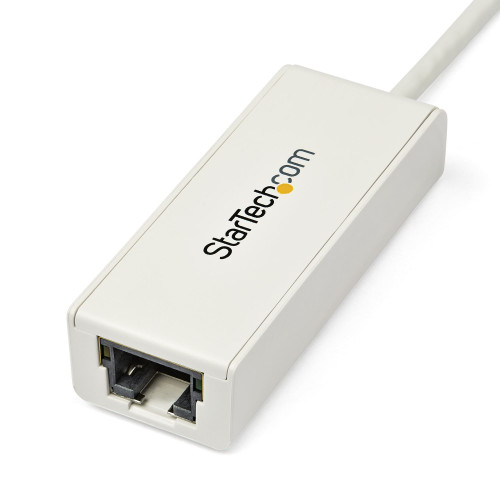

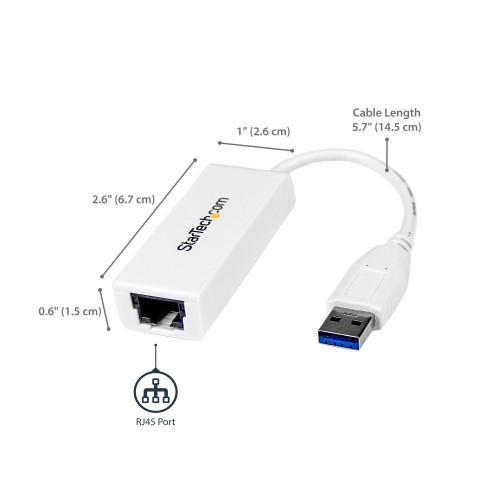

The USB31000SW USB 3.0 to Gigabit Ethernet Adapter adds a single RJ45 Ethernet port to a USB-enabled computer system, with support for Gigabit network connections at full bandwidth when used with a USB 3.0 host connection, unlike USB 2.0 adapters.

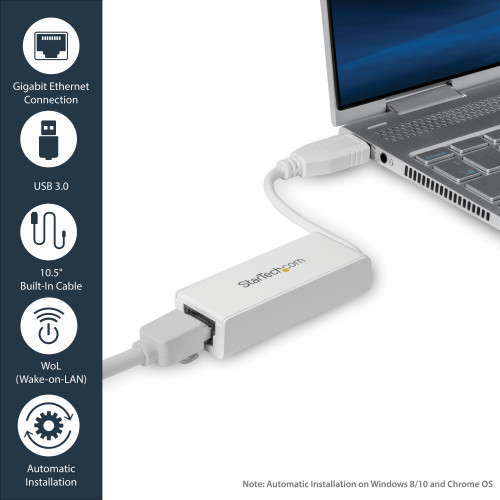

This compact USB 3.0 network adapter is backward compatible with older USB 2.0/1.x computer systems (speed limited by USB bus), making it the ideal portable replacement network adapter or laptop accessory. Plus, with support for features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL), the adapter offers versatile Gigabit network performance for home and business users alike.
The USB31000SW USB 3.0 Gigabit adapter is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Full Gigabit bandwidth support, through a USB 3.0 host connection
- Highly portable design, with no need for an external power adapter
- Added flexibility near the RJ45 port through Dongle-style design
The USB31000SW USB 3.0 to Gigabit Ethernet Adapter adds a single RJ45 Ethernet port to a USB-enabled computer system, with support for Gigabit network connections at full bandwidth when used with a USB 3.0 host connection, unlike USB 2.0 adapters.
This compact USB 3.0 network adapter is backward compatible with older USB 2.0/1.x computer systems (speed limited by USB bus), making it the ideal portable replacement network adapter or laptop accessory. Plus, with support for features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL), the adapter offers versatile Gigabit network performance for home and business users alike.
The USB31000SW USB 3.0 Gigabit adapter is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Full Gigabit bandwidth support, through a USB 3.0 host connection
- Highly portable design, with no need for an external power adapter
- Added flexibility near the RJ45 port through Dongle-style design
| Data transmission | |
| Maximum data transfer rate | 5000 Mbit/s |
| Design | |
| Component for | PC/notebook |
| Housing material | Plastic |
| LED indicators | Y |
| Product colour | White |
| Features | |
| Chipset | ASIX - AX88179 |
| Full duplex | Y |
| Maximum operating distance | 100 m |
| Keyboard | |
| Connectivity technology | Wired |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 167 mm |
| Master (outer) case length | 351 mm |
| Master (outer) case width | 457 mm |
| Products per master (outer) case | 20 pc(s) |
| Network | |
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Jumbo frames | 4000 |
| Jumbo frames support | Y |
| VLAN tagging | Y |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| Internal | N |

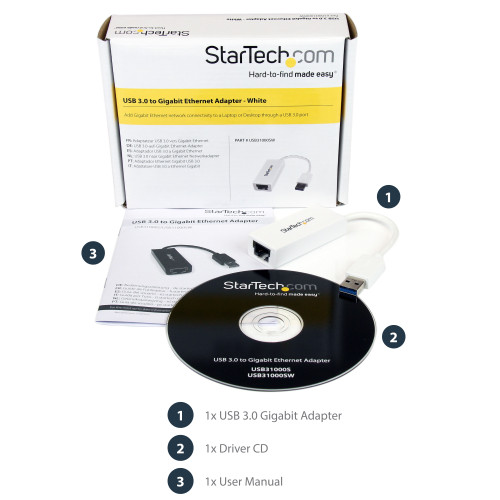

| Packaging content | |
| Manual | Y |
| Packaging data | |
| Drivers included | Y |
| Performance | |
| Compatible operating systems | Windows XP(32/64-bit)/ Server 2003(32/64-bit)/ Server 2008 R2/ Vista(32/64-bit)/ 7(32/64-bit)/ 8(32/64-bit) Mac OS 10.6/ 10.7/ 10.8 |
| Linux operating systems supported | Y |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Ports & interfaces | |

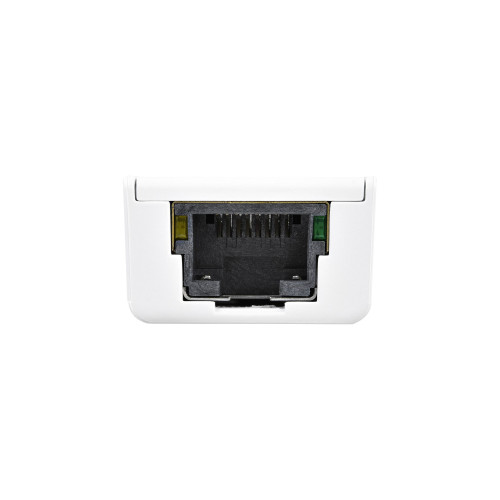

| Ethernet LAN (RJ-45) ports | 1 |

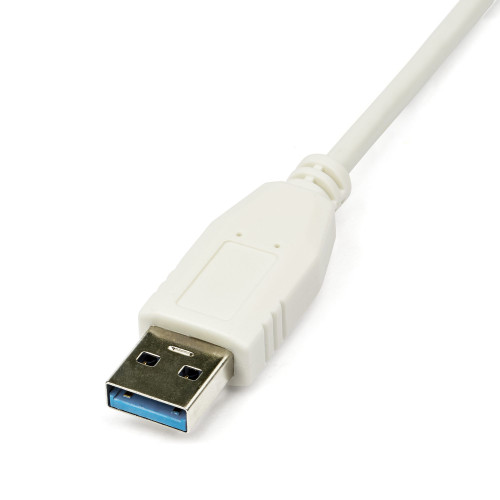

| Host interface | USB |
| Interface | Ethernet |
| Sustainability | |
| Sustainability certificates | CE, RoHS |
| Sustainability compliance | Y |
| System requirements | |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Technical details | |
| Networking standards | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u |
| Weight & dimensions | |
| Depth | 210 mm |
| Height | 16 mm |
| Package depth | 133 mm |
| Package height | 45 mm |
| Package weight | 119 g |
| Package width | 162 mm |
| Weight | 27 g |
| Width | 26 mm |

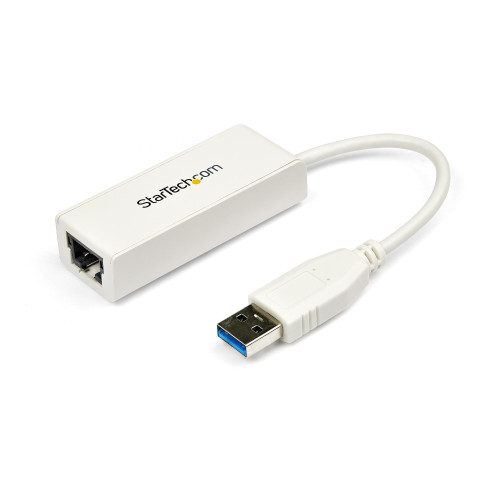

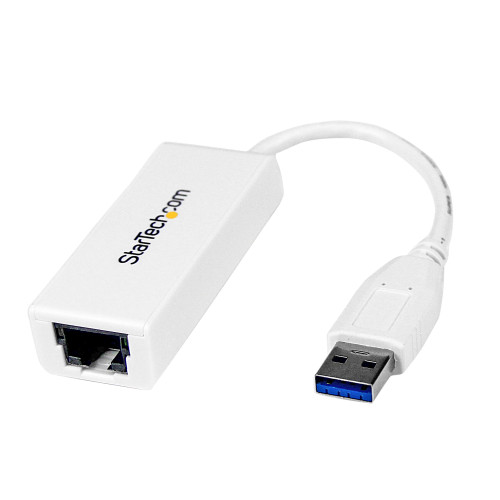

StarTech.com USB 3.0 to Gigabit Ethernet NIC Network Adapter - White
- Brand: StarTech.com
- Product Code: USB31000SW
- Availability: In Stock
-
$26.45
