Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot

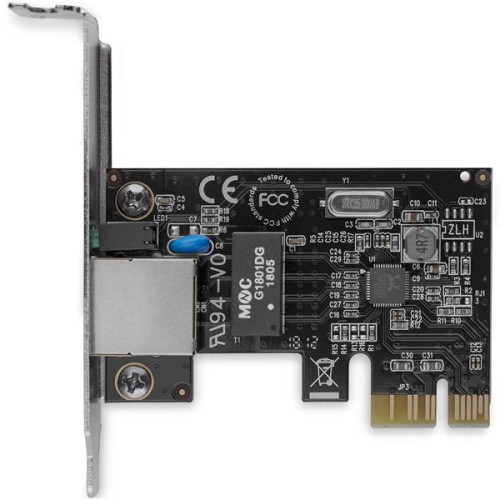

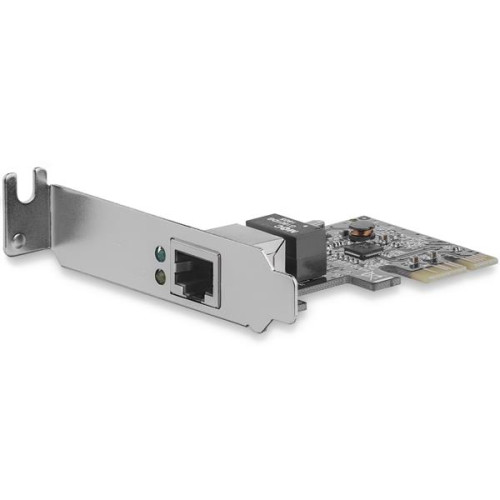

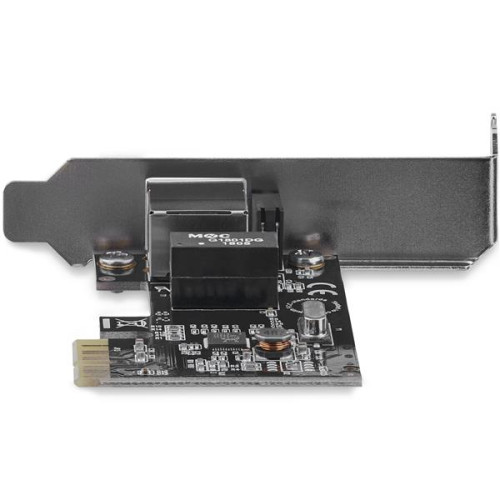

The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.

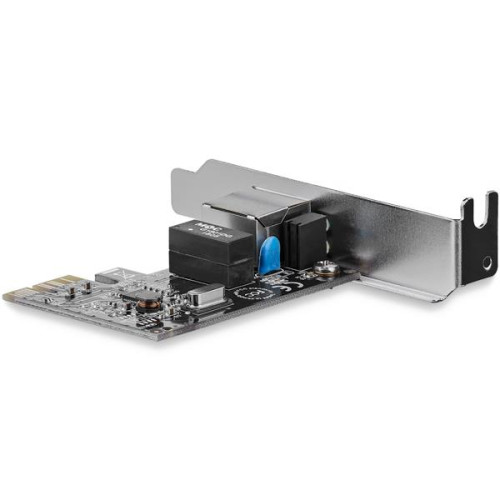

The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.
Backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
- Saves the time of having to adjust the mounting bracket, with a pre-configured half-height/low-profile bracket
The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.
The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.
Backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
- Saves the time of having to adjust the mounting bracket, with a pre-configured half-height/low-profile bracket
| Data transmission | |
| Maximum data transfer rate | 1000 Mbit/s |
| Design | |
| Certification | CE, FCC, REACH |

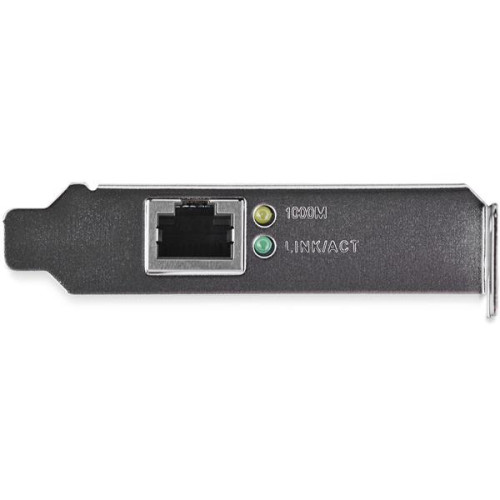

| LED indicators | Activity, Link |
| Features | |
| Chipset | Realtek - RTL8111H |
| Full duplex | Y |
| Power LED | Y |
| Indication | |
| Link/Act LED | Y |
| Keyboard | |
| Connectivity technology | Wired |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Network | |
| Auto MDIX IEEE | Y |
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Jumbo frames | 9000 |
| Jumbo frames support | Y |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | 0 - 100 °C |
| Other features | |
| Internal | Y |
| Packaging content | |
| Manual | Y |
| Performance | |
| Linux operating systems supported | Y |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Ports & interfaces | |
| Host interface | PCI Express |
| Interface | Ethernet |
| Protocols | |
| Supported network protocols | CSMA/CD |
| Sustainability | |
| Sustainability certificates | RoHS |
| System requirements | |
| Mac operating systems supported | Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Technical details | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Weight & dimensions | |
| Depth | 70 mm |
| Height | 49 mm |
| Package depth | 144 mm |
| Package height | 31 mm |
| Package weight | 125 g |
| Package width | 173 mm |
| Weight | 27 g |
| Width | 18 mm |
StarTech.com 1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile
- Brand: StarTech.com
- Product Code: ST1000SPEX2L
- Availability: In Stock
-
$25.23
