Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
| Data transmission | |
| Maximum data transfer rate | 1000 Mbit/s |
| Design | |
| Component for | Server |
| LED indicators | LAN |
| Product codename | Powerville |
| Product colour | Green, Silver |
| Product family | Intel Gigabit server adapter |
| Product type | Network Interface Card |
| Status | Launched |
| Features | |
| Cable type | Cat 5 up to 100m |
| Chipset | Intel® I350 |
| Full duplex | Y |
| Market segment | Server |
| Maximum operating distance | 100 m |
| Keyboard | |
| Connectivity technology | Wired |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Network | |
| Cabling technology | 10/100/1000BaseT(X) |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel® I350 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage relative humidity (H-H) | 35 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Other features | |
| Born on date | Q3'14 |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |
| Controller type | Intel I350 |
| Ethernet adapter ARK ID | 84805 |
| Fiber Channel over Ethernet | N |
| Intel Data Direct I/O Technology | N |
| Intel Ethernet Power Management | Y |
| Intel Flexible Port Partitioning | Y |
| Intel Virtual Machine Device Queues (VMDq) | Y |
| Intel Virtualization Technology for Connectivity (VT-c) | Y |
| Intelligent Offloads | Y |
| Internal | Y |
| iWARP/RDMA | N |
| Last change | 63903513 |
| Launch date | Q3'14 |
| Low halogen options available | N |
| Message signal interrupt | N |
| Network interface card cable medium | Copper |
| Network interface card type | Server |
| Number of QPI links | Quad |
| On-chip QoS and Traffic Management | Y |
| PCI Card form factor | Half-height (low-profile) |
| PCI-SIG* SR-IOV Capable | Y |
| Product brief URL | http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350 |
| Product name | Intel Ethernet Server Adapter I350-T4V2 |
| Product series | Intel® I350 |
| Speed & slot width | 5.0 GT/s, x4 Lane |
| Storage Over Ethernet | iSCSI, NFS |
| Storage-over-ethernet | Y |
| Thermal power | 5 W |
| Performance | |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Compatible operating systems | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
| Export Control Classification Number (ECCN) | 5A991 |
| Interface type | PCIe v2.1 (5.0 GT/s) |
| Linux operating systems supported | RedHat EL Linux 5.0, RedHat EL Linux 6.0, SuSE Linux 10, SuSE Linux 11 |
| Ports & interfaces | |
| Cabling type | Cat 5 up to 100m |
| Ethernet LAN (RJ-45) ports | 4 |
| Host interface | PCI Express |
| Interface | Ethernet |
| PCI version | 2.1 |
| Power | |
| Power consumption (typical) | 5 W |
| Processor | |
| Processor family | Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) |
| Thermal Design Power (TDP) | 5 W |
| Processor special features | |
| Embedded options available | N |
| Intel Trusted Execution Technology | N |
| Protocols | |
| Supported network protocols | TCP, UDP, IP |
| System requirements | |
| Server operating systems supported | Windows Server 2003 R2, Windows Server 2008 R2 |
| Technical details | |
| Networking standards | IEEE 802.1as, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Weight & dimensions | |
| Depth | 135.4 mm |
| Height | 120 mm |
| Width | 68.9 mm |

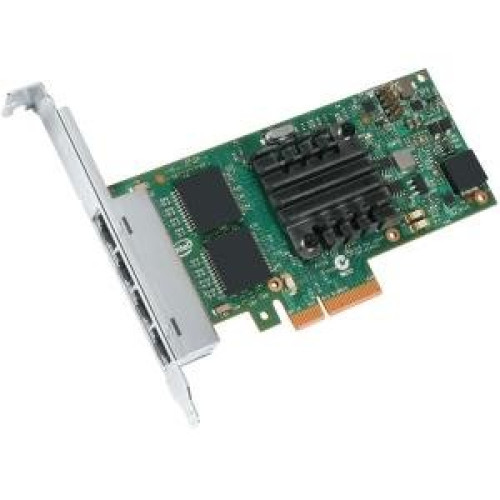

Intel I350T4V2 network card Internal Ethernet 1000 Mbit/s
- Brand: Intel
- Product Code: I350T4V2
- Availability: In Stock
-
$155.06
