The Intel Ethernet Connection X722 is a network controller embedded into the Intel C624 "Lewisburg" PCH chipset of Lenovo ThinkSystem servers. The controller connects to available 10 GbE and 1 Gigabit Ethernet LAN-on-motherboard (LOM) adapter cards and onboard connectors to provide a comprehensive 1 GbE / 10 GbE networking solution for ThinkSystem customers.
ThinkSystem servers support either 10 Gb Ethernet copper or optical connections, or Gigabit Ethernet connections depending on the server model.
The following figure shows the ThinkSystem 10Gb 4-port SFP+ LOM adapter which provides four SFP+ cages for optical or direct-attach copper (DAC) connectivity.
ThinkSystem servers support either 10 Gb Ethernet copper or optical connections, or Gigabit Ethernet connections depending on the server model.
The following figure shows the ThinkSystem 10Gb 4-port SFP+ LOM adapter which provides four SFP+ cages for optical or direct-attach copper (DAC) connectivity.
| Data transmission | |
| Maximum data transfer rate | 1000 Mbit/s |
| Design | |
| Certification | UL recognized to UL60950-1 2nd Edition FCC Rules, Part 15, Class A Australian EMC Framework (RCM) Japan VCCI, Class A Industry Canada, ICES-003, Class A EU (CE Mark) Korea KC-RRA, Class A |
| Product colour | Green |
| Features | |
| Chipset | Intel® C624 |
| Keyboard | |
| Connectivity technology | Wired |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Quality of Service (QoS) support | Y |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Y |
| Jumbo frames | 9728 |
| Jumbo frames support | Y |
| VLAN tagging | Y |
| Other features | |
| Compatible products | SR630 SR650 SR850 SR860 SR950 |
| Internal | Y |
| Number of VLANs | 4096 |
| PCI-SIG* SR-IOV Capable | Y |
| Receive Side Scaling (RSS) | Y |
| Performance | |
| Linux operating systems supported | Red Hat Enterprise Linux WS 6.0, Red Hat Enterprise Linux WS 7.0, openSUSE 11.3, openSUSE 11.4, openSUSE 12.1, openSUSE 12.2 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| Host interface | PCI Express |
| Interface | Ethernet |
| Security | |
| Security algorithms | SNMP |
| Sustainability | |
| Sustainability certificates | RoHS |
| System requirements | |
| Other operating systems supported | VMware vSphere ESXi |
| Server operating systems supported | Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2016 |
| Technical details | |
| Networking standards | IEEE 802.1Q, IEEE 802.1Qbg, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3x |

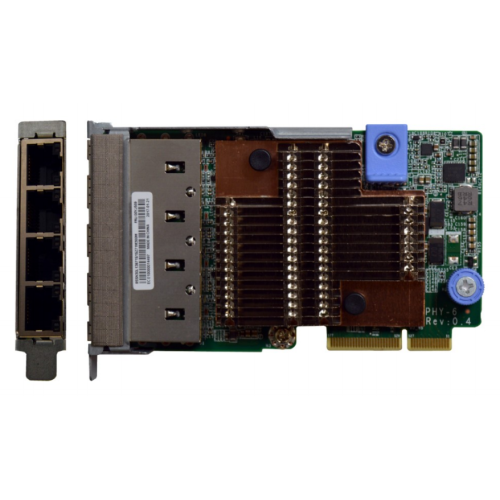

Lenovo X722 Internal Ethernet 1000 Mbit/s
- Brand: Lenovo
- Product Code: 7ZT7A00545
- Availability: In Stock
-
$97.62
