75W AC power supply provides primary or redundant power to your media converter installation.
Powers Your Tripp Lite N785-CH12 12-Port Media Converter Chassis
This 75-watt AC power supply works with the Tripp Lite N785-CH12 media converter chassis to provide redundant power that helps prevent unwanted and expensive downtime. One N785-CH75W-AC comes pre-installed with the N785-CH12 to provide primary power. An additional power supply is also recommended as a replacement part.
Powers Your Tripp Lite N785-CH12 12-Port Media Converter Chassis
This 75-watt AC power supply works with the Tripp Lite N785-CH12 media converter chassis to provide redundant power that helps prevent unwanted and expensive downtime. One N785-CH75W-AC comes pre-installed with the N785-CH12 to provide primary power. An additional power supply is also recommended as a replacement part.
Design | |
Country of origin | Taiwan |
LED indicators | Y |
On/off switch | Y |
Product colour | Black |
Features | |
Purpose | Server |
Logistics data | |
Harmonized System (HS) code | 8517.62.0090 |
Master (outer) case gross weight | 14 kg |
Master (outer) case GTIN (EAN/UPC) | 10037332267068 |
Master (outer) case height | 365 mm |
Master (outer) case length | 500.1 mm |
Master (outer) case width | 389.9 mm |
Products per master (outer) case | 8 pc(s) |
Operational conditions | |
Operating relative humidity (H-H) | 20 - 90% |
Operating temperature (T-T) | 0 - 50 °C |
Storage relative humidity (H-H) | 20 - 90% |
Storage temperature (T-T) | -20 - 85 °C |
Performance | |
Power supply unit (PSU) form factor | 3U |
Power | |
80 PLUS certification | No |
AC input frequency | 50 - 60 Hz |
AC input voltage | 90 - 240 V |
Input current | 2 A |
Total power | 75 W |
Sustainability | |
Sustainability certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
Sustainability compliance | Y |
Weight & dimensions | |
Depth | 230 mm |
Height | 133 mm |
Package depth | 264.9 mm |
Package height | 86.1 mm |
Package type | Box |
Package weight | 1.7 kg |
Package width | 235 mm |
Width | 59 mm |

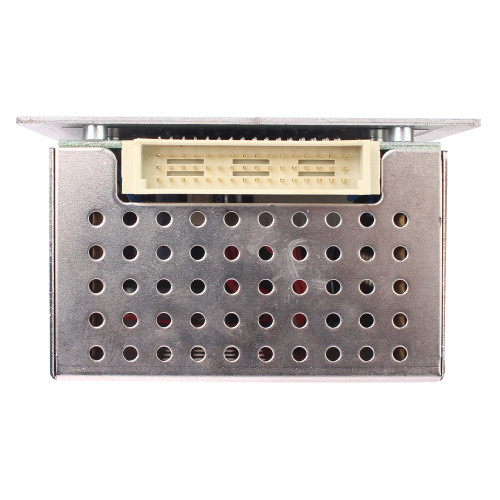

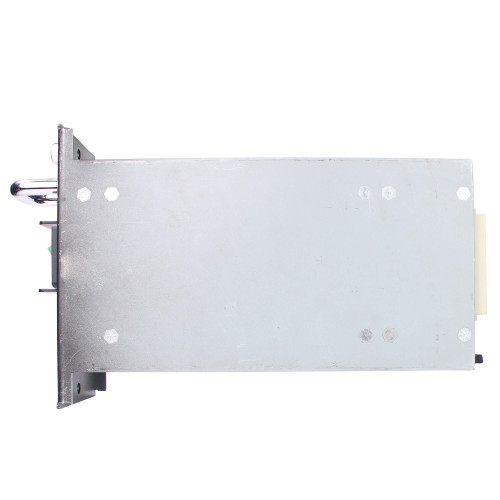

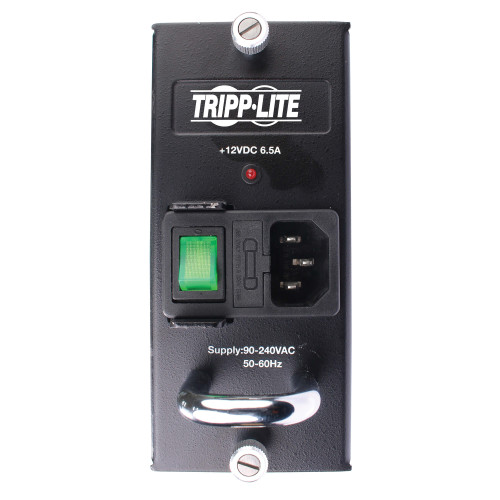

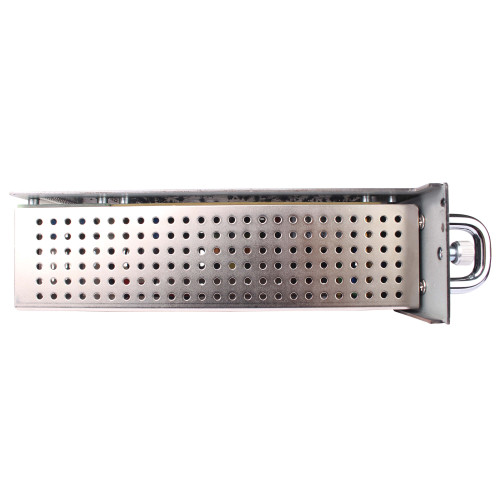

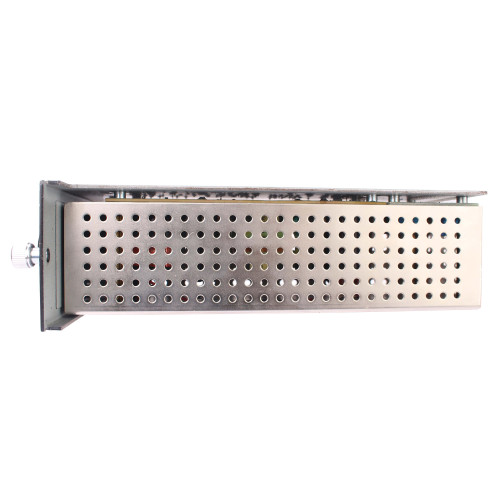

Tripp Lite AC Power Supply for N785-CH12 Media Converter Chassis, 75W
- Brand: Tripp-Lite
- Product Code: N785-CH75W-AC
- Availability: In Stock
-
$134.40
