Audio
Audio system
HD
Built-in microphone
Y
Built-in speaker(s)
Y
RMS rated power
12 W
Camera
Built-in camera
N
Design
Certification
TÜV Rheinland Ultra Low Noise
Product colour
Black
Product type
All-in-One PC
Display
Anti-glare screen
Y
Display brightness
320 cd/m²
Display diagonal
25.6 cm (10.1")
Display resolution
1920 x 1200 pixels
HD type
Full HD
Native aspect ratio
16:10
Panel type
WVA
Touchscreen
Y
Graphics
Discrete graphics card
N
Discrete graphics card model
Not available
On-board graphics card
Y
On-board graphics card family
Intel® UHD Graphics
On-board graphics card model
Intel® UHD Graphics
Memory
Internal memory
8 GB
Internal memory type
DDR4-SDRAM
Maximum internal memory
16 GB
Memory clock speed
2400 MHz
Memory form factor
On-board
Memory layout (slots x size)
1 x 8 GB
Memory slots type
DIMM
Network
Antenna type
2x2
Bluetooth
Y
Bluetooth version
5.0
Ethernet LAN
Y
Ethernet LAN data rates
100,1000 Mbit/s
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Wi-Fi
Y
Wi-Fi standards
Wi-Fi 5 (802.11ac)
WLAN controller manufacturer
Intel
WLAN controller model
Intel Dual Band Wireless-AC 9560
Packaging content
Keyboard included
N
Mouse included
N
Performance
BIOS password
Y
HDD user password
Y
Number of speakers
4
Ports & interfaces
DC-in jack
Y
DisplayPorts quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Power
AC adapter power
90 W
Processor
Configurable TDP-down
10 W
Configurable TDP-down frequency
0.8 GHz
Configurable TDP-up
25 W
Configurable TDP-up frequency
1.9 GHz
Processor boost frequency
4.1 GHz
Processor cache
6 MB
Processor cache type
Smart Cache
Processor cores
4
Processor family
Intel® Core™ i5
Processor frequency
1.6 GHz
Processor generation
8th gen Intel® Core™ i5
Processor manufacturer
Intel
Processor model
i5-8365U
Processor special features
CPU configuration (max)
1
Embedded options available
N
Enhanced Intel SpeedStep Technology
Y
Execute Disable Bit
Y
Idle States
Y
Intel 64
Y
Intel Clear Video Technology
Y
Intel Flex Memory Access
Y
Intel Software Guard Extensions (Intel SGX)
Y
Intel Stable Image Platform Program (SIPP)
Y
Intel Trusted Execution Technology
Y
Intel TSX-NI
Y
Intel Virtualization Technology (VT-x)
Y
Intel Virtualization Technology for Directed I/O (VT-d)
Y
Intel VT-x with Extended Page Tables (EPT)
Y
Security
Cable lock slot
Y
Cable lock slot type
Kensington
Trusted Platform Module (TPM)
Y
Trusted Platform Module (TPM) version
2.0
Software
Operating system architecture
64-bit
Operating system installed
Windows 10 IoT Enterprise
Operating system language
English
Storage
Card reader integrated
N
Number of SSDs installed
1
Number of storage drives installed
1
NVMe
Y
Optical drive type
N
SSD capacity
256 GB
SSD form factor
M.2
SSD interface
PCI Express 3.0
Storage media
SSD
Total SSDs capacity
256 GB
Total storage capacity
256 GB
Sustainability
Sustainability certificates
RoHS
Weight & dimensions
Depth (with stand)
200 mm
Height (with stand)
185.3 mm
Weight (with stand)
2.45 kg
Width (with stand)
240 mm

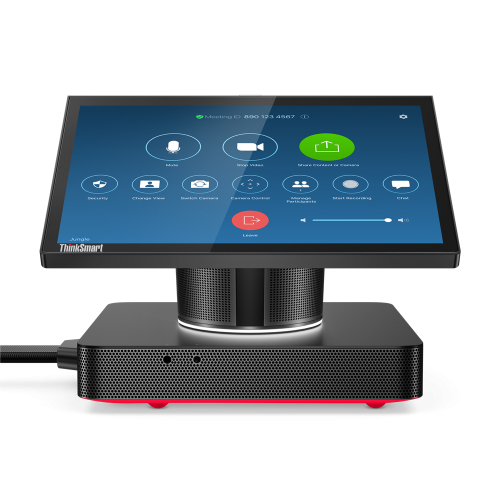

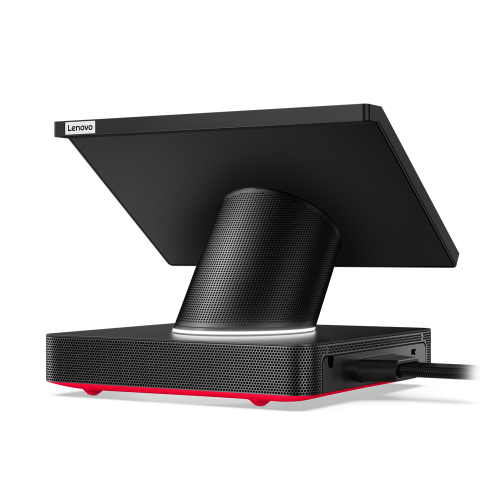

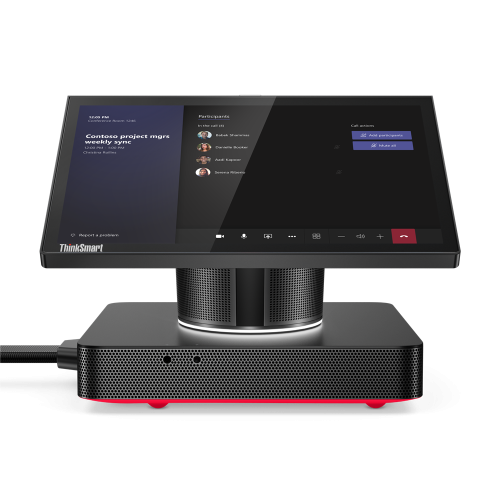

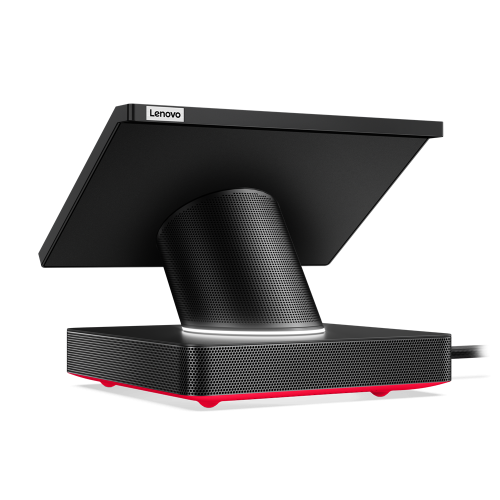

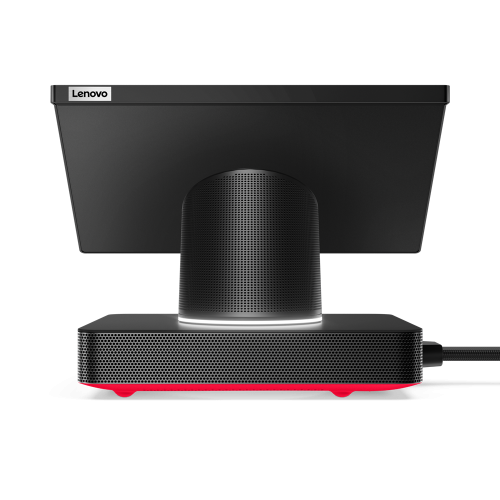

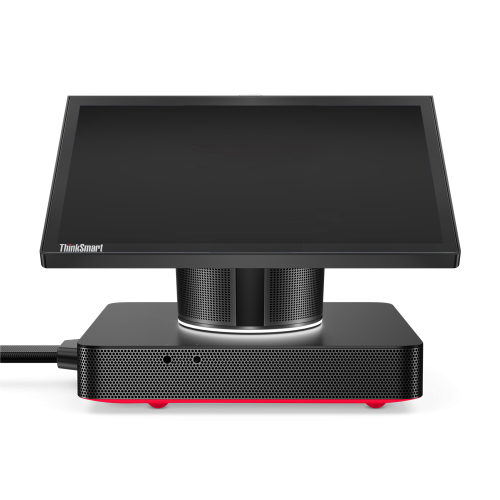

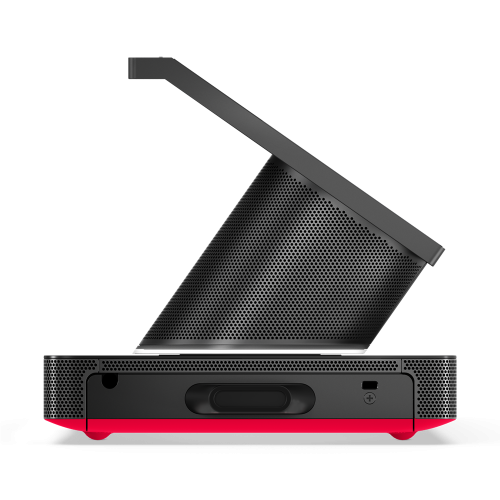

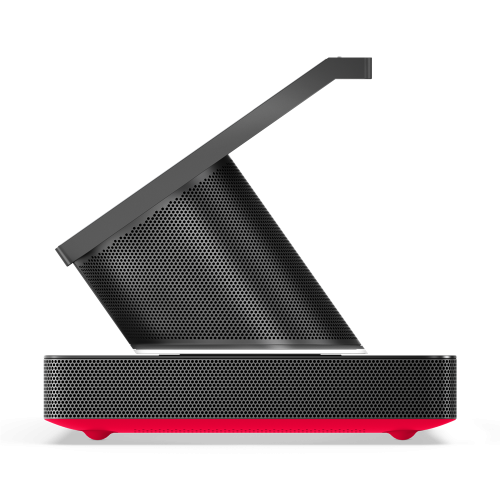

Lenovo ThinkSmart Hub Intel® Core™ i5 25.6 cm (10.1") 1920 x 1200 pixels Touchscreen 8 GB DDR4-SDRAM 256 GB SSD All-in-One PC Windows 10 IoT Enterprise Wi-Fi 5 (802.11ac) Black
Brand: Lenovo
Product Code: 11H10006US
Availability: In Stock
Specs: Icecat
