Audio
Audio chip
Realtek ALC256-VB
Built-in speaker(s)
Yes
Design
Certification
EPEAT Gold Registered
ENERGY STAR 8.0
ErP Lot 3
TCO Certified 9.0
RoHS compliant
MIL-STD-810H
Chassis type
Mini PC
Placement supported
Horizontal/Vertical
Product colour
Black
Product type
Mini PC
Volume
1 L
Graphics
Discrete GPU manufacturer
NVIDIA
Discrete graphics card
Yes
Discrete graphics card memory
4 GB
Discrete graphics card model
NVIDIA T400
Discrete graphics memory type
GDDR6
Graphics card Mini DisplayPort ports quantity
3
Number of discrete graphics cards
1
On-board graphics card
Yes
On-board graphics card family
Intel® UHD Graphics
On-board graphics card model
Intel UHD Graphics 770
Memory
Internal memory
16 GB
Internal memory type
DDR5-SDRAM
Maximum internal memory
64 GB
Memory channels
Dual-channel
Memory clock speed
4800 MHz
Memory layout (slots x size)
1 x 16 GB
Memory slots
2x SO-DIMM
Non-ECC
Yes
Network
Antenna type
2x2
Bluetooth
Yes
Bluetooth version
5.1
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
LAN controller
Intel® I219-LM
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 6E (802.11ax)
WLAN controller manufacturer
Intel
WLAN controller model
Intel Wi-Fi 6E AX211
Operational conditions
Non-operating altitude
0 - 12192 m
Operating altitude
0 - 3048 m
Operating relative humidity (H-H)
20 - 80%
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 60 °C
Packaging content
Display included
No
Keyboard included
Yes
Mouse included
Yes
Performance
Motherboard chipset
Intel Q670
Number of speakers
1
Ports & interfaces
Combo headphone/mic port
Yes
DisplayPort version
1.4
DisplayPorts quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Power
Power supply
230 W
Power supply input voltage
100 - 240 V
Processor
Bus type
DMI4
Efficient cores
8
Efficient-core base frequency
1.2 GHz
Efficient-core Max Turbo Frequency
3.2 GHz
Maximum turbo power
92 W
Number of processors installed
1
Performance cores
6
Performance-core base frequency
1.6 GHz
Performance-core Max Turbo Frequency
4.6 GHz
Processor base power
35 W
Processor boost frequency
4.6 GHz
Processor cache
24 MB
Processor cache type
Smart Cache
Processor cores
14
Processor family
Intel® Core™ i5
Processor generation
13th gen Intel® Core™ i5
Processor manufacturer
Intel
Processor model
i5-13500T
Processor threads
20
Processor special features
CPU configuration (max)
1
Security
Cable lock slot
Yes
Cable lock slot type
Kensington
Password protection
Yes
Password protection type
BIOS, Power on, Supervisor
Trusted Platform Module (TPM)
Yes
Software
Operating system architecture
64-bit
Operating system installed
Windows 11 Pro
Operating system language
English
Storage
Card reader integrated
No
Number of SSDs installed
1
Number of storage drives installed
1
NVMe
Yes
Optical drive type
No
SSD capacity
512 GB
SSD form factor
M.2
SSD interface
PCI Express 4.0
Storage media
SSD
Total SSDs capacity
512 GB
Total storage capacity
512 GB
Weight & dimensions
Depth
182.9 mm
Height
37 mm
Weight
1.4 kg
Width
179 mm

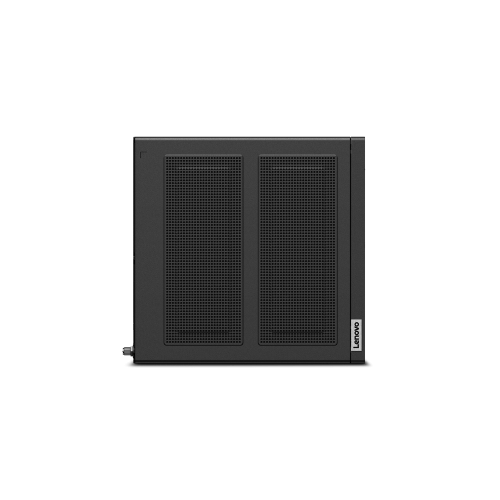

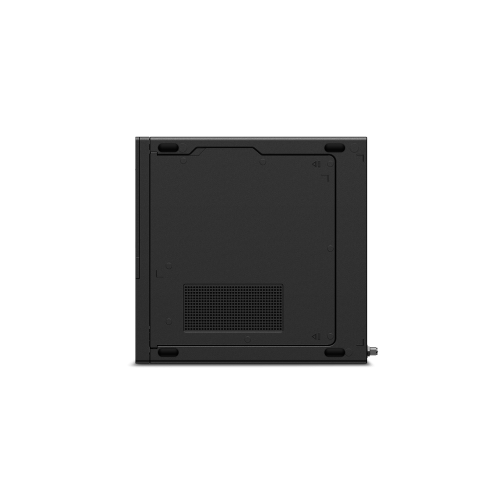

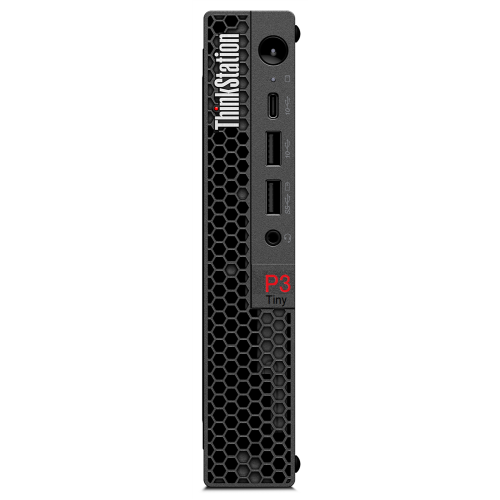

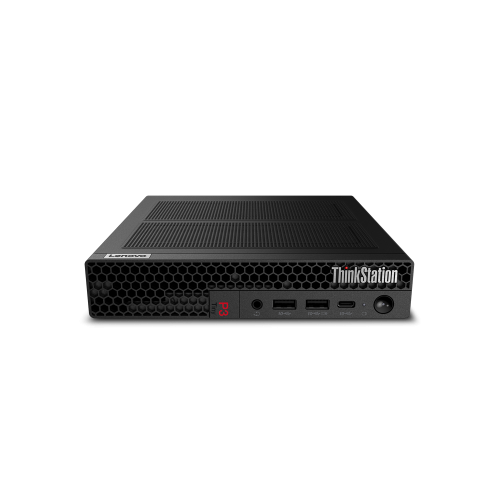

Lenovo ThinkStation P3 Mini PC Intel® Core™ i5 i5-13500T 16 GB DDR5-SDRAM 512 GB SSD NVIDIA T400 Windows 11 Pro Black
Brand: Lenovo
Product Code: 30H00012US
Availability: In Stock
Specs: Icecat
