Audio
Built-in speaker(s)
No
Design
Chassis type
Mini PC
Cooling type
Active
Housing material
Plastic
Panel mounting interface
100 x 100 mm
Product colour
Black
Product type
Mini PC
VESA mounting
Yes
Expansion slots
Number of M.2 (M) slots
2
Graphics
Discrete graphics card
No
Discrete graphics card model
Not available
Graphics card family
Intel
Number of displays supported
4
On-board GPU manufacturer
Intel
On-board graphics card
Yes
On-board graphics card family
Intel Graphics
On-board graphics card model
Intel Graphics
Memory
Internal memory
8 GB
Internal memory type
DDR5-SDRAM
Maximum internal memory
64 GB
Memory clock speed
5200 MHz
Memory layout (slots x size)
1 x 8 GB
Memory slots
2x SO-DIMM
Supported memory types
DDR5-SDRAM
Network
Bluetooth
Yes
Bluetooth version
5.3
Ethernet LAN
Yes
LAN controller
Intel I226-V
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Operational conditions
Operating relative humidity (H-H)
0 - 85%
Operating temperature (T-T)
0 - 35 °C
Storage relative humidity (H-H)
0 - 90%
Storage temperature (T-T)
-20 - 60 °C
Other features
AC adapter included
Yes
Packaging content
Display included
No
Keyboard included
No
Mouse included
No
Performance
Motherboard chipset
Intel SoC
Motherboard form factor
NUC
Number of processors supported
1

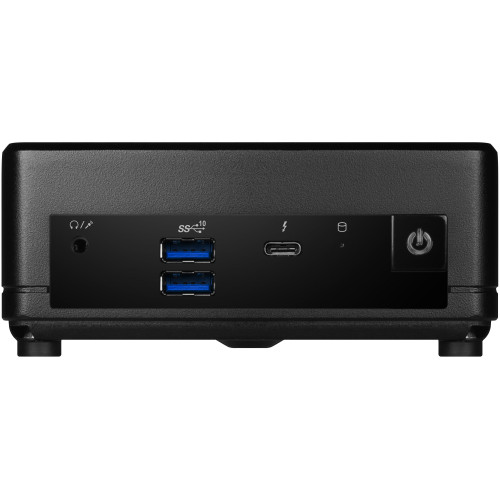

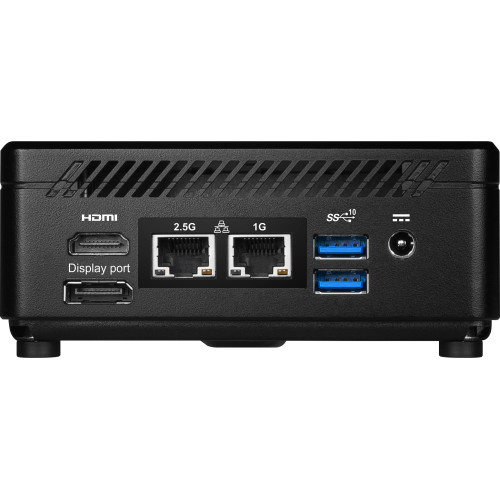

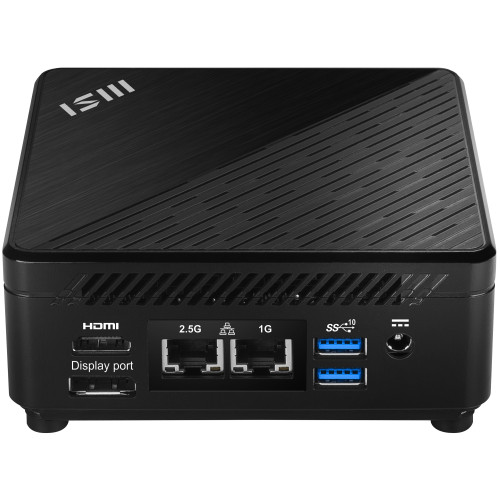

Ports & interfaces
Combo headphone/mic port
Yes
DC-in jack
Yes
DVI port
No
Ethernet LAN (RJ-45) ports
2
HDMI ports quantity
2
HDMI version
1.4b/2.1
Intel® Thunderbolt 4
Yes
Microphone in
No
Thunderbolt 4 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Power
Power supply
120 W
Power supply type
External AC adapter
Processor
Efficient cores
4
Efficient-core base frequency
0.9 GHz
Efficient-core Max Turbo Frequency
3.3 GHz
Maximum turbo power
55 W
Performance cores
2
Performance-core base frequency
1.2 GHz
Performance-core Max Turbo Frequency
4.7 GHz
Processor base power
15 W
Processor boost frequency
4.7 GHz
Processor cache
10 MB
Processor cache type
Smart Cache
Processor cores
6
Processor family
Intel Core 3
Processor generation
Intel Core (Series 1)
Processor manufacturer
Intel
Processor model
100U
Processor threads
8
Security
Cable lock slot
Yes
Cable lock slot type
Kensington
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Software
Operating system installed
Windows 11 Pro
Storage
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash)
Number of SSDs installed
1
NVMe
Yes
Optical drive type
No
SSD capacity
500 GB
SSD form factor
M.2
Storage media
SSD
Total SSDs capacity
500 GB
Total storage capacity
500 GB
Weight & dimensions
Depth
135.6 mm
Height
50.1 mm
Package depth
220 mm
Package height
94 mm
Package weight
1.45 g
Package width
205 mm
Weight
0.625 g
Width
132.5 mm

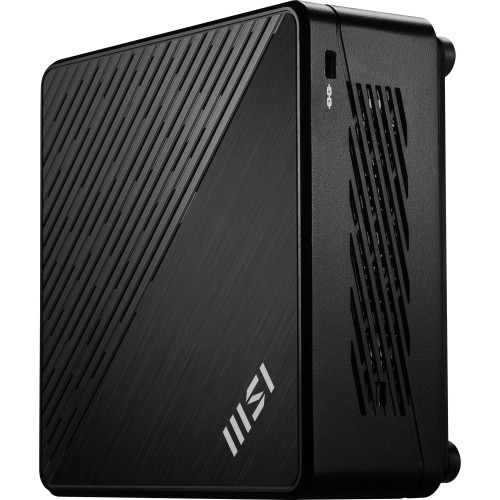

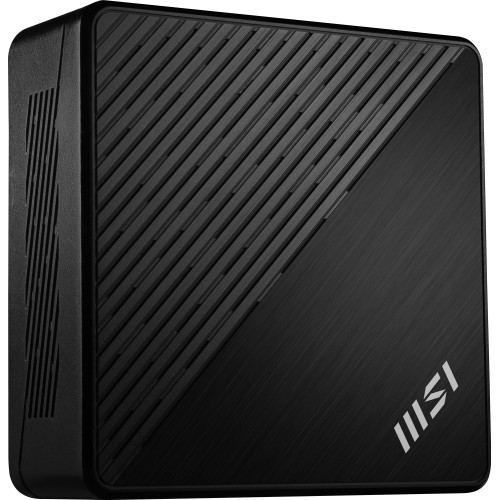

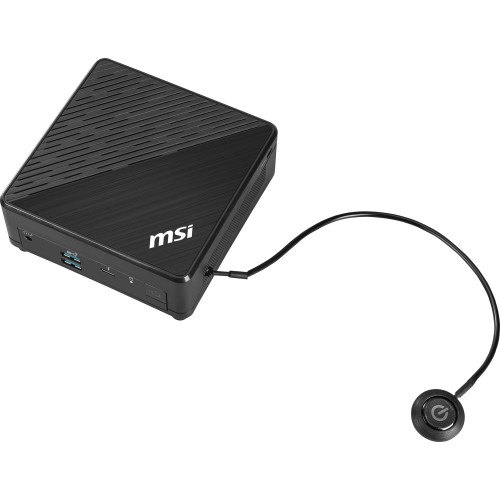

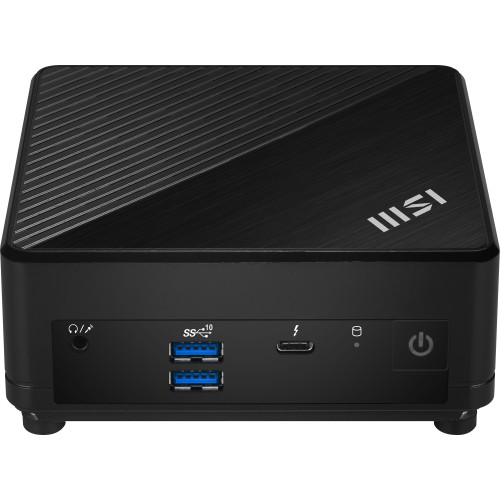

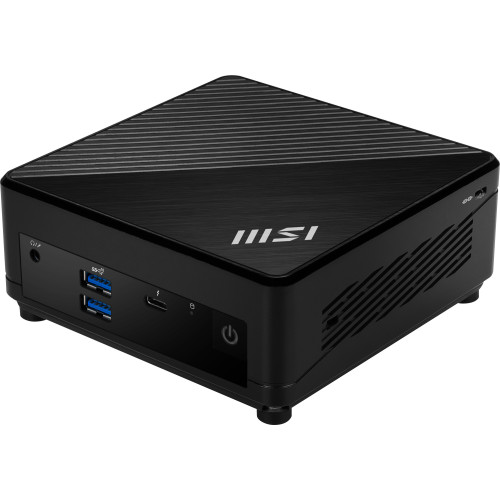

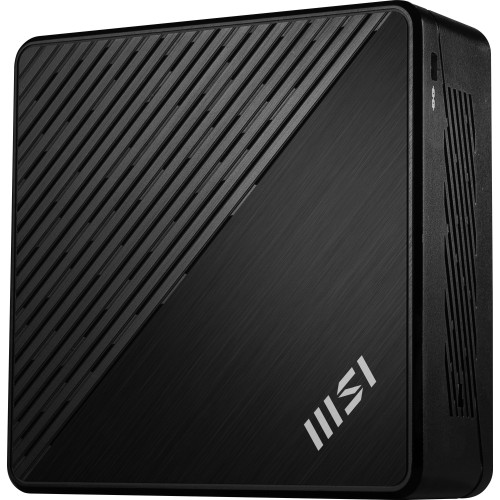

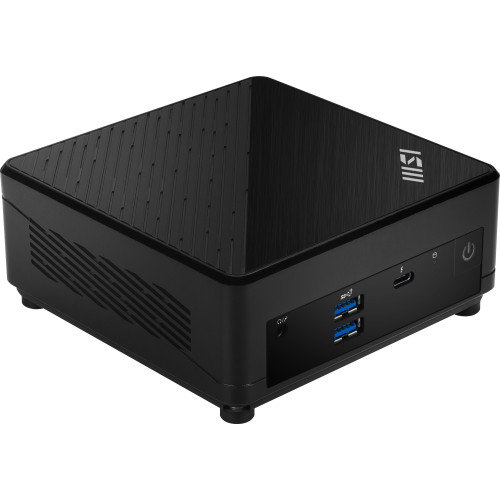

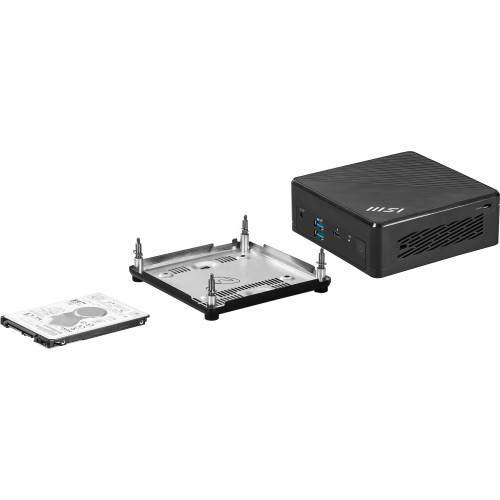

MSI Cubi NUC 1M-010US Intel Core 3 100U 8 GB DDR5-SDRAM 500 GB SSD Windows 11 Pro Mini PC Black
Brand: MSI
Product Code: CUBINUC1M010
Availability: In Stock
Specs: Icecat
