LENOVO THINKSTATION P3 ULTRA SFF GEN 2
Redefining the Power of Small
Experience extraordinary performance in an intelligently compact design. Powered by Intel® Core™ Ultra (Series 2) processors with Intel vPro®, with integrated NPU and NVIDIA RTX™ graphics, this workstation breaks new ground by delivering AI-optimized performance and ultimate flexibility in a chassis less than 4L in total volume.
POWERFUL COMBINED AI ACCELERATION
Experience AI-Enhanced Productivity, Creativity & Security
The ThinkStation P3 Ultra SFF Gen 2 workstation combines an integrated Intel® NPU with NVIDIA RTX™ 4000 SFF Ada Generation graphics for unparalleled AI inferencing — totalling up to 335 TOPS of AI horsepower with the CPU and GPU. Handle everything from deep learning models to real-time analytics without sacrificing space or energy efficiency.
CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.
Specifications may vary depending upon region / model.
Redefining the Power of Small
Experience extraordinary performance in an intelligently compact design. Powered by Intel® Core™ Ultra (Series 2) processors with Intel vPro®, with integrated NPU and NVIDIA RTX™ graphics, this workstation breaks new ground by delivering AI-optimized performance and ultimate flexibility in a chassis less than 4L in total volume.
POWERFUL COMBINED AI ACCELERATION
Experience AI-Enhanced Productivity, Creativity & Security
The ThinkStation P3 Ultra SFF Gen 2 workstation combines an integrated Intel® NPU with NVIDIA RTX™ 4000 SFF Ada Generation graphics for unparalleled AI inferencing — totalling up to 335 TOPS of AI horsepower with the CPU and GPU. Handle everything from deep learning models to real-time analytics without sacrificing space or energy efficiency.
CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.
Specifications may vary depending upon region / model.
| 78321 | |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| GPU performance up to | 8 TOPs |
| Neural processor unit (NPU) | Intel AI Boost |
| NPU performance up to | 13 TOPs |
| Sparsity support | Yes |
| Total processor performance up to | 36 TOPs |
| Windows Studio effects support | Yes |
| Audio | |
| Audio chip | Realtek ALC623-CG |
| Audio system | High Definition Audio |
| Built-in speaker(s) | Yes |
| Design | |
| Certification | TCO Certified, generation 10 MIL-STD-810H |
| Chassis type | Mini Tower |
| Placement supported | Horizontal/Vertical |
| Product colour | Black |
| Product type | Workstation |
| Volume | 3.9 L |
| Features | |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Graphics | |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Yes |
| Discrete graphics card memory | 16 GB |
| Discrete graphics card model | NVIDIA RTX 2000 Ada |
| Discrete graphics memory type | GDDR6 |
| Graphics card Mini DisplayPort ports quantity | 4 |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | Intel |
| On-board graphics card | Yes |
| On-board graphics card family | Intel Graphics |
| On-board graphics card model | Intel Graphics |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Memory clock speed | 5600 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 2x SO-DIMM |
| Non-ECC | Yes |
| Network | |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 7 BE200 |
| Operational conditions | |
| Non-operating altitude | 0 - 12192 m |
| Operating altitude | 0 - 3048 m |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
| Packaging content | |
| Display included | No |
| Keyboard connectivity | Wired |
| Keyboard included | Yes |
| Mouse connectivity | Wired |
| Mouse included | Yes |
| Performance | |
| Motherboard chipset | Intel W880 |
| Number of speakers | 1 |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| DisplayPorts quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 3 ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 2 |
| Power | |
| Power supply | 330 W |
| Power supply input voltage | 100 - 240 V |
| Processor | |
| Efficient cores | 16 |
| Efficient-core base frequency | 1.9 GHz |
| Efficient-core Max Turbo Frequency | 4.6 GHz |
| Maximum turbo power | 182 W |
| Number of processors installed | 1 |
| Performance cores | 8 |
| Performance-core base frequency | 2.5 GHz |
| Performance-core Max Turbo Frequency | 5.4 GHz |
| Processor base power | 65 W |
| Processor boost frequency | 5.6 GHz |
| Processor cache | 36 MB |
| Processor cache type | Smart Cache |
| Processor cores | 24 |
| Processor family | Intel Core Ultra 9 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor manufacturer | Intel |
| Processor model | 285 |
| Processor threads | 24 |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Password protection | Yes |
| Password protection type | BIOS, Power on |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Bundled software | Lenovo AI Now |
| Operating system installed | Windows 11 Pro |
| Operating system language | English, US English |
| Storage | |
| Number of SSDs installed | 1 |
| Number of storage drives installed | 1 |
| NVMe | Yes |
| Optical drive type | No |
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Total storage capacity | 1 TB |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Depth | 223 mm |
| Height | 202 mm |
| Weight | 3.6 kg |
| Width | 87 mm |

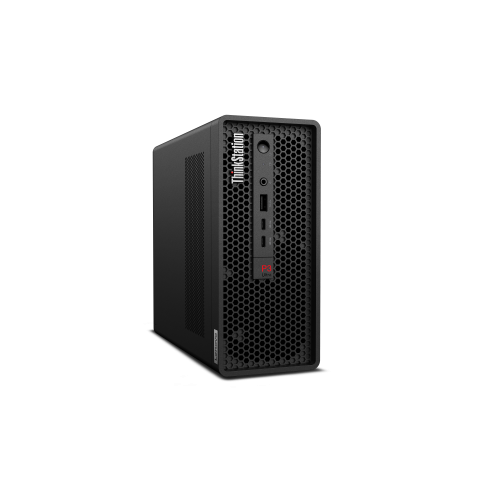

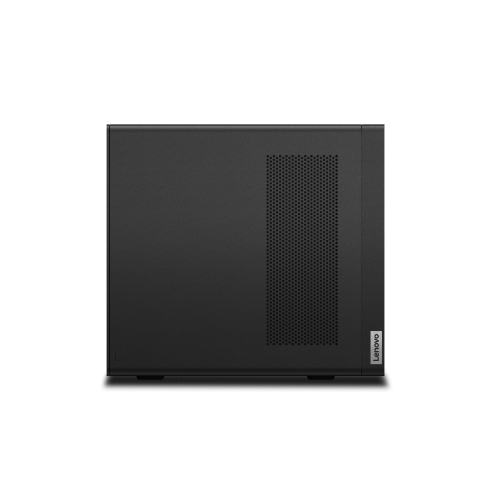

Lenovo ThinkStation P3 Ultra SFF Gen 2 Intel Core Ultra 9 285 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX 2000 Ada Windows 11 Pro Mini Tower Workstation Black
- Brand: Lenovo
- Product Code: 30J50031US
- Availability: In Stock
-
$2,862.67
