Adequate Brightness Level
The 75UH5J-M series boasts an adequate brightness level of 500 cd/m² for indoor displays, effectively showcasing content and capturing the public’s attention. This makes it an adequate display solution for marketing purposes in various settings, including meeting rooms, airports, retail outlets, and shopping malls.
High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
Conformal Coating
In various places the 75UH5J-M series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting 75UH5J-M series from salt, dust, iron powder, humidity, etc.
Mobile Content Management
You can create a store profile and get template recommendations using the Promota* app.
Users can customize templates as needed and easily create and manage content not only on PCs but also on mobile devices.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.
Compatible with AV Control System
The 75UH5J-M series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*,
boosting business management efficiency.
The 75UH5J-M series boasts an adequate brightness level of 500 cd/m² for indoor displays, effectively showcasing content and capturing the public’s attention. This makes it an adequate display solution for marketing purposes in various settings, including meeting rooms, airports, retail outlets, and shopping malls.
High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
Conformal Coating
In various places the 75UH5J-M series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting 75UH5J-M series from salt, dust, iron powder, humidity, etc.
Mobile Content Management
You can create a store profile and get template recommendations using the Promota* app.
Users can customize templates as needed and easily create and manage content not only on PCs but also on mobile devices.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.
Compatible with AV Control System
The 75UH5J-M series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*,
boosting business management efficiency.
Audio | |
Built-in speaker(s) | Y |
Design | |
Orientation | Horizontal/Vertical |
Panel mounting interface | 600 x 400 mm |
Placement supported | Indoor |
Product colour | Black |
VESA mounting | Y |
Display | |
Colour saturation | 72% |
Contrast ratio (dynamic) | 1000000:1 |
Contrast ratio (typical) | 1000:1 |
Display brightness | 500 cd/m² |
Display diagonal | 190.5 cm (75") |
Display number of colours | 1.07 billion colours |
Display resolution | 3840 x 2160 pixels |
Display technology | LED |
HD type | 4K Ultra HD |
LED backlight | Y |
LED backlighting type | Edge-LED |
Native refresh rate | 120 Hz |
On Screen Display (OSD) | Y |
Panel type | IPS |
Screen shape | Flat |
Surface hardness | 28 |
Tilt adjustment | Y |
Touchscreen | N |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Features | |
HDCP | Y |
HDCP version | 1.4/2.2 |
Heat dissipation (max) | 785 BTU/h |
Product design | Digital signage flat panel |
Purpose | Commercial |
Remote control included | Y |
Response time | 6 ms |
Memory | |
Internal memory | 16 GB |
Network | |
Ethernet LAN | Y |
Wi-Fi | Y |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 80% |
Operating temperature (T-T) | 0 - 40 °C |
Packaging content | |
Cables included | Power |
Performance | |
Ambient light sensor | Y |
International Protection (IP) code | IP5X |
Operating hours (hours/days) | 24/7 |
Operating system version | 6.0 |
USB version | 2.0 |
Ports & interfaces | |
Audio (L/R) in | 1 |
Audio (L/R) out | 1 |
DisplayPorts quantity | 1 |
DVI port | Y |
DVI-D ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 3 |
Infrared data port | Y |
Remote (IR) input | 1 |
RS-232C | Y |
USB port | Y |
USB ports quantity | 1 |
Power | |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Heat dissipation | 581 BTU/h |
Power consumption (max) | 230 W |
Power consumption (off) | 0.5 W |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 170 W |
Software | |
Operating system installed | Web OS |
Weight & dimensions | |
Bezel width (bottom) | 1.49 cm |
Bezel width (side) | 1.49 cm |
Bezel width (top) | 1.49 cm |
Display depth | 57.9 mm |
Display height | 960.3 mm |
Display weight | 41.5 kg |
Display width | 1682.4 mm |
Package depth | 228 mm |
Package height | 1123 mm |
Package weight | 51.2 kg |
Package width | 1816 mm |

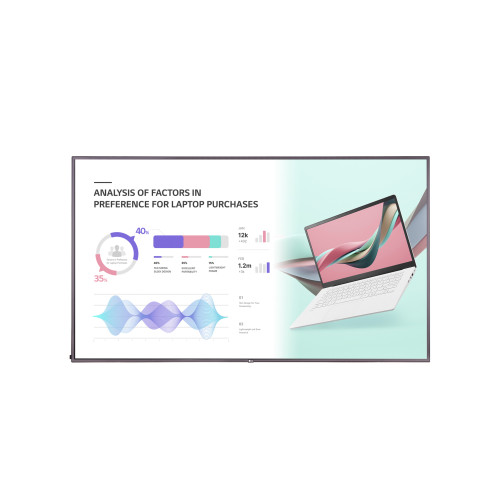

LG 75UH5J-M Signage Display Digital signage flat panel 190.5 cm (75") LED Wi-Fi 500 cd/m² 4K Ultra HD Black Web OS 24/7
- Brand: LG
- Product Code: 75UH5J-M
- Availability: In Stock
-
$2,592.24
