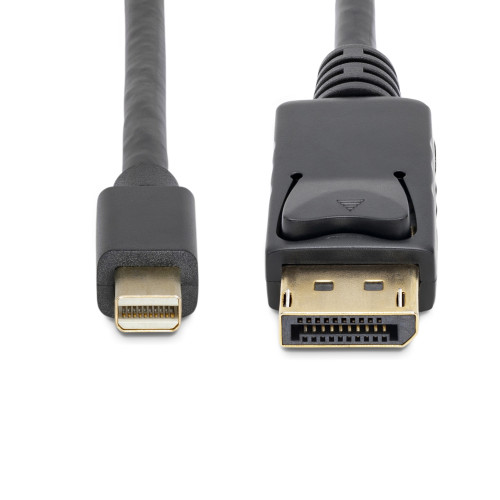

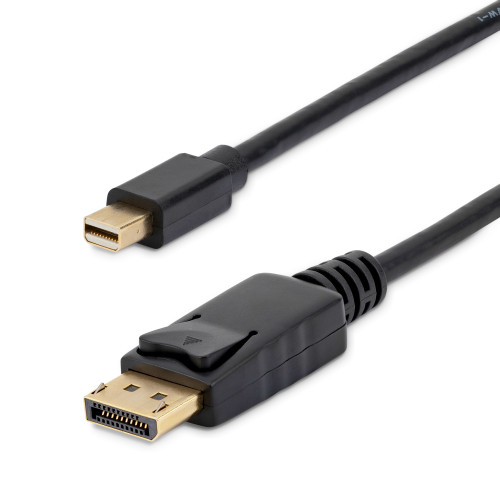

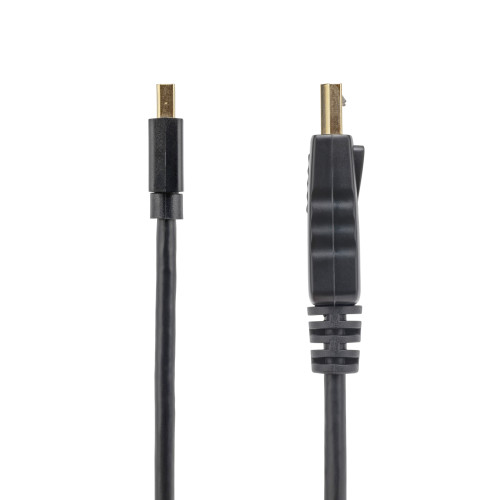

Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™-equipped laptop and a standard DP monitorThe MDP2DPMM6 6ft Mini DisplayPort™ to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop (including the Mac® family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection.The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.The MDP2DPMM6 is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.Please Note : Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.The StarTech.com Advantage
| Design | |
| Product colour | Black |
| Display | |
| Maximum refresh rate | 120 Hz |
| Features | |
| AWG wire size | 32 |
| Bandwidth | 21600 MB/s |
| Cable length | 1.8 m |
| Cable rating | CMG (CM) |
| Cable shielding | Aluminum mylar foil |
| Connector 1 | Mini DisplayPort |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | DisplayPort |
| Connector 2 form factor | Straight |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| DisplayPort Content Protection (DPCP) | Y |
| HDCP | Y |
| Jacket material | Polyvinyl chloride (PVC) |
| Multi-Stream Transport (MST) | Y |
| Number of conductors | 19 |
| Plug and Play | Y |
| Supported graphics resolutions | 3840 x 2400, 2560 x 1600 (WQXGA) |
| Graphics | |
| Maximum resolution | 3840 x 2400 pixels |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case height | 220 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case width | 330 mm |
| Products per master (outer) case | 60 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Ports & interfaces | |
| DisplayPort version | 1.2 |
| Sustainability | |
| Sustainability certificates | RoHS, CE |
| Weight & dimensions | |
| Cable diameter | 4.8 mm |
| Package depth | 220 mm |
| Package height | 11 mm |
| Package weight | 78 g |
| Package width | 200 mm |
| Weight | 69 g |
StarTech.com 6ft (2m) Mini DisplayPort to DisplayPort 1.2 Cable - 4K x 2K UHD Mini DisplayPort to DisplayPort Adapter Cable - Mini DP to DP Cable for Monitor - mDP to DP Converter Cord
- Brand: StarTech.com
- Product Code: MDP2DPMM6
- Availability: In Stock
-
$12.60
