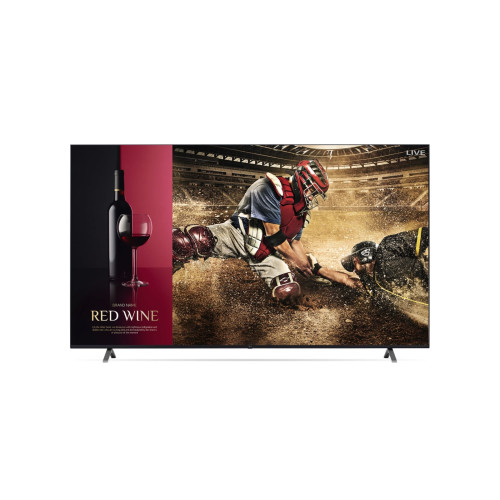

LG UHD Signage for Live TV & Promotion

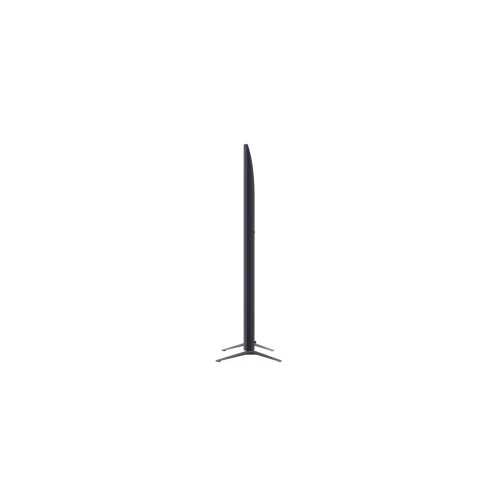

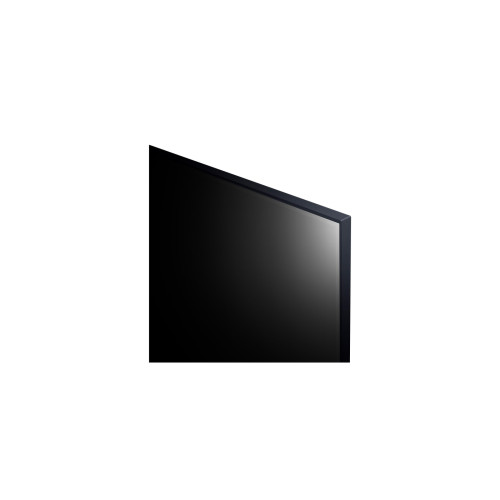

Space-fitting Slim Design
This series is thinner than LG conventional* model to save space and enable easy installation. In addition, its sophisticated ashed blue colour improves the décor of the space where the product is installed.
* LG Conventional' refers to LG US340C series.
The TV is screening greeting messages with images.
Welcome Screen
The UR340C series allows for a greater variation of greeting messages to make customers feel more welcome and cared for. Also, if there is no input signal, it is possible to show the content preset by the user instead of the conventional No Signal message.
It only turns on when there is signal and turns off when there is not any signal in DPM Mode.
Display Power Management Support
Display Power Management (DPM) can be configured to be on only when there is a TV signal present to manage power more efficiently.
The UR340C series can help you create your own schedule.
On/Off Time Setting
Create your own time scheduler of your TV. Once you set opening / closing hours and holidays, the TV will turn on / off according to work schedule.
Setting data of the display can be stored on USB and transmitted to other displays.
USB Data Cloning
USB data cloning makes managing multiple displays more efficient for optimal operation. Instead of setting up each display one by one, data can be copied to a USB for one display, and then that data will be sent to the other displays through a USB plug-in.
* USB is not provided by LG. FAT32 or NTFS formatting is recommended.
This is one of meeting room with the signage and one of AV control system which helps users control the UR340C series.
Crestron Connected Certified
The UR340C series has been certified by Crestron Connected®, resulting in seamless integration and automated control* in the meeting room, boosting business management efficiency.
* Network based control.
Conveniently manage a variety of displays using LG SuperSign Control.
Quick & Easy Signage Control with LG SuperSign Control
SuperSign Control is the basic control software, and it can manage up to 100 displays through a single account and server. Power, volume, and scheduling can be remotely adjusted, and firmware updates supported.
* LG SuperSign Control needs to be purchased separately.
Space-fitting Slim Design
This series is thinner than LG conventional* model to save space and enable easy installation. In addition, its sophisticated ashed blue colour improves the décor of the space where the product is installed.
* LG Conventional' refers to LG US340C series.
The TV is screening greeting messages with images.
Welcome Screen
The UR340C series allows for a greater variation of greeting messages to make customers feel more welcome and cared for. Also, if there is no input signal, it is possible to show the content preset by the user instead of the conventional No Signal message.
It only turns on when there is signal and turns off when there is not any signal in DPM Mode.
Display Power Management Support
Display Power Management (DPM) can be configured to be on only when there is a TV signal present to manage power more efficiently.
The UR340C series can help you create your own schedule.
On/Off Time Setting
Create your own time scheduler of your TV. Once you set opening / closing hours and holidays, the TV will turn on / off according to work schedule.
Setting data of the display can be stored on USB and transmitted to other displays.
USB Data Cloning
USB data cloning makes managing multiple displays more efficient for optimal operation. Instead of setting up each display one by one, data can be copied to a USB for one display, and then that data will be sent to the other displays through a USB plug-in.
* USB is not provided by LG. FAT32 or NTFS formatting is recommended.
This is one of meeting room with the signage and one of AV control system which helps users control the UR340C series.
Crestron Connected Certified
The UR340C series has been certified by Crestron Connected®, resulting in seamless integration and automated control* in the meeting room, boosting business management efficiency.
* Network based control.
Conveniently manage a variety of displays using LG SuperSign Control.
Quick & Easy Signage Control with LG SuperSign Control
SuperSign Control is the basic control software, and it can manage up to 100 displays through a single account and server. Power, volume, and scheduling can be remotely adjusted, and firmware updates supported.
* LG SuperSign Control needs to be purchased separately.
| Audio | |
| Built-in speaker(s) | Y |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Speaker impedance | 8 Ω |
| Design | |
| Panel mounting interface | 600 x 400 mm |
| Product colour | Blue, Navy |
| VESA mounting | Y |
| Display | |
| Display brightness | 330 cd/m² |
| Display diagonal | 2.18 m (86") |
| Display resolution | 3840 x 2160 pixels |
| Display technology | LED |
| HD type | 4K Ultra HD |
| High Dynamic Range (HDR) supported | Y |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 Pro (HDR10 Pro) |
| Native refresh rate | 120 Hz |
| Panel life | 30000 h |
| Touchscreen | N |
| Features | |
| Product design | Digital signage flat panel |
| Remote control included | Y |
| Remote control type | L-Con |
| Response time | 5 ms |
| Network | |
| Ethernet LAN | Y |
| Packaging content | |
| Cables included | AC, RS-232 |
| Performance | |
| Browsing | Y |
| Digital signal format system | ATSC |
| High Dynamic Range 10 (HDR10) | Y |
| Hybrid Log-Gamma (HLG) | Y |
| USB version | 2.0 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI input ports quantity | 3 |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| Infrared data port | Y |
| RS-232 interface | Y |
| RS-232C | Y |
| USB port | Y |
| USB ports quantity | 1 |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 120 V |
| Input voltage | 120 V |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 313 W |
| Software | |
| Operating system installed | Web OS |
| Technical details | |
| Real Time Clock (RTC) | Y |
| Video | |
| Analog signal format system | NTSC |
| Weight & dimensions | |
| Bezel width (bottom) | 199 cm |
| Bezel width (side) | 159 cm |
| Bezel width (top) | 159 cm |
| Depth | 599 mm |
| Depth (with stand) | 362 mm |
| Height | 1104 mm |
| Height (with stand) | 1167 mm |
| Package depth | 228 mm |
| Package height | 1215 mm |
| Package weight | 58.4 kg |
| Package width | 2115 mm |
| Weight | 45.2 kg |
| Weight (with stand) | 45.9 kg |
| Width | 1927 mm |
| Width (with stand) | 1927 mm |

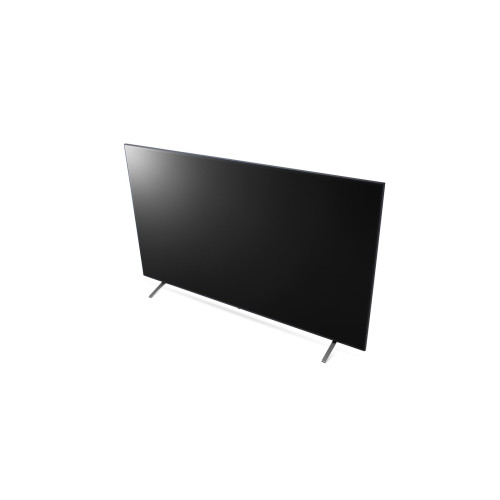

LG 86UR340C9UD Signage Display Digital signage flat panel 2.18 m (86") LED 330 cd/m² 4K Ultra HD Blue, Navy Web OS
- Brand: LG
- Product Code: 86UR340C9UD
- Availability: In Stock
-
$1,592.18
