The Eaton 5P Rackmount UPS delivers reliable enterprise class backup power with an efficiency rating of up to 99%. With ENERGY STAR qualified models, the 5P's graphical LCD display allows you to view UPS status in a single glance and provides more available power than comparable UPSs. When paired with Intelligent Power Software Suite, the 5P allows you to seamlessly manage your connected equipment, even in virtualized environments.
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 4 min |
| Typical backup time at half load | 12 min |
| Design | |
| Certification | UL 1778, UL497A cULus, CE IEC 62040-2 C1-C2 / EN 55024 / CISPR22 / FCC |
| Display type | LCD |
| Form factor | Rackmount |
| LED indicators | Y |
| Product colour | Black, Silver |
| Features | |
| Cable length | 1.8 m |
| Efficiency | 97% |
| Emergency Power Off (EPO) | Y |
| Hot-swap battery | Y |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 151 V |
| Input operation voltage (min) | 89 V |
| Noise level | 45 dB |
| Output operation voltage (max) | 125 V |
| Output operation voltage (min) | 100 V |
| Output power | 600 W |
| Output power capacity | 0.75 kVA |
| Rack capacity | 1U |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Ports & interfaces | |
| Power plug | NEMA 5-15P |
| RS-232 ports | 1 |
| USB 2.0 ports quantity | 1 |
| Power | |
| AC outlet types | NEMA 5–15R |
| AC outlets quantity | 5 AC outlet(s) |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 509 mm |
| Height | 43.2 mm |
| Width | 438 mm |

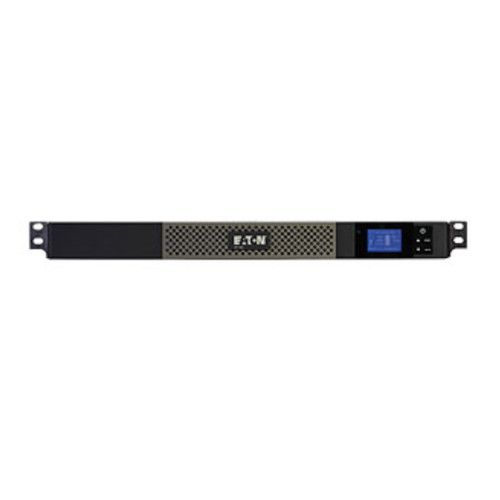

Eaton 5P Rackmount uninterruptible power supply (UPS) 0.75 kVA 600 W 5 AC outlet(s)
- Brand: Eaton
- Product Code: 5P750R
- Availability: In Stock
-
$653.19
