9/125 Rated Singlemode Cable for 40/100 Gb Ethernet Applications

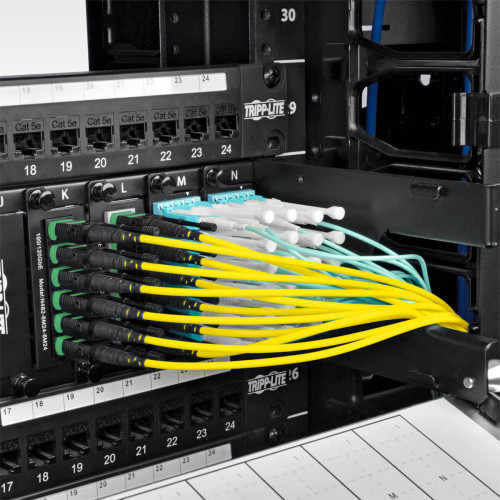

Designed to extend high-density connections between network equipment in telecom rooms and data centers
Recommended for patching between data center MDFs and IDFs
Optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks
6 mm dual plenum-rated jacket and bend-insensitive fiber perfect for ceilings, walls and ducts
Yellow-colored for identification as a singlemode cable

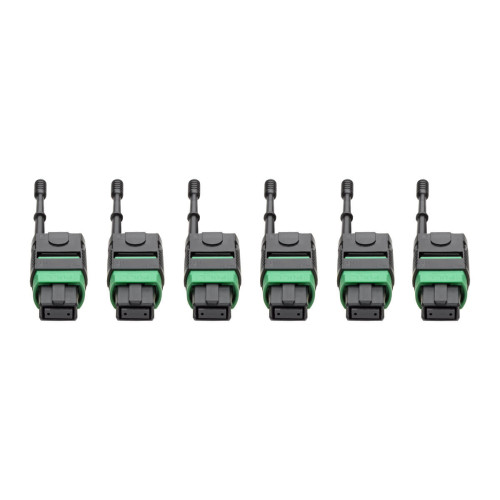

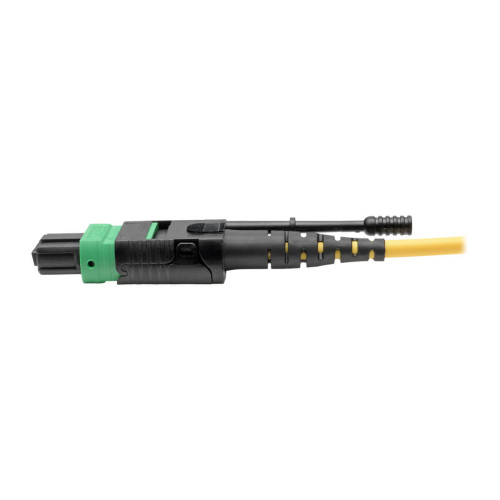

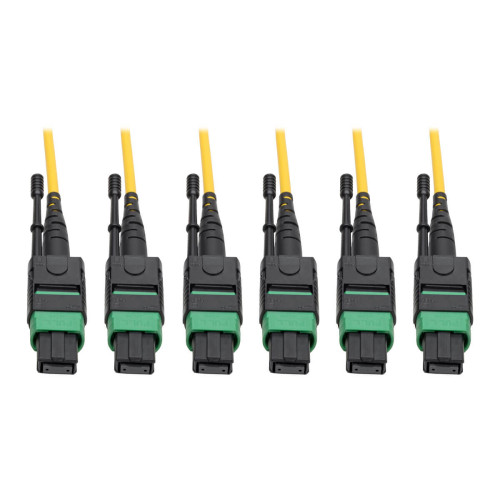

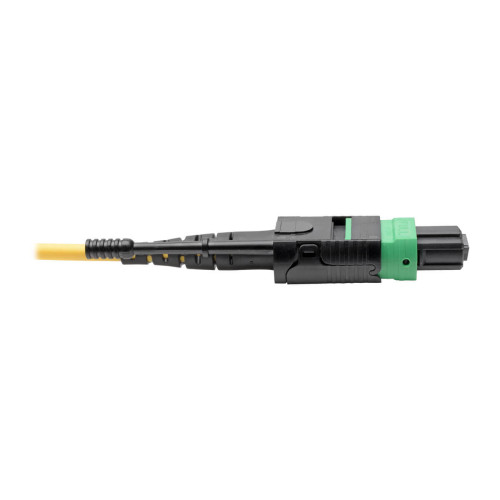

Factory-Terminated MTP/MPO APC Connectors with Push/Pull Tabs
8-fiber female connectors 12 times denser than SC connectors
Push/pull tab connectors easy to install and remove with one hand
Angled connectors prevent light from reflecting back into laser
100% tested for low insertion loss and back reflection
Designed to extend high-density connections between network equipment in telecom rooms and data centers
Recommended for patching between data center MDFs and IDFs
Optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks
6 mm dual plenum-rated jacket and bend-insensitive fiber perfect for ceilings, walls and ducts
Yellow-colored for identification as a singlemode cable
Factory-Terminated MTP/MPO APC Connectors with Push/Pull Tabs
8-fiber female connectors 12 times denser than SC connectors
Push/pull tab connectors easy to install and remove with one hand
Angled connectors prevent light from reflecting back into laser
100% tested for low insertion loss and back reflection
| Design | |
| Country of origin | China |
| Product colour | Yellow |
| Features | |
| Cable length | 61 m |
| Cable type | OFNP |
| Cladding diameter | 125 µm |
| Connector 1 | MTP |
| Connector 1 gender | Female |
| Connector 2 | MTP |
| Connector 2 gender | Female |
| Core diameter | 8.3 µm |
| Fiber mode structure | Single-mode |
| Logistics data | |
| Harmonized System (HS) code | 8544.70.0000 |
| Master (outer) case gross weight | 13.1 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332205497 |
| Master (outer) case height | 279.4 mm |
| Master (outer) case length | 398.8 mm |
| Master (outer) case width | 500.4 mm |
| Products per master (outer) case | 5 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| Data transfer rate | 100 Gbit/s |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Package depth | 260.1 mm |
| Package height | 119.9 mm |
| Package weight | 2.38 kg |
| Package width | 260.1 mm |

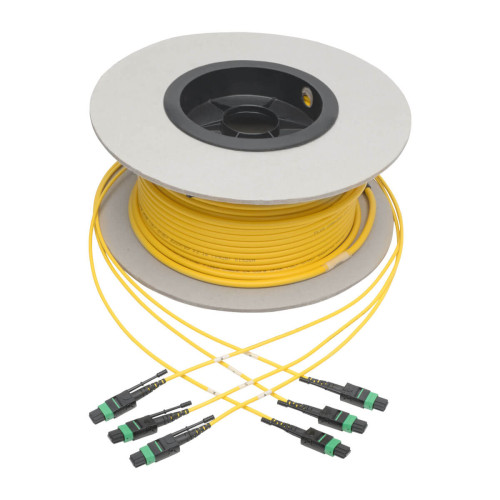

Tripp Lite N392-61M-3X8-AP MTP/MPO (APC) Singlemode Slim Trunk Cable, 24-Strand, 40/100 GbE, 40/100GBASE-PLR4, Plenum, 6mm Dual Jacket, 61 m (200 ft.)
- Brand: Tripp-Lite
- Product Code: N392-61M-3X8-AP
- Availability: In Stock
-
$851.59
