Constructed with 50/125 micron cable
Length - 50M
Use on fiber and fibre channel installations
SC male to LC male connectors
Higher bandwidth optimized for gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications
Number of fibers: 2
Fiber type: all glass graded index
Core diameter: two 50+/-3 microns
CLAD diameter: 125+/-2 microns
Primary coating diameter: 245+/-15 microns
Primary coating material: acrylate
Secondary coating diameter: 900+/-50 microns
Secondary coating material: PVC
Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
Numeric aperture: .275 nominal
Proof test level: 100,000 PSI
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze
Length - 50M
Use on fiber and fibre channel installations
SC male to LC male connectors
Higher bandwidth optimized for gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications
Number of fibers: 2
Fiber type: all glass graded index
Core diameter: two 50+/-3 microns
CLAD diameter: 125+/-2 microns
Primary coating diameter: 245+/-15 microns
Primary coating material: acrylate
Secondary coating diameter: 900+/-50 microns
Secondary coating material: PVC
Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
Numeric aperture: .275 nominal
Proof test level: 100,000 PSI
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze
| Design | |
| Country of origin | China |
| Product colour | Orange |
| Features | |
| Cable length | 50 m |
| Cable type | OFNR |
| Cladding diameter | 125 µm |
| Connector 1 | 2x LC |
| Connector 1 gender | Male |
| Connector 2 | 2x SC |
| Connector 2 gender | Male |
| Core diameter | 50 µm |
| Fiber mode structure | Multi-mode |
| Jacket material | Polyvinyl chloride (PVC) |
| Logistics data | |
| Harmonized System (HS) code | 8544.70.0000 |
| Master (outer) case gross weight | 3.95 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332119534 |
| Master (outer) case height | 200.7 mm |
| Master (outer) case length | 248.9 mm |
| Master (outer) case width | 449.6 mm |
| Products per master (outer) case | 10 pc(s) |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Package depth | 12.7 mm |
| Package height | 304.8 mm |
| Package weight | 360 g |
| Package width | 266.7 mm |

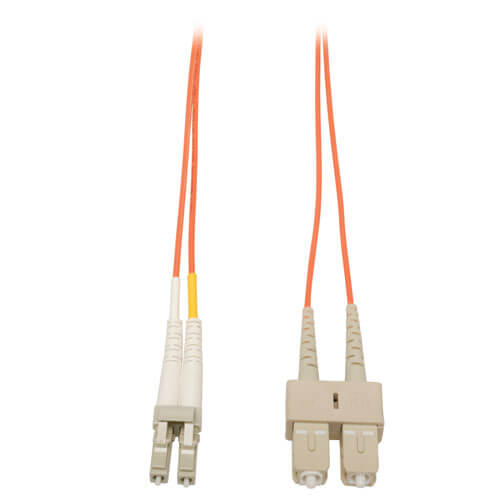

Tripp Lite N516-50M Duplex Multimode 50/125 Fiber Patch Cable (LC/SC), 50M (164 ft.)
- Brand: Tripp-Lite
- Product Code: N516-50M
- Availability: In Stock
-
$77.78
