9/125 Rated Singlemode Cable for 40/100 Gb Ethernet Applications

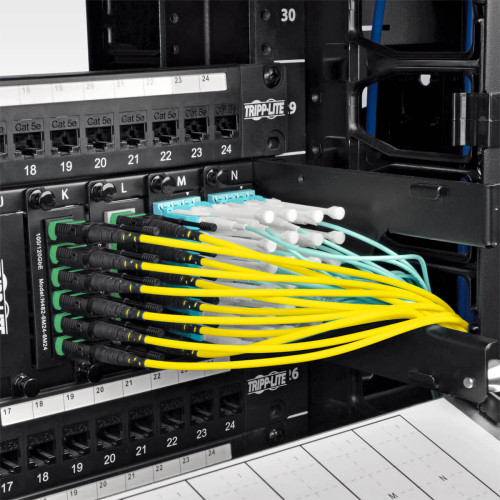

Designed for high-density fiber patching between data center MDFs and IDFs in enterprise installations
Optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks
Plenum-rated jacket suited for ceilings, walls and ducts
Yellow-colored for identification as a singlemode cable

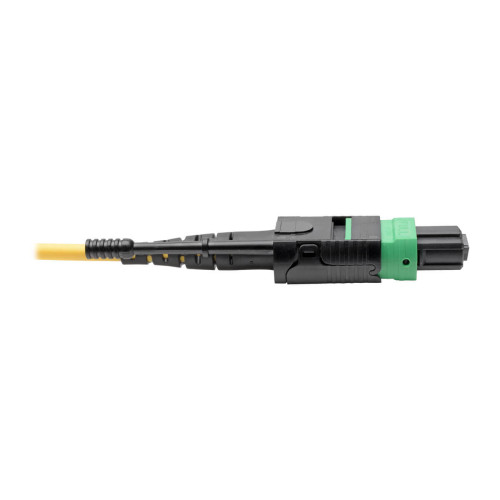

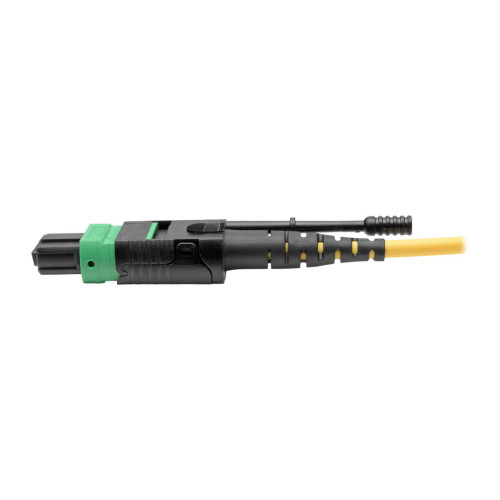

MTP/MPO APC and LC Duplex UPC Connectors with Push/Pull Tabs

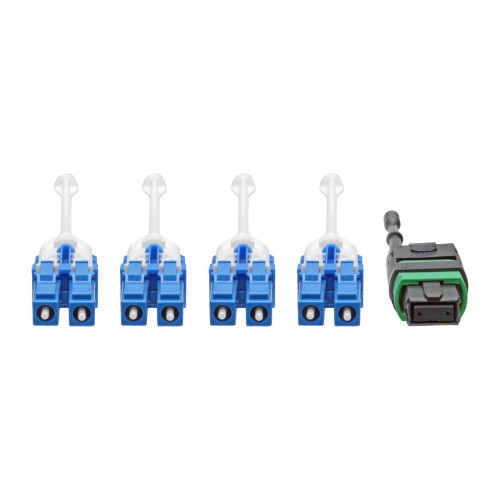

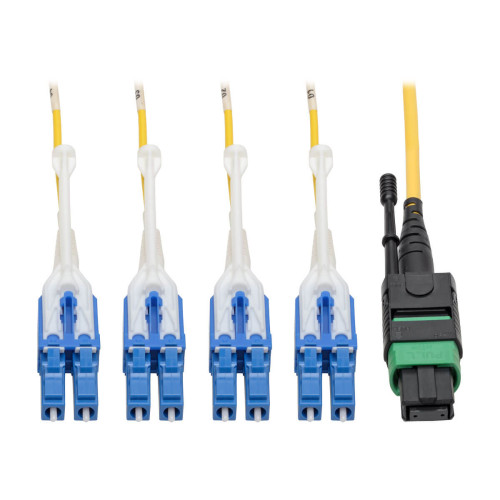

MTP/MPO female connector and 8 LC duplex male connectors—no splicing required
12-fiber MTP/MPO connector 12 times denser than SC connector
APC connector angled to prevent light from reflecting back into laser

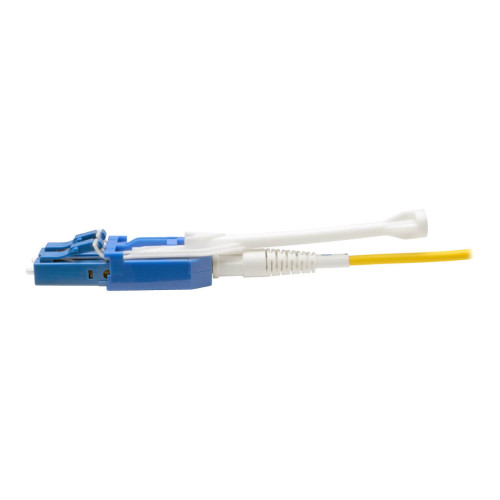

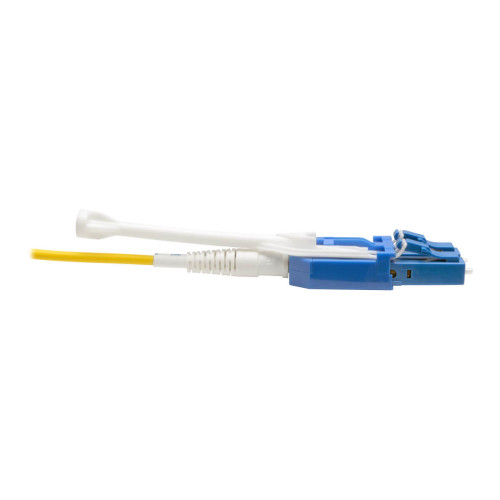

UPC connector with premium-grade ceramic ferrule for 10 GbE and faster applications
Push/pull tabs easy to install and remove with one hand
Error-Free Signal Transfer
Fully transmits 40GBASE-PLR4 with 4 fibers transmitting at 10 Gbps in each direction
100% tested for low insertion loss and back reflection
Slim, space-saving uniboot design easier to manage in crowded applications
Designed for high-density fiber patching between data center MDFs and IDFs in enterprise installations
Optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks
Plenum-rated jacket suited for ceilings, walls and ducts
Yellow-colored for identification as a singlemode cable
MTP/MPO APC and LC Duplex UPC Connectors with Push/Pull Tabs
MTP/MPO female connector and 8 LC duplex male connectors—no splicing required
12-fiber MTP/MPO connector 12 times denser than SC connector
APC connector angled to prevent light from reflecting back into laser
UPC connector with premium-grade ceramic ferrule for 10 GbE and faster applications
Push/pull tabs easy to install and remove with one hand
Error-Free Signal Transfer
Fully transmits 40GBASE-PLR4 with 4 fibers transmitting at 10 Gbps in each direction
100% tested for low insertion loss and back reflection
Slim, space-saving uniboot design easier to manage in crowded applications
| Design | |
| Country of origin | China |
| Product colour | Yellow |
| Features | |
| Cable length | 5 m |
| Cable type | OFNP |
| Cladding diameter | 125 µm |
| Connector 1 | MTP |
| Connector 1 gender | Male |
| Connector 2 | LC |
| Connector 2 gender | Female |
| Connector material | Ceramic |
| Core diameter | 8.3 µm |
| Fiber mode structure | Single-mode |
| Logistics data | |
| Harmonized System (HS) code | 8544.70.0000 |
| Master (outer) case gross weight | 1.02 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332205602 |
| Master (outer) case height | 101.6 mm |
| Master (outer) case length | 149.9 mm |
| Master (outer) case width | 185.4 mm |
| Products per master (outer) case | 10 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| Data transfer rate | 100 Gbit/s |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Package depth | 12.7 mm |
| Package height | 228.6 mm |
| Package weight | 100 g |
| Package width | 177.8 mm |

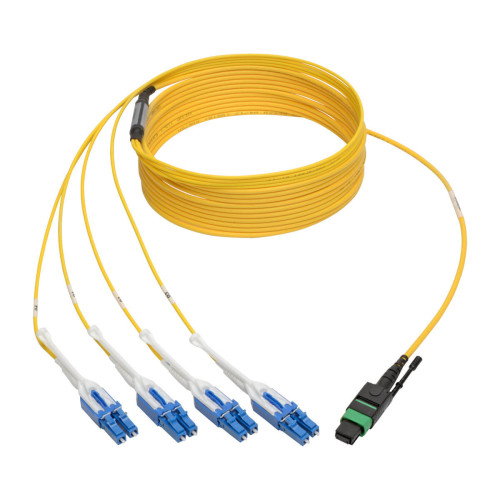

Tripp Lite N390-05M-8LC-AP MTP/MPO (APC) to 4xLC (UPC) Singlemode Breakout Patch Cable, 40/100 GbE, QSFP+ 40GBASE-PLR4, Plenum, Yellow, 5 m (16 ft.)
- Brand: Tripp-Lite
- Product Code: N390-05M-8LC-AP
- Availability: In Stock
-
$227.06
