KVM with USB | Quad Monitor | TAA Compliant | USB 3.0 Hub | DisplayPort 1.2 | Digital & Analog AudioThe StarTech.com Advantage
| Design | |
| Certification | CE, FCC, RoHS |
| Hot keys | Y |
| Housing material | Steel |
| LED indicators | Y |
| Product colour | Black |
| Push button | Y |
| Display | |
| Built-in display | N |
| HD type | 4K Ultra HD |
| On Screen Display (OSD) | N |
| Features | |
| Chipset | Genesys Logic - GL3523 |
| Daisy chain | N |
| Data transfer rate (max) | 5 Gbit/s |
| HDCP | Y |
| Graphics | |
| Maximum resolution | 3840 x 2160 pixels |
| Number of displays supported | 4 |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case height | 275 mm |
| Master (outer) case length | 395 mm |
| Master (outer) case width | 325 mm |
| Products per master (outer) case | 6 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Other features | |
| IP control | N |
| Packaging content | |
| Manual | Y |
| Rubber feet | Y |
| Performance | |
| Audio channels | 5.1 |
| Scan interval | 3,8,15,30 s |
| Video bandwidth | 60 Hz |
| Ports & interfaces | |
| Audio connections | Y |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Console USB ports quantity | 4 |
| DC-in jack | Y |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 12 |
| Headphone outputs | 3 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| USB hub | Y |
| Video port type | DisplayPort |
| Power | |
| AC input voltage | 100 - 240 V |
| Compatible power plug types | EU, JP, UK, US |
| External power adapter | Y |
| Input current | 1 A |
| Output current | 3 A |
| Output voltage | 12 V |
| Power consumption (typical) | 36 W |
| Power plug type | Type M |
| Technical details | |
| Mean time between failures (MTBF) | 156000 h |
| Rack mounting | N |
| Weight & dimensions | |
| Depth | 438 mm |
| Height | 43 mm |
| Package depth | 250 mm |
| Package height | 100 mm |
| Package width | 185 mm |
| Weight | 959 g |
| Width | 180 mm |

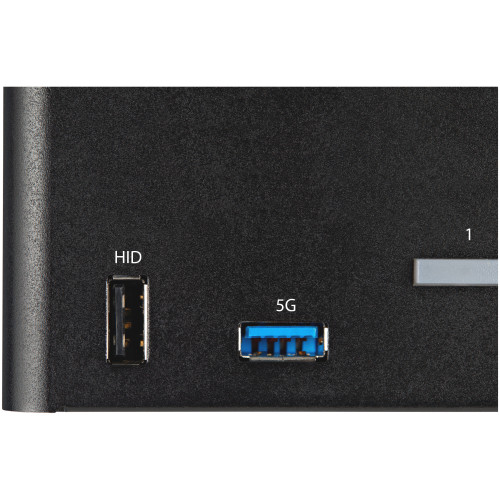

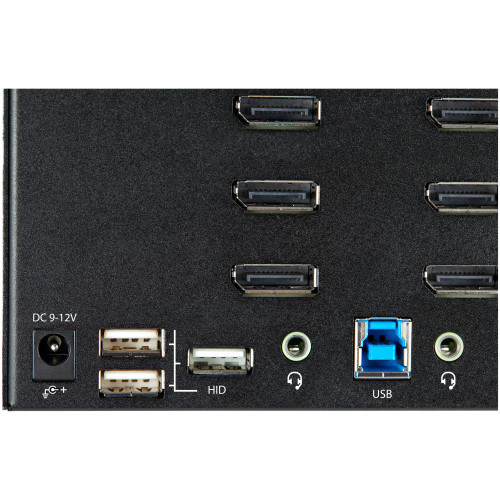

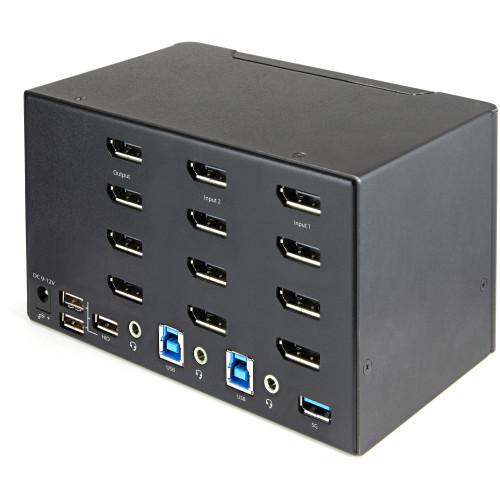

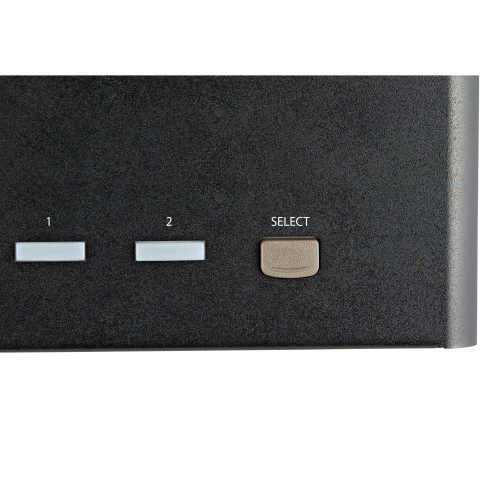

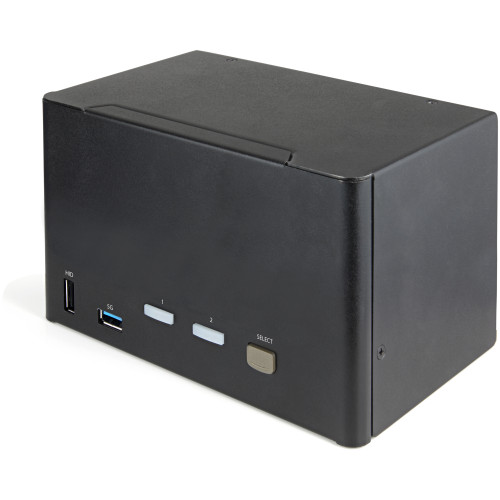

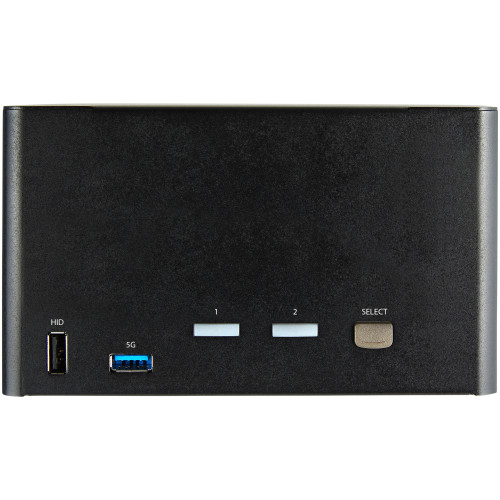

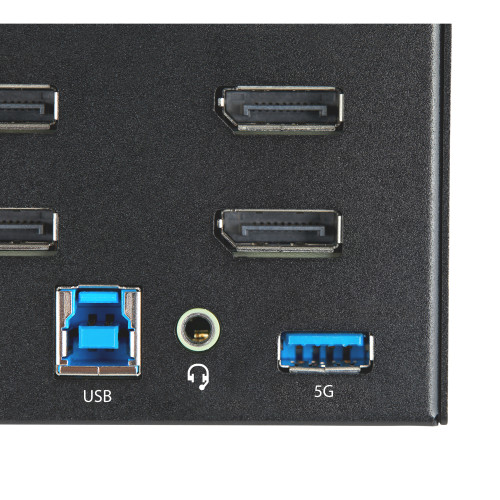

StarTech.com 2 Port Quad Monitor DisplayPort KVM Switch - 4K 60Hz UHD HDR - Desktop 4K DP 1.2 KVM with 2 Port USB 3.0 Hub (5Gbps) & 4x USB 2.0 HID Ports, Audio - Hotkey Switching - TAA
- Brand: StarTech.com
- Product Code: SV231QDPU34K
- Availability: In Stock
-
$549.99
