Share a mouse, keyboard, USB 5Gbps hub, and 4K 60Hz DisplayPort display between two DisplayPort-enabled computers, featuring EDID Emulation and HDCP engine
This DisplayPort KVM Switch enables users to switch between two desktops equipped with USB-A and DisplayPort. It allows sharing of a 4K 60Hz DisplayPort monitor, a keyboard, mouse, two USB 5Gbps devices, a stereo audio output device, and two additional USB 2.0 devices.
EDID Control for Display Compatibility
This KVM supports resolutions up to 4K 60Hz, making it ideal for applications such as CAD/CAM, video editing, and content creation. It has been extensively tested to ensure compatibility across a wide range of devices and environments. HDCP Engine enables transmission of protected content. It also features flexible EDID management with options to retain, auto-detect, or default, reducing resolution mismatch issues and simplifying display-related troubleshooting for IT teams.
Customizable Switching
This universal KVM switch offers hotkey and push-button switching. Hotkeys allow independent switching of audio and video, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey inputs, and LEDs provide visual status feedback for the selected host.
No Drivers or Software Required
The TAA-compliant KVM Switch offers universal compatibility and works with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM provides BIOS/UEFI control and is compatible with all hardware platforms, including Intel, AMD, and Apple Silicon (M-Series).
Reliable Performance
The rugged metal case helps prevent electromagnetic interference (EMI). 4kV Air/4kV Contact ESD protection enhances the reliability and longevity of the KVM. The included set of rubber feet protect the work surface from scratches and keep KVM in place during operation.
This DisplayPort KVM Switch enables users to switch between two desktops equipped with USB-A and DisplayPort. It allows sharing of a 4K 60Hz DisplayPort monitor, a keyboard, mouse, two USB 5Gbps devices, a stereo audio output device, and two additional USB 2.0 devices.
EDID Control for Display Compatibility
This KVM supports resolutions up to 4K 60Hz, making it ideal for applications such as CAD/CAM, video editing, and content creation. It has been extensively tested to ensure compatibility across a wide range of devices and environments. HDCP Engine enables transmission of protected content. It also features flexible EDID management with options to retain, auto-detect, or default, reducing resolution mismatch issues and simplifying display-related troubleshooting for IT teams.
Customizable Switching
This universal KVM switch offers hotkey and push-button switching. Hotkeys allow independent switching of audio and video, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey inputs, and LEDs provide visual status feedback for the selected host.
No Drivers or Software Required
The TAA-compliant KVM Switch offers universal compatibility and works with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM provides BIOS/UEFI control and is compatible with all hardware platforms, including Intel, AMD, and Apple Silicon (M-Series).
Reliable Performance
The rugged metal case helps prevent electromagnetic interference (EMI). 4kV Air/4kV Contact ESD protection enhances the reliability and longevity of the KVM. The included set of rubber feet protect the work surface from scratches and keep KVM in place during operation.
| Design | |
| Hot keys | Yes |
| Housing material | Steel |
| LED indicators | Yes |
| Maximum cable length | 3 m |
| Product colour | Black |
| Push button | Yes |
| Display | |
| Built-in display | No |
| HD type | 4K Ultra HD |
| On Screen Display (OSD) | No |
| Features | |
| Data transfer rate (max) | 5 Gbit/s |
| Graphics | |
| Maximum resolution | 3840 x 2160 pixels |
| Logistics data | |
| Master (outer) case height | 300 mm |
| Master (outer) case length | 257 mm |
| Master (outer) case width | 397 mm |
| Products per master (outer) case | 6 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |

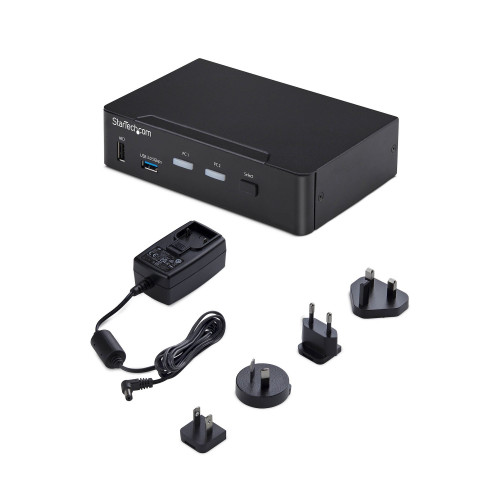

| AC adapter included | Yes |
| IP control | No |
| Packaging content | |
| Rubber feet | Yes |
| Performance | |
| Scan interval | 3,8,15,30 s |
| Ports & interfaces | |
| Audio connections | Yes |
| Console DisplayPorts ports quantity | 1 |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| Console USB ports quantity | 4 |
| DC-in jack | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 2 |
| Number of microphone inputs | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| USB hub | Yes |
| Video port type | DisplayPort |
| Power | |
| Compatible power plug types | AU, EU, UK |
| Input current | 1 A |
| Input voltage | 100 - 240 V |
| Output current | 3 A |
| Power consumption (typical) | 36 W |
| Power plug type | Type M |
| Power source | DC |
| Technical details | |
| Compliance certificates | Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| Mean time between failures (MTBF) | 130000 h |
| Rack mounting | No |
| Weight & dimensions | |
| Depth | 160 mm |
| Height | 40 mm |
| Package depth | 184 mm |
| Package height | 89 mm |
| Package width | 238 mm |
| Weight | 640 g |
| Width | 100 mm |

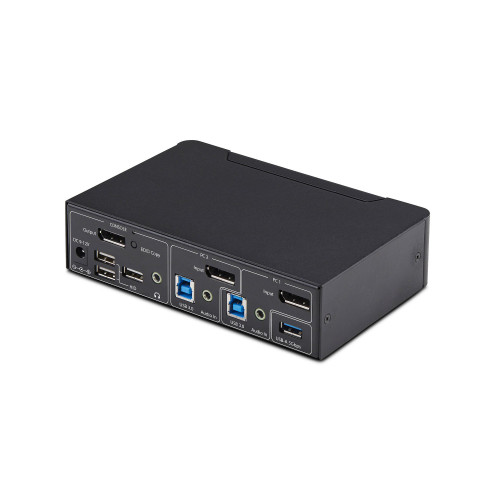

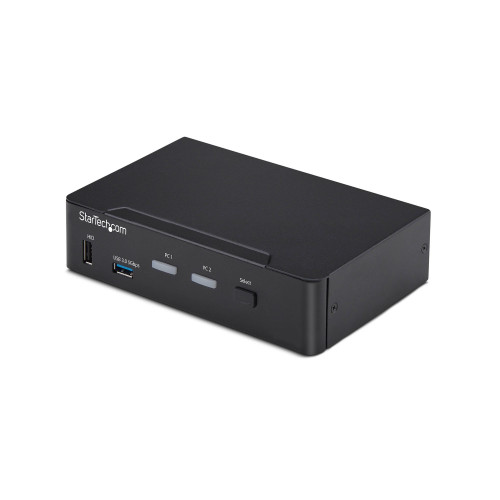

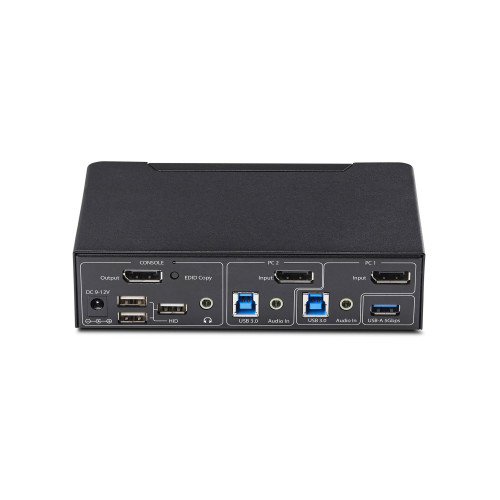

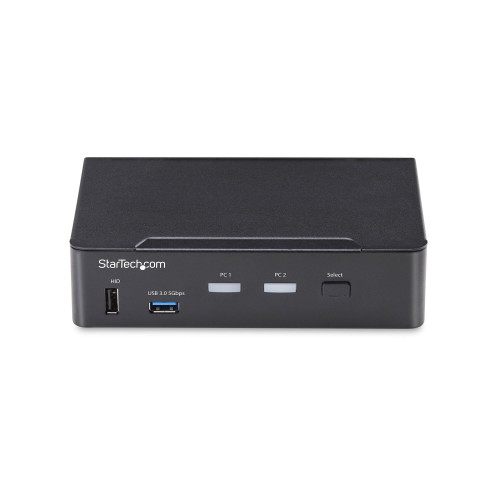

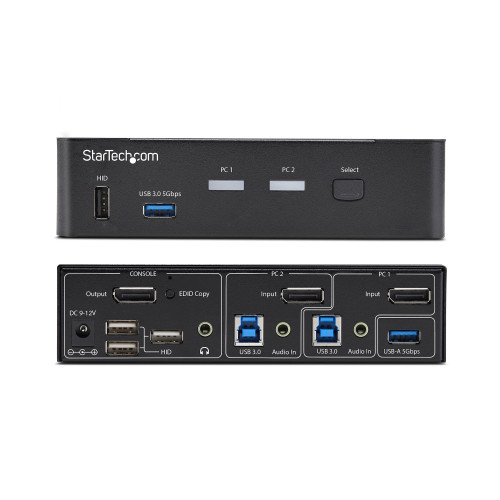

StarTech.com 2-Port DisplayPort KVM Switch, 4K 60Hz, DP 1.2, EDID Management, 2-Port USB 3.0 Hub, 4x USB HID Ports, TAA Compliant
- Brand: StarTech.com
- Product Code: P2AD122-KVM-SWITCH
- Availability: In Stock
-
$384.83
