B760M-A AX
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A AX provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A AX provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
| BIOS | |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS button | Y |
| Design | |
| Component for | PC |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 4 |
| Features | |
| Motherboard chipset family | Intel |
| Number of HDDs supported | 6 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| 12V power connector | Y |
| ATX Power connector (24-pin) | Y |
| Chassis intrusion connector | Y |
| CPU fan connector | Y |
| EPS power connector (8-pin) | Y |
| Front panel audio connector | Y |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |
| RGB LED pin header | Y |
| S/PDIF out connector | Y |
| TPM connector | Y |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| Memory | |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Non-ECC | Y |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 7200 MHz |
| Supported memory clock speeds | 7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Y |
| Network | |
| Bluetooth | Y |
| Bluetooth version | 5.2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Y |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Y |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Packaging content | |
| Cables included | SATA |
| Performance | |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel B760 |
| Motherboard form factor | micro ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Ports & interfaces | |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line-in | Y |
| Microphone in | Y |
| Number of SATA III connectors | 6 |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Processor | |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Rear panel I/O ports | |
| WiFi-AP antenna jack | 1 |
| Storage | |
| Number of storage drives supported | 8 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Y |
| Supported storage drive types | HDD & SSD |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| Weight & dimensions | |
| Depth | 244 mm |
| Width | 244 mm |

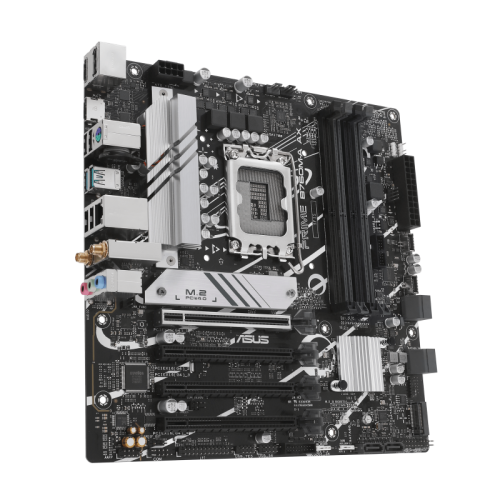

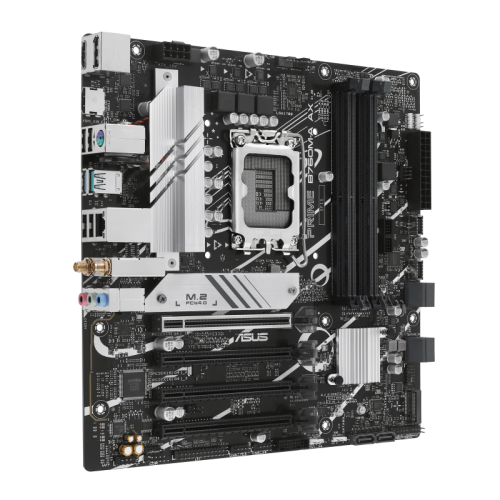

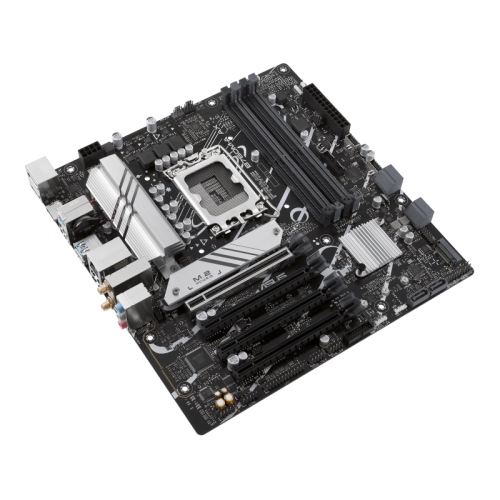

ASUS PRIME B760M-A AX motherboard Intel B760 LGA 1700 micro ATX
- Brand: Asus
- Product Code: PRIME B760M-A AX
- Availability: In Stock
-
$131.31
