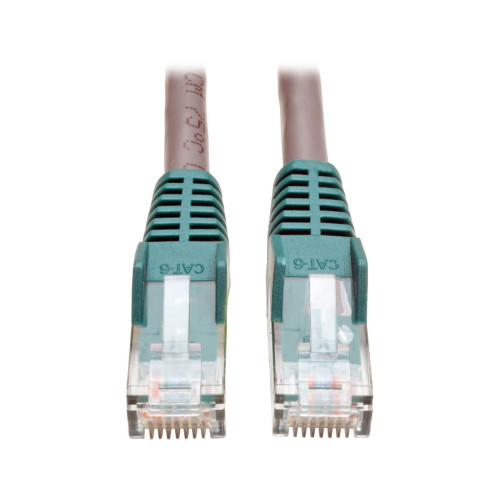

This Gray Cat6 crossover molded cable has two standard RJ45 molded male connectors featuring integral strain relief. The cable is designed to connect hub-to-hub, PC-to-PC or Mac-to-Mac and is perfect in conjunction with 10/100/1000Base-T networks. Molded connectors are a different color to help identify this cable as a crossover cable and not a standard Ethernet cable. Manufactured from PVC 4-pair stranded UTP and rated for 550 MHz/1 Gbps communication. Snagless Cat6 cables are also available. Meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL.
Cabling for Category 6 (Cat6) applications
Length: 7-ft. (2.13 m) color: gray with green snagless connectors. Connectors: RJ45 male
Crossover wiring designed to connect hub-to-hub or PC-to-PC
Feature molded connectors with integral strain relief
Snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off during installation
PVC 4-pair stranded UTP
Rated for 550MHz/ 1Gbps communication
Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL
Cabling for Category 6 (Cat6) applications
Length: 7-ft. (2.13 m) color: gray with green snagless connectors. Connectors: RJ45 male
Crossover wiring designed to connect hub-to-hub or PC-to-PC
Feature molded connectors with integral strain relief
Snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off during installation
PVC 4-pair stranded UTP
Rated for 550MHz/ 1Gbps communication
Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL
| Design | |
| Country of origin | China |
| Product colour | Grey |
| Features | |
| Cable length | 2.13 m |
| Cable shielding | U/UTP (UTP) |
| Cable standard | Cat6 |
| Conductor type | Stranded |
| Connector 1 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 | RJ-45 |
| Connector 2 gender | Male |
| Frequency | 550 MHz |
| Jacket material | Polyvinyl chloride (PVC) |
| Snagless cable boot | Y |
| Logistics data | |
| Harmonized System (HS) code | 8544.42.2000 |
| Master (outer) case gross weight | 6.17 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332124361 |
| Master (outer) case height | 210.8 mm |
| Master (outer) case length | 358.1 mm |
| Master (outer) case width | 358.1 mm |
| Products per master (outer) case | 10 pc(s) |
| Network | |
| Cabling technology | 10/100/1000Base-T(X) |
| Other features | |
| Data transfer rate | 1000 Mbit/s |
| Sustainability | |
| Sustainability certificates | RoHS |
| Technical details | |
| Networking standards | IEEE 802.3ab |
| Weight & dimensions | |
| Package depth | 12.7 mm |
| Package height | 228.6 mm |
| Package weight | 90 g |
| Package width | 177.8 mm |
Tripp Lite N210-007-GY Cat6 Gigabit Crossover Molded UTP Ethernet Cable (RJ45 M/M), Gray, 7 ft. (2.13 m)
- Brand: Tripp-Lite
- Product Code: N210-007-GY
- Availability: In Stock
-
$4.09
