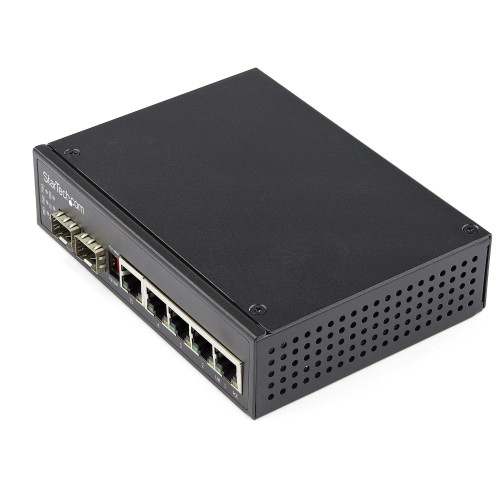

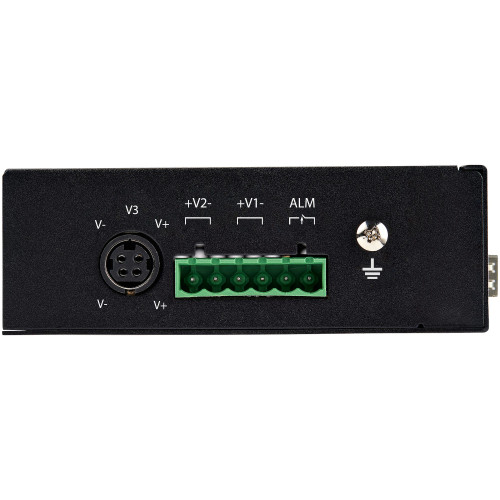

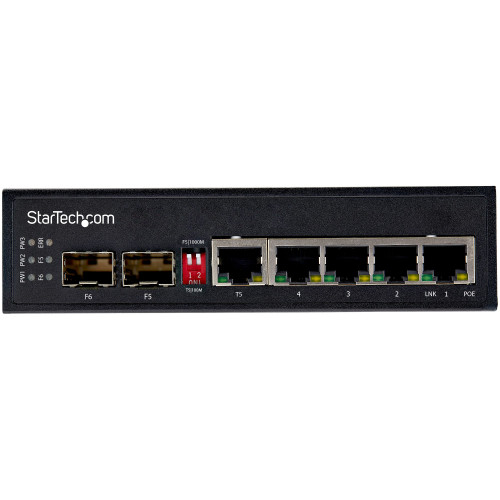

Rugged Ethernet Switch | 5 RJ45 (4 PoE) | 2 SFP Slots | 30W PoE+ | 48V DC | DIN Rail MountableEasily deploy or scale your network with this Gigabit Ethernet switch, features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/Open SFP port for use as an uplink or for non-PoE devices. It features an IP-30 housing, compact design, and is wall and DIN rail mountable.Power Over Ethernet & 48V VoltageWith a total power budget of 120W, this PSE Ethernet switch provides up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:• Cameras• Sensors• Wi-Fi access pointsUses Cat 5e (or higher rated) Ethernet cabling.Designed for Harsh EnvironmentsIndustrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.• Vibration: EN 60068-2-6• Shock: EN 60068-2-27• Free-Fall: EN 60068-2-32500,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.Dual Power InputsDual power inputs provide redundancy. Accepts terminal block power or DIN power connectors for additional power supply flexibility, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.The IES1G52UPDIN is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage
| Data transmission | |
| Packet buffer memory | 1 MB |
| Switching capacity | 12 Gbit/s |
| Design | |
| Certification | CE, RoHS, FCC, UL |
| DIN rail mounting | Y |
| Housing material | Steel |
| LED indicators | Link, PoE, Power |
| Product colour | Black |
| Wall mountable | Y |
| Features | |
| Full duplex | Y |
| Power over Ethernet (PoE) | Y |
| Safety | EN60950-1, MET (UL) 60950-1 |
| Surge protection | Y |
| Total Power over Ethernet (PoE) budget | 120 W |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 225 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case width | 355 mm |
| Products per master (outer) case | 10 pc(s) |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| 10G support | N |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Copper ethernet cabling technology | 10BASE-T, 10BASE-TX, 1000BASE-T, 1000BASE-TX |
| Flow control support | Y |
| Jumbo frames | 9000 |
| Jumbo frames support | Y |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Other features | |
| DC input voltage | 48 - 56 V |
| Quick start guide | Y |
| Packaging data | |
| Terminal block included | Y |
| Performance | |
| International Protection (IP) code | IP30 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Terminal block port | Y |
| Power | |
| Power consumption (max) | 126 W |
| Surge protection voltage | 2 kV |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Protocols | |
| Supported network protocols | CSMA/CD |
| Technical details | |
| Mean time between failures (MTBF) | 525058 h |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Rack mounting | N |
| Weight & dimensions | |
| Depth | 142 mm |
| Height | 36.2 mm |
| Package depth | 162 mm |
| Package height | 64 mm |
| Package weight | 737 g |
| Package width | 211 mm |
| Weight | 492 g |
| Width | 105 mm |
StarTech.com Industrial 6 Port Gigabit Ethernet Switch 4 PoE RJ45 +2 SFP Slots 30W PoE+ 48VDC 10/100/1000 Power Over Ethernet LAN Switch -40C to 75C with DIN Connector/Mountable
- Brand: StarTech.com
- Product Code: IES1G52UPDIN
- Availability: In Stock
-
$236.33
