TP-Link’s JetStream L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link JetStream L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Software Defined Networking (SDN) with Cloud Access
Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network——all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Software Defined Networking (SDN) with Cloud Access
Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network——all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Data transmission | |
Forwarding rate | 95.23 Mpps |
MAC address table | 16000 entries |
Number of static routes | 48 |
Packet buffer memory | 12 MB |
Switching capacity | 128 Gbit/s |
Design | |
Form factor | 1U |
LED indicators | Y |
Product colour | Black |
Features | |
Number of fans | 2 fan(s) |
Power over Ethernet (PoE) | Y |
Total Power over Ethernet (PoE) budget | 384 W |
Logistics data | |
Harmonized System (HS) code | 85176990 |
Management features | |
Cloud-managed | Y |
MIB support | Yes |
Quality of Service (QoS) support | Y |
Switch layer | L2/L3 |
Switch type | Managed |
Web-based management | Y |
Multicast features | |
Multicast support | Y |
Network | |
10G support | Y |
Active link detection | Y |
Broadcast storm control | Y |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Flow control support | Y |
Head-of-line (HOL) blocking | Y |
Jumbo frames | 9000 |
Jumbo frames support | Y |
Link aggregation | Y |
Policy-based routing | Y |
Port mirroring | Y |
Rate limiting | Y |
Spanning tree protocol | Y |
Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
VLAN support | Y |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 90% |
Operating temperature (T-T) | 0 - 45 °C |
Storage relative humidity (H-H) | 5 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Other features | |
Number of VLANs | 4000 |
Quick start guide | Y |
Packaging content | |
Cables included | LAN (RJ-45) |
Performance | |
Console port | RJ-45/Micro-USB |
Ports & interfaces | |
Basic switching RJ-45 Ethernet ports quantity | 24 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Gigabit Ethernet (copper) ports quantity | 24 |
SFP+ module slots quantity | 4 |
Power | |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (max) | 465.8 W |
Power source | AC |
Power over Ethernet (PoE) | |
Power over Ethernet plus (PoE+) ports quantity | 24 |
Power supply | |
Power supply included | Y |
Protocols | |
Management protocols | SNMPv1/v2c/v3, SNTP |
Security | |
Access Control List (ACL) | Y |
BPDU filtering/protection | Y |
DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
IGMP snooping | Y |
IP-MAC-Port binding | Y |
Loop protection | Y |
SSH/SSL support | Y |
System event log | Y |
Technical details | |
Networking standards | IEEE 802.11d, IEEE 802.1s, IEEE 802.1w |
Rack mounting | Y |
Weight & dimensions | |
Depth | 330 mm |
Height | 44 mm |
Width | 440 mm |

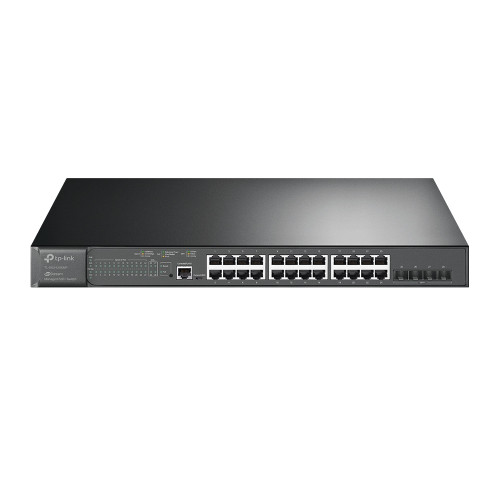

TP-Link JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+
- Brand: TP-Link
- Product Code: TL-SG3428XMP
- Availability: In Stock
-
$582.48
