8-Port Unmanaged Ethernet Switch Connects Your Devices to a LAN
This space-saving switch transmits data over an Ethernet network. Eight auto-negotiating 10/100 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.
Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NFI-U08-2 adds 10/100 Mbps Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).
Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NFI-U08-2 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.
Works with the Most Popular Web Browsers
The NFI-U08-2 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NFI-U08-2 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).

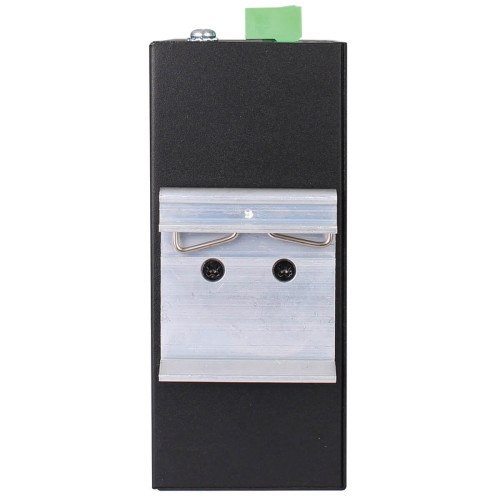

Pre-Installed DIN Rail Clip Allows for Convenient Installation

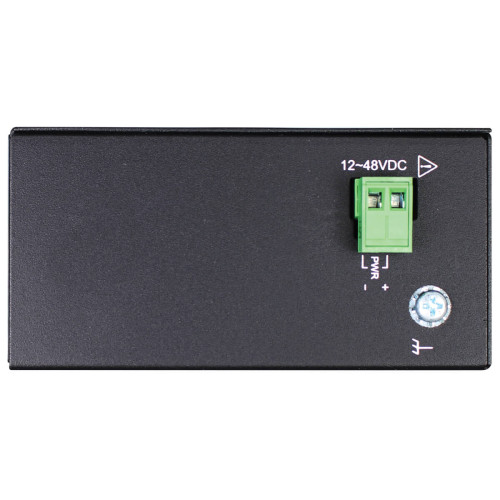

The open-type device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. A 2-pin 12–48VDC terminal block supplies power input. Device power shall be supplied by 61010-2-201 R/C power with LPS (Limited Power Source).
TAA-Compliant for GSA Schedule Purchases
The NFI-U08-2 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
This space-saving switch transmits data over an Ethernet network. Eight auto-negotiating 10/100 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.
Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NFI-U08-2 adds 10/100 Mbps Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).
Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NFI-U08-2 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.
Works with the Most Popular Web Browsers
The NFI-U08-2 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NFI-U08-2 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).
Pre-Installed DIN Rail Clip Allows for Convenient Installation
The open-type device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. A 2-pin 12–48VDC terminal block supplies power input. Device power shall be supplied by 61010-2-201 R/C power with LPS (Limited Power Source).
TAA-Compliant for GSA Schedule Purchases
The NFI-U08-2 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
| Data transmission | |
| Switching capacity | 1.6 Gbit/s |
| Design | |
| Country of origin | Taiwan |
| DIN rail mounting | Y |
| Housing material | Metal |
| LED indicators | LAN, Link, Power |
| Product colour | Black |
| Features | |
| Power over Ethernet (PoE) | N |
| Logistics data | |
| Harmonized System (HS) code | 8517.62.0020 |
| Master (outer) case gross weight | 6.85 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332264555 |
| Master (outer) case height | 260.1 mm |
| Master (outer) case length | 384 mm |
| Master (outer) case width | 334 mm |
| Products per master (outer) case | 10 pc(s) |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| 10G support | N |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Ethernet LAN data rates | 100 Mbit/s |
| Flow control support | Y |
| MAC address auto-learning supported | Y |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Other features | |
| DC input voltage | 12 - 48 V |
| Packaging content | |
| Manual | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | Terminal block (2-pin) |
| Power | |
| Input current | 0.2 A |
| Power consumption (typical) | 3 W |
| Power supply | |
| Power supply included | N |
| Sustainability | |
| Sustainability certificates | CE, REACH, RoHS |
| Sustainability compliance | Y |
| Technical details | |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Rack mounting | N |
| Weight & dimensions | |
| Depth | 115.8 mm |
| Height | 99.6 mm |
| Package depth | 182.9 mm |
| Package height | 62 mm |
| Package weight | 580 g |
| Package width | 232.9 mm |
| Weight | 440 g |
| Width | 50 mm |

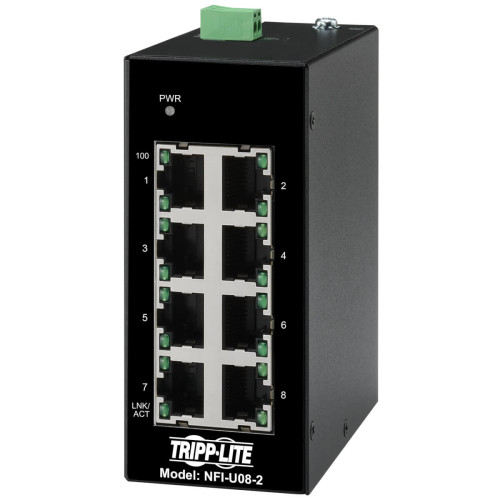

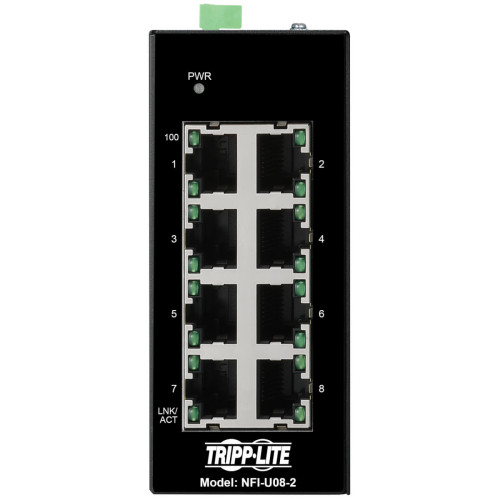

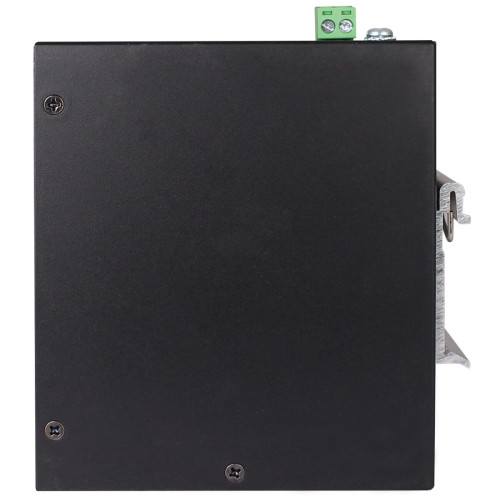

Tripp Lite NFI-U08-2 8-Port Unmanaged Industrial Ethernet Switch - 10/100 Mbps, Ruggedized, -40° to 75°C, DIN Mount
- Brand: Tripp-Lite
- Product Code: NFI-U08-2
- Availability: In Stock
-
$109.28
