Add up to 10 different GbE devices to your network, using 8 RJ45 (PoE+) and 2 fiber-optic connections, with intelligent Layer 2 managementEasily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet ports (PoE+) and two fiber-optic SFP slots. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.Expand your networkThis versatile switch adapts to your network needs by providing two open SFP slots and eight RJ45 Ethernet ports (PoE+), providing both fiber and copper connections in a single network device. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch enables you to connect up to eight RJ45 PoE+ devices, so different users can share files and devices, such as printers and scanners, over a LAN connection.Supports PoE+ for flexible useDual power input (terminal block and DC plug) provides flexible power options. The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (200W budget).Wall-mountable with front accessWall-mount the compact Gigabit switch to provide convenient front access to ports and indicators. It’s ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.Efficient Layer 2 managementThe switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.Rugged IP30 industrial designThis rugged network switch features an IP30-rated metal housing and extended temperature range of -40°C to 75°C, which makes it ideal for a wide range of operating conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.Reliable connection for seamless network performanceWith support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.The IES101GP2SFW is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage
Data transmission
Maximum data transfer rate 2000 Mbit/s
Store-and-forward Y
Design
Certification CE, FCC, RoHS
Housing material Steel
LED indicators Activity, Link
Maximum cable length 100 m
Product colour Black
Wall mountable Y
Features
Full duplex Y
Power over Ethernet (PoE) Y
Total Power over Ethernet (PoE) budget 200 W
Logistics data
Harmonized System (HS) code 85176990
Master (outer) case height 470 mm
Master (outer) case length 370 mm
Master (outer) case width 325 mm
Products per master (outer) case 10 pc(s)
Management features
Quality of Service (QoS) support Y
Switch layer L2
Switch type Managed
Network
10G support N
Auto MDI/MDI-X Y
Flow control support Y
Link aggregation Y
Spanning tree protocol Y
Virtual LAN features Tagged VLAN
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -40 - 75 °C
Storage temperature (T-T) -40 - 90 °C
Other features
Buffer size 512 KB
Quick start guide Y
Packaging data
Terminal block included Y
Performance
International Protection (IP) code IP30
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP module slots quantity 2
Terminal block port Y
Power
Input current 1 A
Input voltage 12 - 48 V
Power plug type Type M
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet plus (PoE+) ports quantity 8
Security
Access Control List (ACL) Y
Technical details
Mean time between failures (MTBF) 100000 h
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Rack mounting N
Weight & dimensions
Depth 134 mm
Height 25 mm
Package depth 300 mm
Package height 90 mm
Package weight 900 g
Package width 170 mm
Weight 618 g
Width 178 mm

Write a review

Please login or register to review

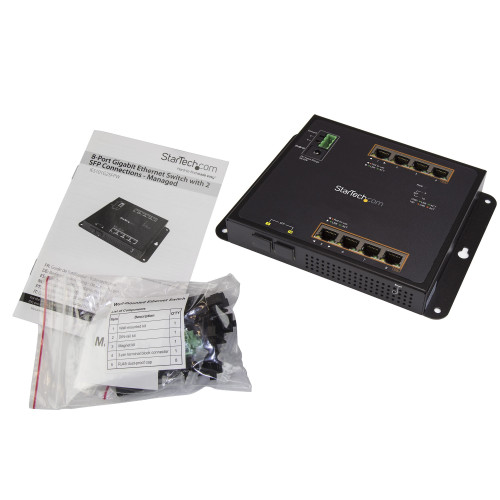

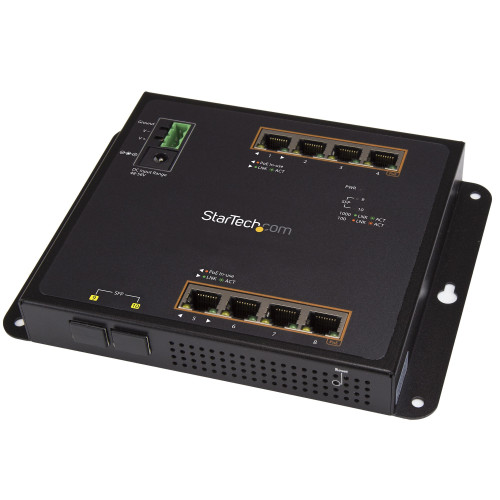

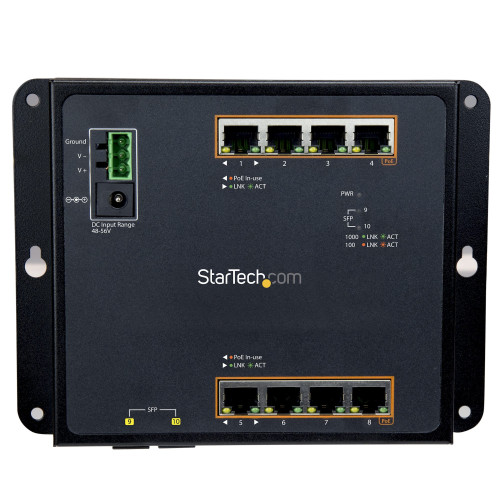

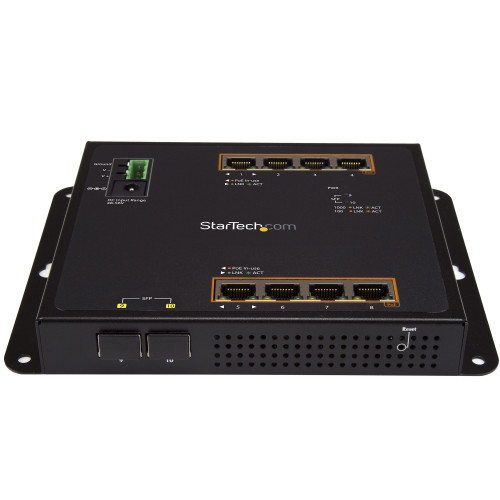

StarTech.com Industrial 8 Port Gigabit PoE+ Switch w/2 SFP MSA Slots - 30W - Layer/L2 Switch Hardened GbE Managed - Rugged High Power Gigabit Ethernet Network Switch IP-30/-40 C to 75 C

  • Brand: StarTech.com
  • Product Code: IES101GP2SFW
  • Availability: In Stock
  • $416.52
