What This Product Does
The TP-Link 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG105S adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105S can save power consumption, making it an eco-friendly solution for your home or office network.
Gigabit Switch
Featured with 5 10/100/1000Mbps ports, TL-SG105S greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105S 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Traffic Optimization
802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.
Easy to use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.
The TP-Link 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG105S adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105S can save power consumption, making it an eco-friendly solution for your home or office network.
Gigabit Switch
Featured with 5 10/100/1000Mbps ports, TL-SG105S greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105S 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Traffic Optimization
802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.
Easy to use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.
| Data transmission | |
| Forwarding rate | 7.4 Mpps |
| MAC address table | 2048 entries |
| Packet buffer memory | 1 MB |
| Store-and-forward | Y |
| Switching capacity | 10 Gbit/s |
| Design | |
| Certification | CE, FCC, RoHS |
| Housing material | Steel |
| LED indicators | Y |
| Product colour | Black |
| Wall mountable | Y |
| Features | |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Y |
| Power over Ethernet (PoE) | N |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Quality of Service (QoS) support | Y |
| Switch layer | L2 |
| Switch type | Unmanaged |
| Multicast features | |
| Multicast support | Y |
| Network | |
| 10G support | N |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Y |
| Jumbo frames | 16000 |
| Jumbo frames support | Y |
| MAC address auto-aging supported | Y |
| MAC address auto-learning supported | Y |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Packaging content | |
| Cables included | AC |
| User guide | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
| Power | |
| AC input frequency | 50 Hz |
| AC input voltage | 220 V |
| Heat dissipation | 7.83 BTU/h |
| Input current | 0.6 A |
| Power consumption (max) | 2.3 W |
| Power supply | |
| Power supply included | Y |
| Security | |
| IGMP snooping | Y |
| Technical details | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Rack mounting | N |
| Weight & dimensions | |
| Depth | 98 mm |
| Height | 25 mm |
| Package type | Box |
| Width | 100 mm |

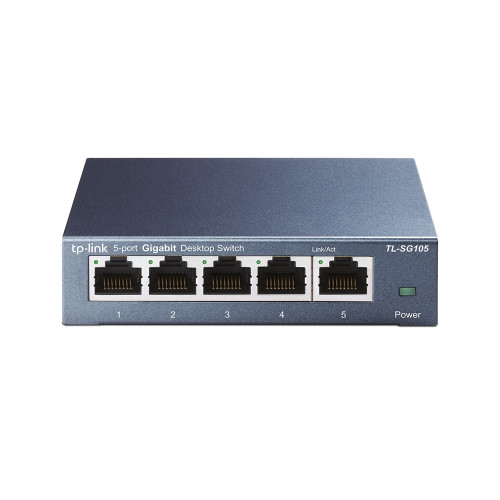

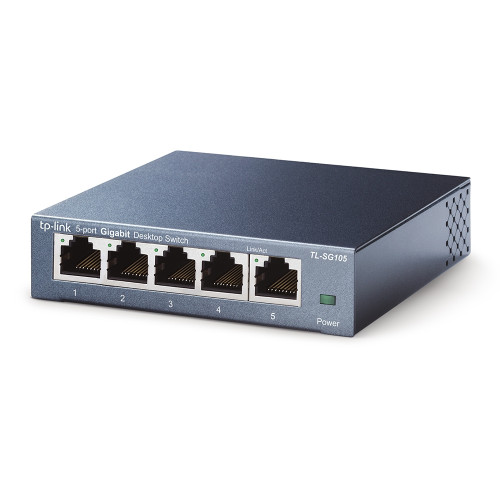

TP-Link TL-SG105 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
- Brand: TP-Link
- Product Code: TL-SG105
- Availability: In Stock
