Data transmission
Forwarding rate
18.6 Mpps
MAC address table
4000 entries
Packet buffer memory
8 MB
Store-and-forward
Yes
Switching capacity
25 Gbit/s
Design
Housing material
Metal
LED indicators
Activity, Link, Power
Product colour
Black
Features
Power over Ethernet (PoE)
No
Management features
Quality of Service (QoS) support
Yes
Reset button
Yes
Switch type
Unmanaged
Network
10G support
No
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Copper ethernet cabling technology
2.5GBASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Flow control support
Yes
Jumbo frames
12
Jumbo frames support
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Other features
DC input voltage
9 V
Packaging content
Cables included
Power
Rubber feet
Yes
User guide
Yes
Performance
Fanless
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)

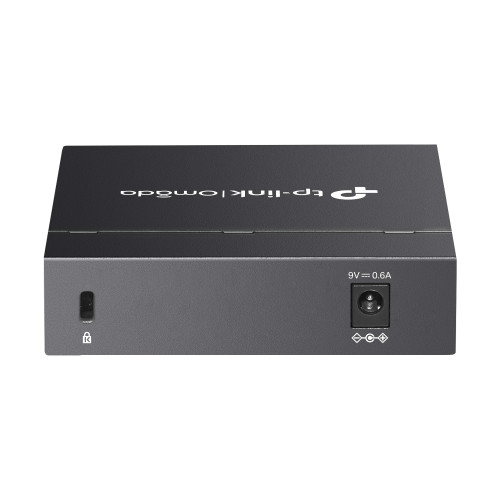

Power connector
DC-in jack
Power
Heat dissipation
19.759 BTU/h
Input current
0.6 A
Power consumption (max)
5.81 W
Power source
DC
Power supply
Power supply included
Yes
Security
IGMP snooping
Yes
Technical details
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Networking standards
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Rack mounting
No
Weight & dimensions
Depth
98 mm
Height
25 mm
Width
99.8 mm

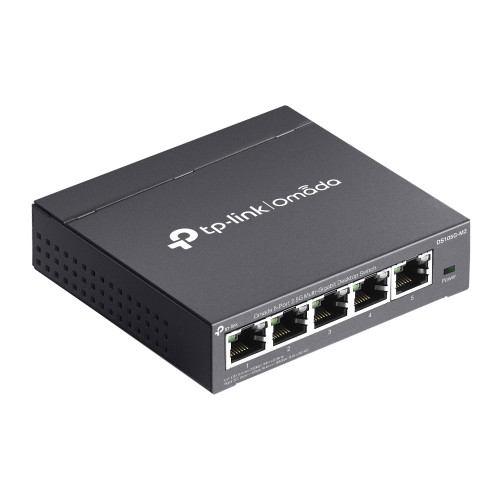

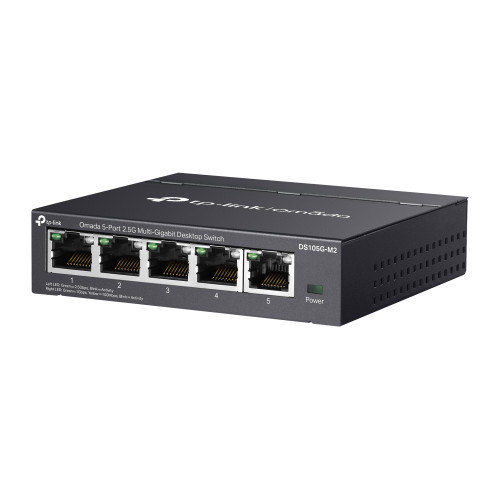

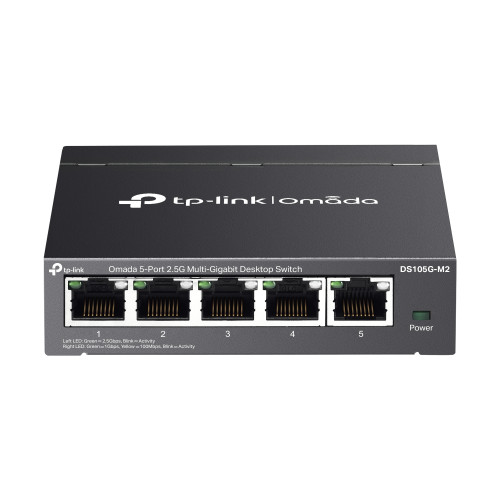

TP-Link Omada DS105G-M2 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black
Brand: TP-Link
Product Code: DS105G-M2
Availability: In Stock
Specs: Icecat
