Data transmission
Forwarding rate	29.8 Mpps
MAC address table	4000 entries
Packet buffer memory	8 MB
Store-and-forward	Yes
Switching capacity	40 Gbit/s
Design
Housing material	Metal
LED indicators	Activity, Link, Power
Product colour	Black

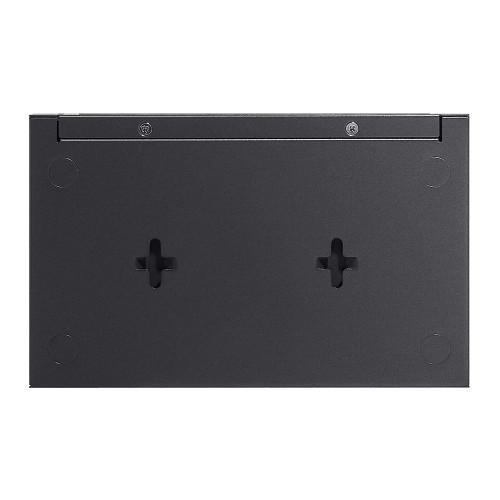

Wall mountable	Yes
Features
Power over Ethernet (PoE)	No
Management features
Quality of Service (QoS) support	Yes
Reset button	Yes
Switch type	Unmanaged
Network
10G support	No
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Copper ethernet cabling technology	2.5GBASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Flow control support	Yes
Jumbo frames	12
Jumbo frames support	Yes
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C
Other features
DC input voltage	12 V
Packaging content
Cables included	Power
Rubber feet	Yes
User guide	Yes
Performance
Fanless	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)

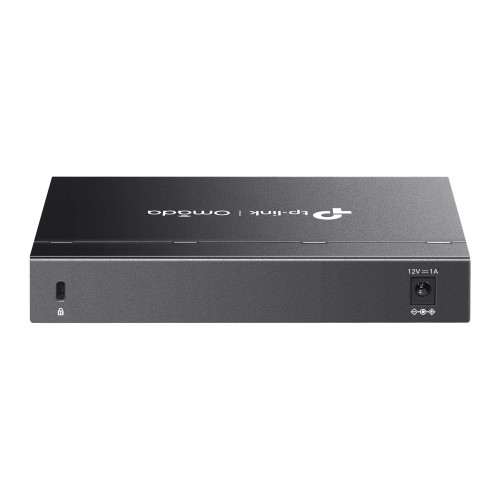

Power connector	DC-in jack
Power
Heat dissipation	30.158 BTU/h
Input current	1 A
Power consumption (max)	8.87 W
Power source	DC
Power supply
Power supply included	Yes
Security
IGMP snooping	Yes
Technical details
Compliance certificates	CE, EAC, Federal Communications Commission (FCC), RoHS, UKCA
Networking standards	IEEE 802.1p, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Weight & dimensions
Depth	101 mm
Height	25.4 mm
Width	158 mm

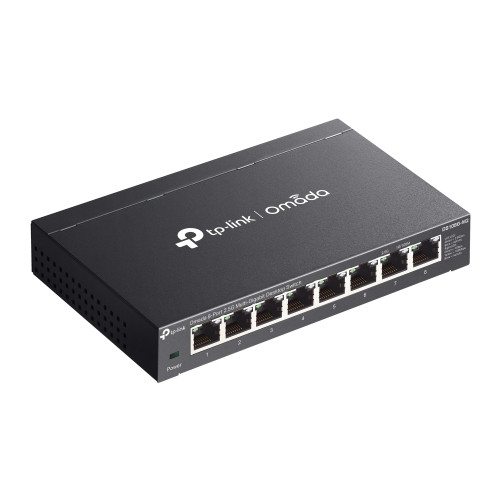

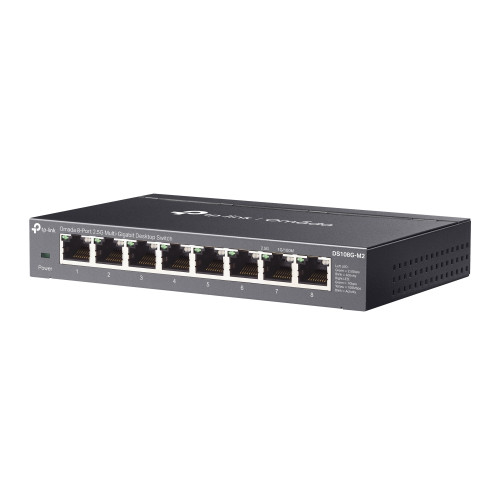

TP-Link Omada DS108G-M2 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black
