Data transmission
Forwarding rate
14.88 Mpps
MAC address table
4000 entries
Switching capacity
20 Gbit/s
Design
Housing material
Metal
LED indicators
Activity, Link, PoE, Power
Product colour
Black
Wall mountable
Yes
Features
Full duplex
Yes
Plug and Play
Yes
Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
123 W
Management features
Quality of Service (QoS) support
Yes
Switch type
Unmanaged
Network
10G support
No
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
Ethernet LAN data rates
10,100,1000 Mbit/s
Flow control support
Yes
Half duplex
Yes
Jumbo frames
16
Jumbo frames support
Yes
MAC address auto-aging supported
Yes
MAC address auto-learning supported
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Other features
DC input voltage
53.5 V
Packaging content
Cables included
Power
User guide
Yes
Performance
Fanless
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
10
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
1
Power connector
AC/DC
Power
Heat dissipation
482.17 BTU/h
Input current
2.43 A
Power consumption (max)
141.4 W
Power source
DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
8
Power supply
Power supply included
Yes
Technical details
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Rack mounting
No
Weight & dimensions
Depth
126 mm
Height
26 mm
Width
209 mm

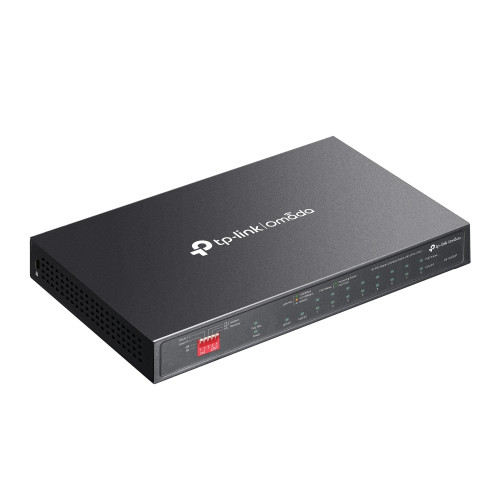

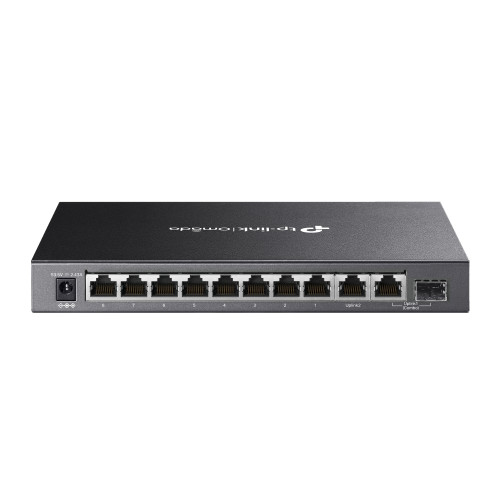

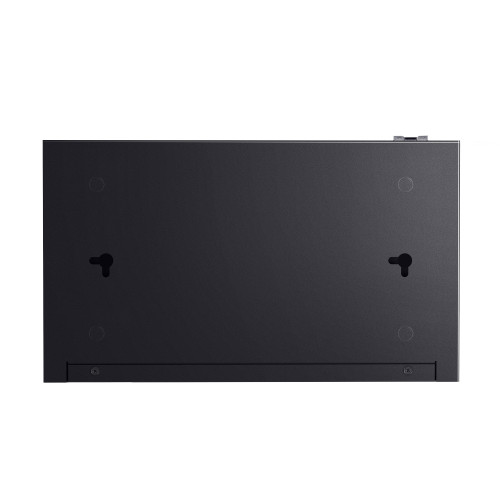

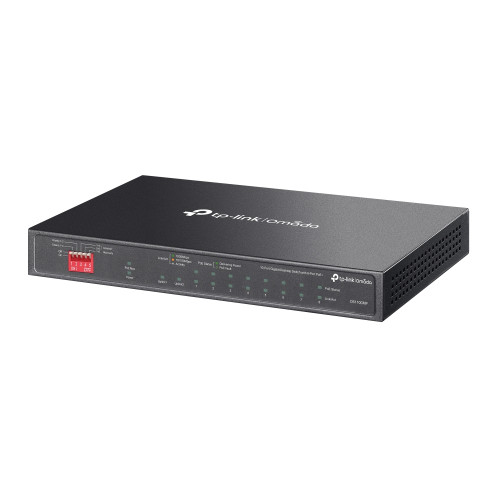

TP-Link Omada DS110GMP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Brand: TP-Link
Product Code: DS110GMP
Availability: In Stock
Specs: Icecat
