Data transmission
Forwarding rate
7.4 Mpps
MAC address table
2000 entries
Packet buffer memory
1 MB
Store-and-forward
Yes
Switching capacity
10 Gbit/s
Design
Housing material
Steel
LED indicators
Activity, Link, Power
Product colour
Black
Features
Power over Ethernet (PoE)
No
Management features
Quality of Service (QoS) support
Yes
Reset button
Yes
Switch type
Unmanaged
Network
10G support
No
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN data rates
10,100,1000 Mbit/s
Jumbo frames
16
Jumbo frames support
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Other features
DC input voltage
5 V
Packaging content
Cables included
Power
User guide
Yes
Performance
Fanless
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack
Power
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Heat dissipation
10.54 BTU/h
Input current
0.6 A
Power consumption (max)
3.1 W
Power source
AC/DC
Power supply
Power supply included
Yes
Security
Loop protection
Yes
Technical details
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Networking standards
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Rack mounting
No
Weight & dimensions
Depth
97.8 mm
Height
25 mm
Width
99.8 mm

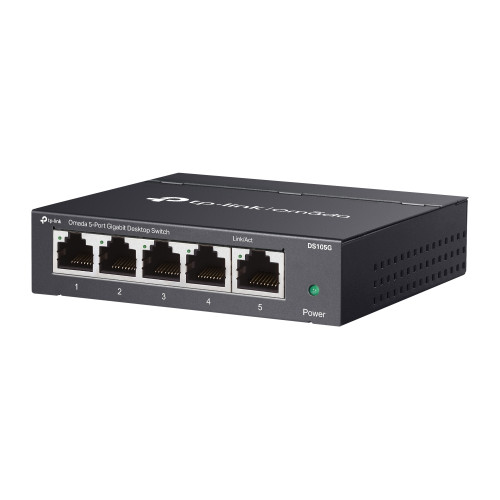

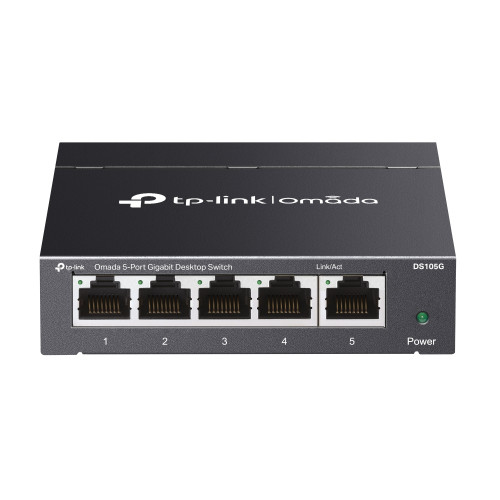

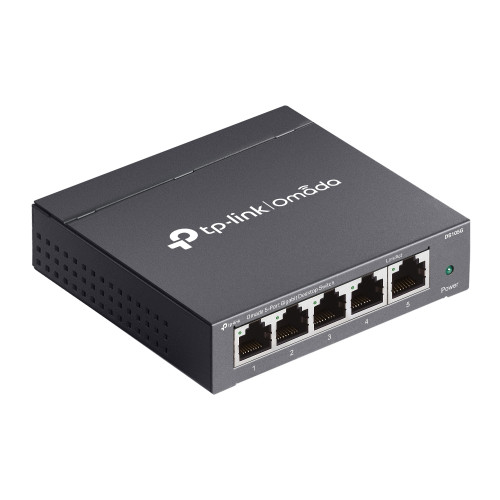

TP-Link Omada DS105G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Brand: TP-Link
Product Code: DS105G
Availability: In Stock
Specs: Icecat
