Data transmission
Forwarding rate
14.88 Mpps
MAC address table
8000 entries
Packet buffer memory
4 MB
Store-and-forward
Yes
Switching capacity
20 Gbit/s
Design
Product colour
Black

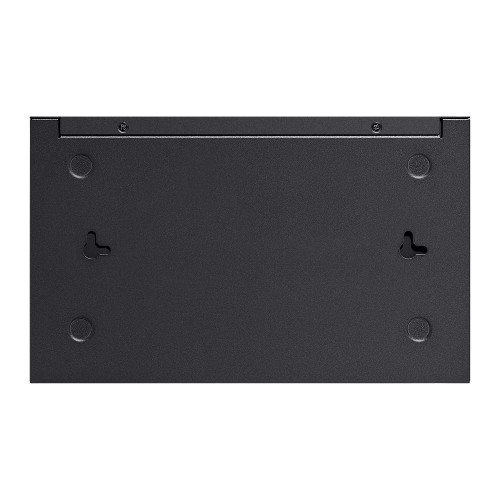

Wall mountable
Yes
Features
Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
123 W
Management features
Cloud-managed
Yes
Quality of Service (QoS) support
Yes
Reset button
Yes
Switch type
Managed
Network
10G support
No
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Flow control support
Yes
Jumbo frames
15
Jumbo frames support
Yes
Link aggregation
Yes
Port mirroring
Yes
Transmission distance (max)
0.25 km
Virtual LAN features
MTU VLAN, Port-based VLAN, Tagged VLAN
VLAN support
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Other features
DC input voltage
53.5 V
Packaging content
Cables included
AC
User guide
Yes
Performance
Fanless
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
10
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
1
Power
Input current
2.43 A
Power source
DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
8
Power supply
Power supply included
Yes
Security
DHCP features
DHCP client
IGMP snooping
Yes
Technical details
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Weight & dimensions
Depth
126 mm
Height
26 mm
Package type
Box
Width
209 mm

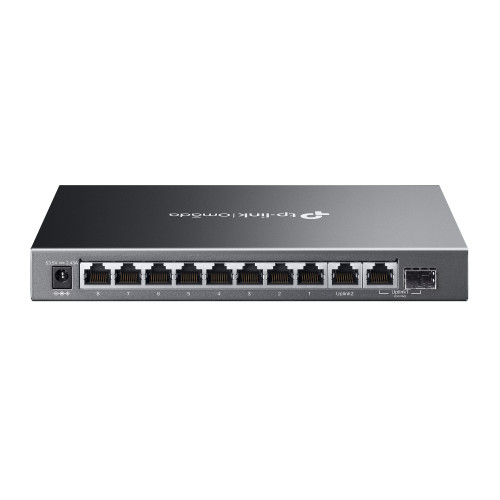

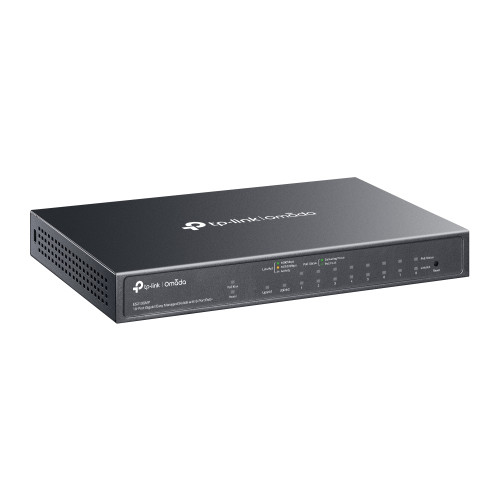

TP-Link Omada ES210GMP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Brand: TP-Link
Product Code: ES210GMP
Availability: In Stock
Specs: Icecat
