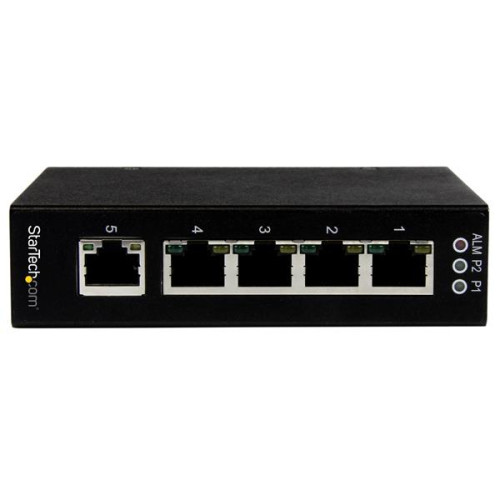

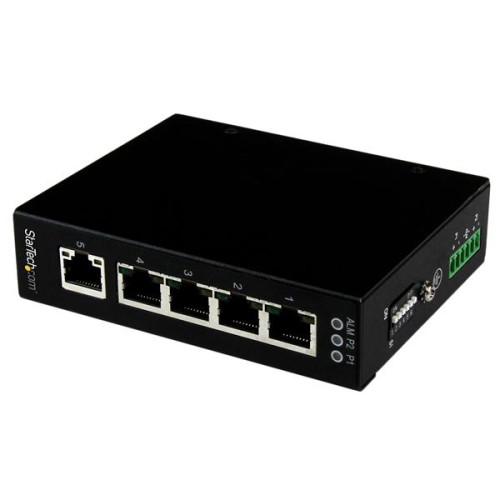

Network up to 5 Ethernet devices through a rugged, industrial Gigabit Ethernet switch - DIN / Wall Mountable
The IES51000 5-Port Industrial Ethernet Switch offers 5 Gigabit Ethernet ports in a compact, IP30-rated metal enclosure, making it the ideal network solution for harsh industrial environments such as factory floors, warehouses or large junction boxes.
Quickly connect your network devices with little to no configuration. This unmanaged industrial network switch supports 10/100/1000 Mbps transfer speeds, full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX, which helps to eliminate the hassle of troubleshooting mis-matched speed and duplex settings.

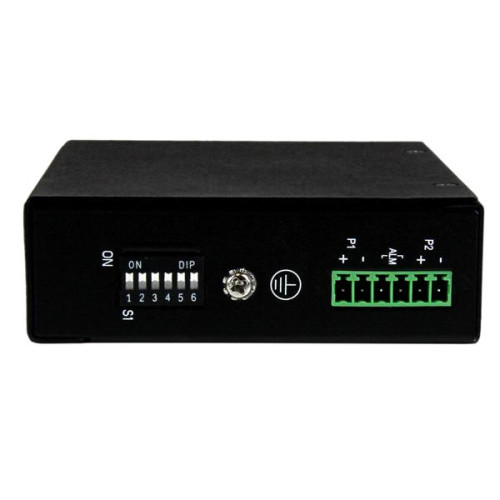

Providing seamless operation in the event of power dips or failures, the switch features redundant 12-58V DC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.
For easy installation and dependable performance in harsh environments, the switch can be DIN Rail or wall mounted and features a compact, IP30-rated enclosure with an extended operating temperature range (-40°C to 75°C).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Seamless performance even in harsh industrial conditions, with an extended temperature range and an IP30-rated enclosure
- Maintain device operation during power disruptions, with redundant power inputs

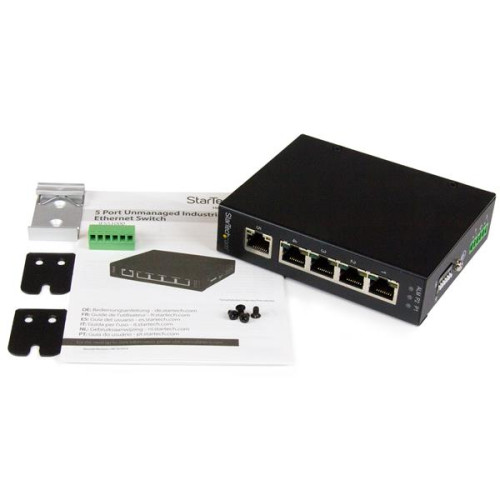

- Install the switch exactly where you need it, using the included DIN Rail & wall-mount brackets
The IES51000 5-Port Industrial Ethernet Switch offers 5 Gigabit Ethernet ports in a compact, IP30-rated metal enclosure, making it the ideal network solution for harsh industrial environments such as factory floors, warehouses or large junction boxes.
Quickly connect your network devices with little to no configuration. This unmanaged industrial network switch supports 10/100/1000 Mbps transfer speeds, full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX, which helps to eliminate the hassle of troubleshooting mis-matched speed and duplex settings.
Providing seamless operation in the event of power dips or failures, the switch features redundant 12-58V DC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.
For easy installation and dependable performance in harsh environments, the switch can be DIN Rail or wall mounted and features a compact, IP30-rated enclosure with an extended operating temperature range (-40°C to 75°C).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Seamless performance even in harsh industrial conditions, with an extended temperature range and an IP30-rated enclosure
- Maintain device operation during power disruptions, with redundant power inputs
- Install the switch exactly where you need it, using the included DIN Rail & wall-mount brackets
| Data transmission | |
| Store-and-forward | Y |
| Switching capacity | 2 Gbit/s |
| Design | |
| Certification | CE, FCC, RoHS, REACH |
| Housing material | Steel |
| LED indicators | Activity, Link, Power |
| Maximum cable length | 100 m |
| Product colour | Black |
| Wall mountable | Y |
| Features | |
| Full duplex | Y |
| Power over Ethernet (PoE) | N |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| 10G support | N |
| Auto MDI/MDI-X | Y |
| Jumbo frames support | Y |
| Link aggregation | Y |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Other features | |
| Buffer size | 128 KB |
| Packaging content | |
| Manual | Y |
| Screws included | Y |
| Packaging data | |
| DIN rail included | Y |
| Mounting brackets included | Y |
| Terminal block included | Y |
| Wall mounting kit | Y |
| Performance | |
| International Protection (IP) code | IP30 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Power | |
| Input voltage | 12 - 58 V |
| Power consumption (typical) | 3.63 W |
| Technical details | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u |
| Weight & dimensions | |
| Depth | 111 mm |
| Height | 28 mm |
| Package depth | 176 mm |
| Package height | 83 mm |
| Package weight | 523 g |
| Package width | 139 mm |
| Weight | 328 g |
| Width | 89 mm |
StarTech.com 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable
- Brand: StarTech.com
- Product Code: IES51000
- Availability: In Stock
-
$181.41
