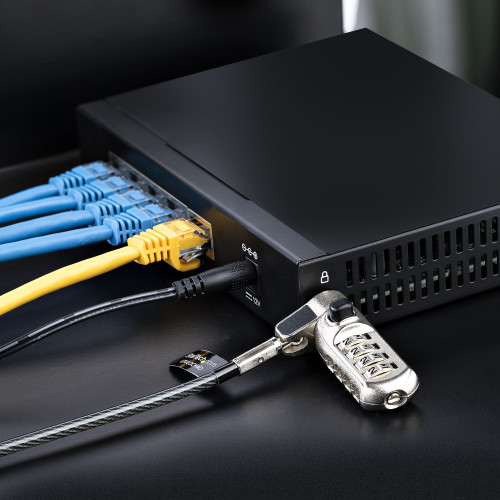

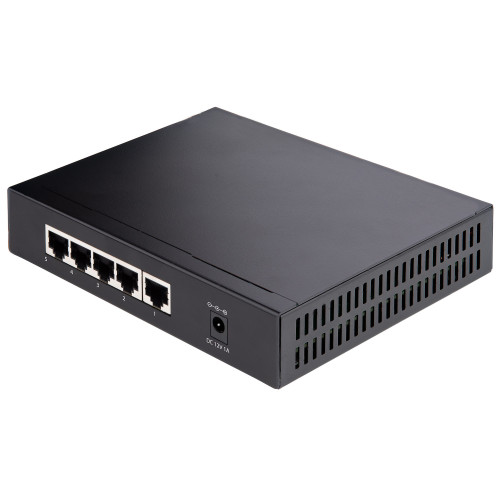

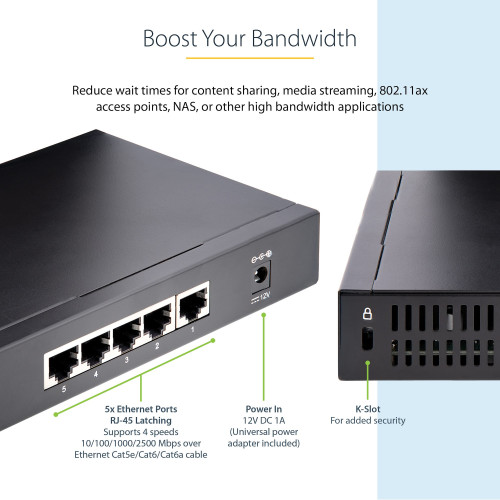

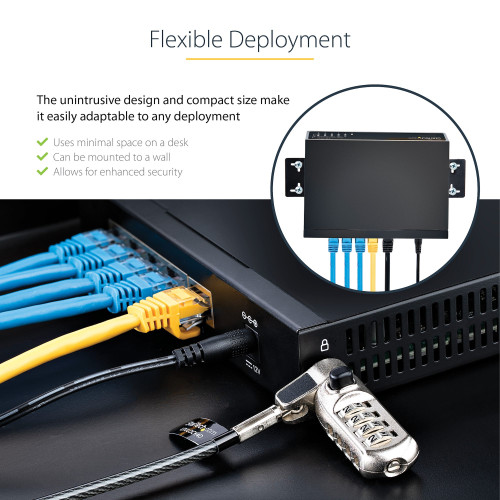

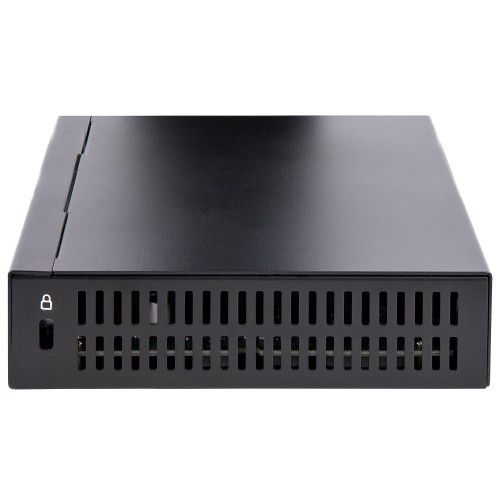

2.5G switch | Multi-Gigabit | 5 port | Unmanaged | Cat5e/Cat6/Cat6a cabling | Wall mount kit | K-slotThe unmanaged network switch offers five multi-speed Ethernet ports (10/100/1000/2500 Mbps) in a compact and durable all-metal casing while remaining silent and energy-efficient (IEEE 802.3az). The network switch is the ideal solution to dramatically speed up your network to support 2.5GBASE-T, and being an unmanaged switch, you can set it up in no time.Enhance your networkThis network switch allows you to use existing Cat5e/Cat6/Cat6a cabling to increase the bandwidth to 2.5 Gbps, ideal for large file transfers, streaming, network sharing/storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility. You can also use it in combination with Wi-Fi 6 (802.11ax) wireless access points to expand your network range, bandwidth, and accessibility.Secure and versatileThe 2.5G switch offers a security K-slot for more permanent and secure setups (cable not included). The unintrusive design and small dimensions (6.1x4.7x1.1 inch / 155x120x30 mm) make it easily adaptable to any deployment and has clear diagnostic LEDs that show the status of the devices at a glance. Additional features such as 9K jumbo frames, full-duplex, 16K MAC address table, QoS IEEE 802.1p, and wall mounting kit give you the flexibility to use it in a multitude of scenarios.The DS52000 is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
Data transmission
Store-and-forward Y
Switching capacity 2.5 Gbit/s
Design
Housing material Steel

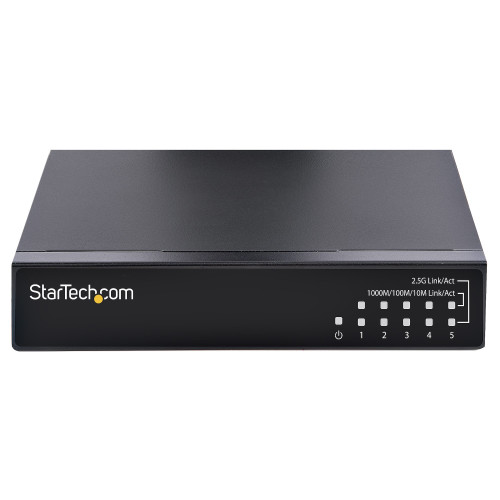

LED indicators Y
Maximum cable length 100 m
Product colour Black

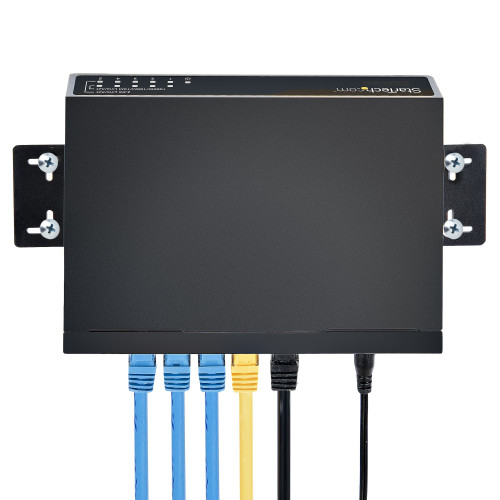

Wall mountable Y
Features
Cable types supported Cat5e, Cat6, Cat6a
Full duplex Y
Power over Ethernet (PoE) N
Logistics data
Harmonized System (HS) code 85176990
Master (outer) case height 290 mm
Master (outer) case length 370 mm
Master (outer) case width 305 mm
Products per master (outer) case 10 pc(s)
Management features
Quality of Service (QoS) support Y
Switch type Unmanaged
Network
10G support N
Auto MDI/MDI-X Y
Copper ethernet cabling technology 10BASE-T, 1000BASE-TX, 2500BASE-T
Jumbo frames 9000
Jumbo frames support Y
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -20 - 60 °C
Other features
AC adapter included Y
Quick start guide Y
Packaging data

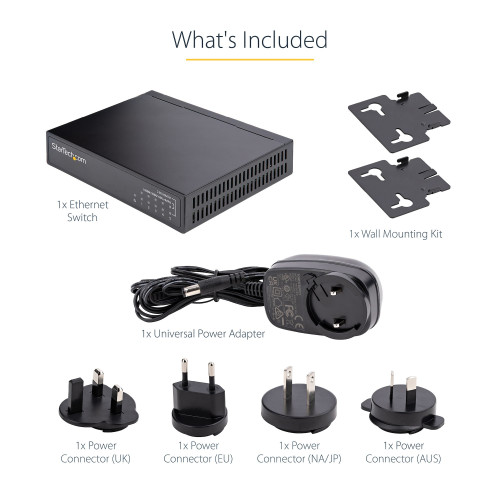

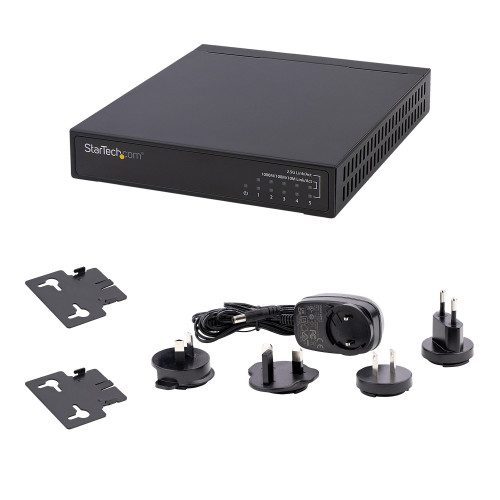

Wall mounting kit Y
Ports & interfaces

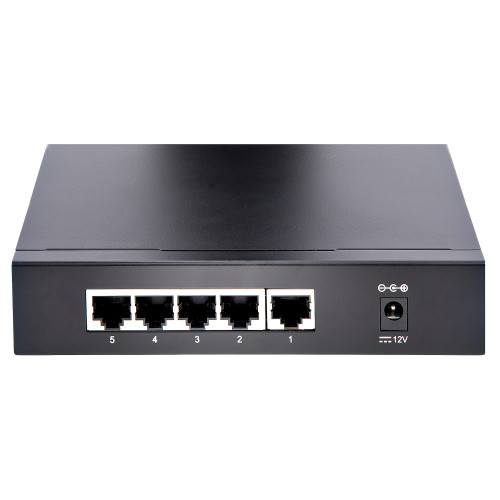

2.5G Ethernet (copper) ports quantity 5
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500)
Power connector DC-in jack
Power
AC input voltage 100 - 240 V
Input current 0.5 A
Output current 1 A
Output voltage 12 V
Power plug type Type M
Power source AC/DC
Power supply
Power supply included Y
Sustainability
Sustainability certificates CE, RoHS
Technical details
Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Rack mounting N

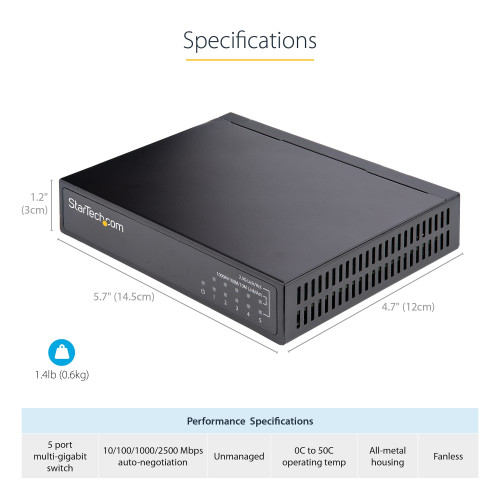

Weight & dimensions
Depth 145 mm
Height 30 mm
Package depth 135 mm
Package height 70 mm
Package weight 700 g
Package width 285 mm
Weight 600 g
Width 120 mm

Write a review

Please login or register to review

StarTech.com Unmanaged 2.5G Switch - 5 Port Gigabit Switch - 2.5GBASE-T Unmanaged Ethernet Switch - Ethernet Splitter - Din Rail or Wall Mount - Multi-Gigabit - Auto-MDIX - 9K Jumbo

  • Brand: StarTech.com
  • Product Code: DS52000
  • Availability: In Stock
  • $141.77
