Share keyboard, mouse, and DisplayPort display between four HD multimedia systems

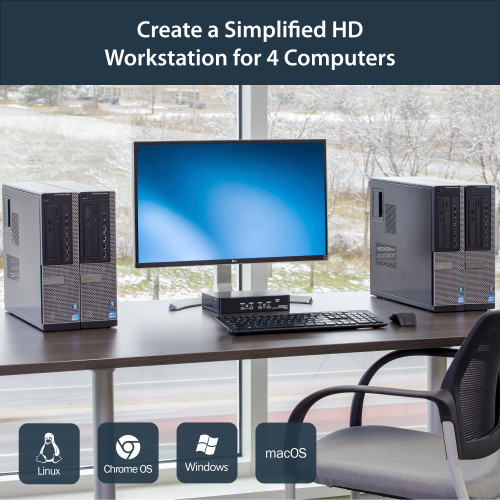

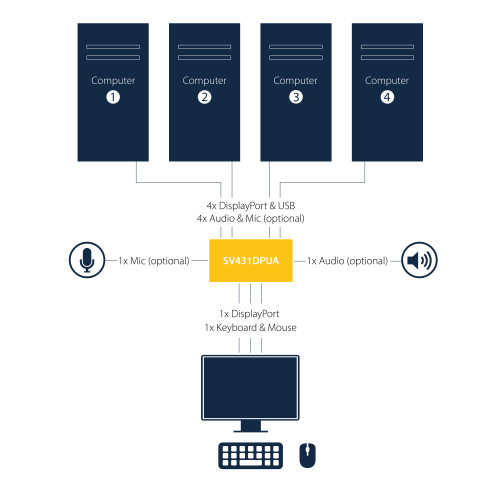

The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.
Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.
Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.

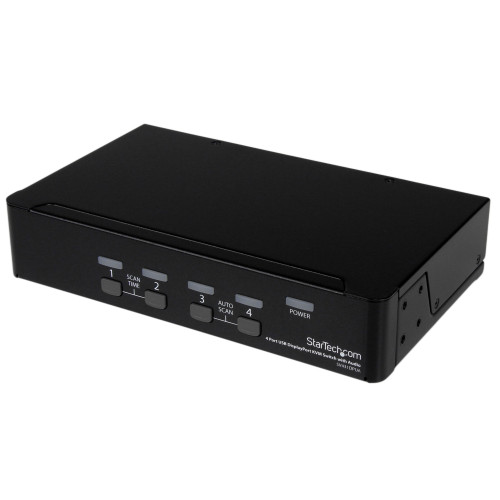

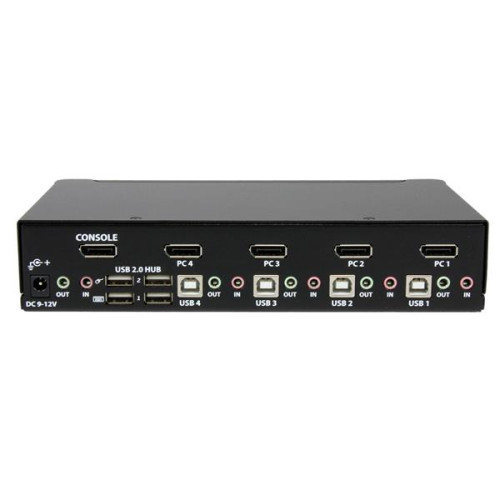

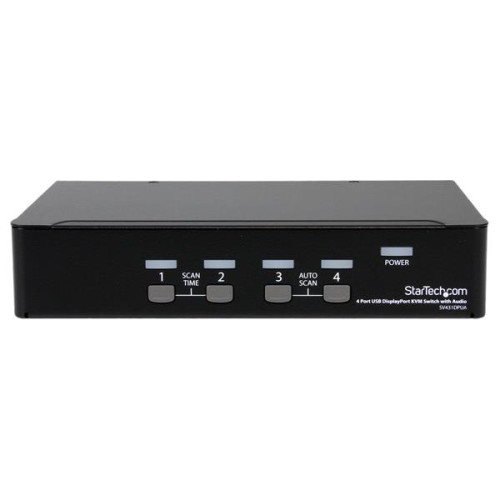

A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The StarTech.com Advantage
- USB peripheral sharing using the integrated hub eliminates the expense of duplicate devices (printers, scanners, etc.)
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple Macbook connectivity
- Support for digital DisplayPort 7.1 HD audio or separate 3.5mm analog audio connections for added versatility
The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.
Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.
Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The StarTech.com Advantage
- USB peripheral sharing using the integrated hub eliminates the expense of duplicate devices (printers, scanners, etc.)
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple Macbook connectivity
- Support for digital DisplayPort 7.1 HD audio or separate 3.5mm analog audio connections for added versatility
| Design | |
| Certification | CE, FCC, UL, TAA, REACH |
| Hot keys | Y |
| Housing material | Steel |
| LED indicators | Y |
| Product colour | Black |
| Push button | Y |
| Display | |
| Built-in display | N |
| On Screen Display (OSD) | N |
| Features | |
| Daisy chain | N |
| Plug and Play | Y |
| Graphics | |
| Maximum resolution | 3840 x 2400 pixels |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| AC adapter included | Y |
| Audio support | Y |
| IP control | N |

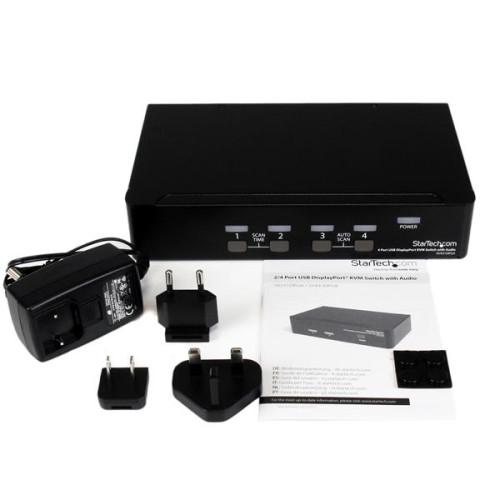

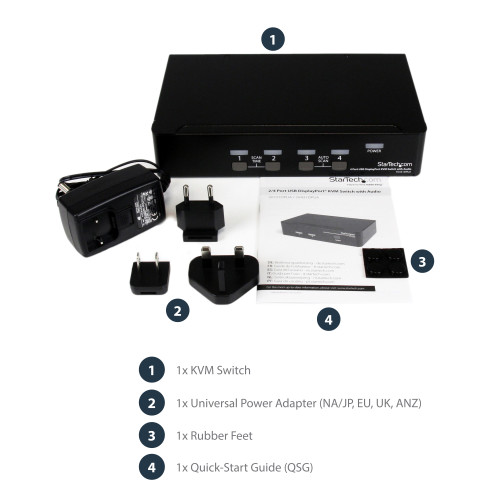

| Packaging content | |
| Manual | Y |
| Rubber feet | Y |
| Performance | |
| Audio channels | 7.1 |
| DDC2B support | Y |
| Hot-Plug support | Y |
| Maximum digital resolution | 2560 x 1600 pixels |
| Number of users | 1 user(s) |
| Ports & interfaces | |
| Audio connections | Y |

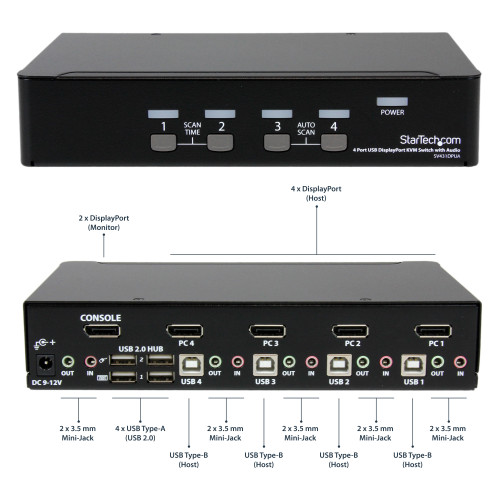

| Console ports | DisplayPort, 3.5mm headphone, 3.5mm mic, USB A |
| Console USB ports quantity | 4 |
| DC-in jack | Y |
| Headphone outputs | 5 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 4 |
| Number of microphone inputs | 5 |
| USB hub | Y |
| Video port type | DisplayPort |
| Power | |
| AC input voltage | 100 - 240 V |
| Compatible power plug types | AU, EU, UK, US |
| External power adapter | Y |
| Input current | 0.8 A |
| Output current | 1.5 A |
| Output voltage | 12 V |
| Power plug type | Type M |
| Sustainability | |
| Sustainability certificates | RoHS |
| Technical details | |
| Mean time between failures (MTBF) | 136000 h |
| Weight & dimensions | |

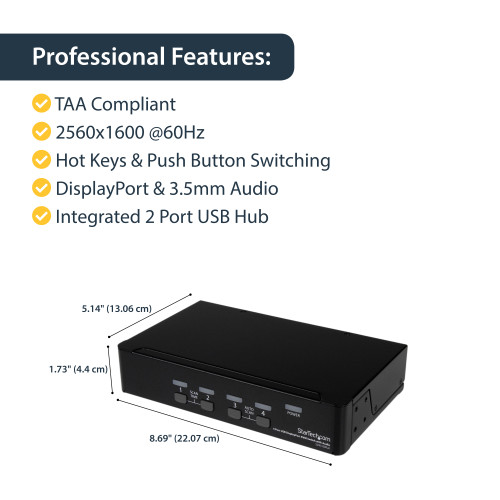

| Depth | 130.6 mm |
| Height | 44 mm |
| Package depth | 411 mm |
| Package height | 87 mm |
| Package weight | 1.6 kg |
| Package width | 214 mm |
| Weight | 1 kg |
| Width | 221 mm |
StarTech.com 4 Port USB DisplayPort KVM Switch with Audio
- Brand: StarTech.com
- Product Code: SV431DPUA
- Availability: In Stock
-
$295.43
