Control up to 16 USB computers from a single keyboard, mouse and monitor
The SV1631DUSBU 16 Port 1U Rack Mountable USB KVM Switch with OSD lets you control 16 USB computers from a single console (USB keyboard, USB mouse, VGA monitor).
Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options.
Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet with the included brackets, and can be cascaded with multiple KVM switches to deliver control of up to 136 computers from this single switch. Rear cable connections help to eliminate cable tangles and minimize workspace disruption.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
- On Screen Display adds the ability to rename connected computers for easy identification and provides per-port password security
- Supports cascading with other KVM switches for one spot control of up to 136 computers
The SV1631DUSBU 16 Port 1U Rack Mountable USB KVM Switch with OSD lets you control 16 USB computers from a single console (USB keyboard, USB mouse, VGA monitor).
Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options.
Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet with the included brackets, and can be cascaded with multiple KVM switches to deliver control of up to 136 computers from this single switch. Rear cable connections help to eliminate cable tangles and minimize workspace disruption.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
- On Screen Display adds the ability to rename connected computers for easy identification and provides per-port password security
- Supports cascading with other KVM switches for one spot control of up to 136 computers
| Design | |
| Housing material | Steel |
| LED indicators | Y |
| Product colour | Black |
| Display | |
| Built-in display | N |
| Features | |
| Daisy chain | Y |
| Plug and Play | Y |
| Rack capacity | 1U |
| Graphics | |
| Maximum resolution | 1920 x 1440 pixels |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 80% |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| AC adapter included | Y |
| Audio support | N |
| IP control | N |
| Packaging content | |
| Manual | Y |
| Ports & interfaces | |
| Audio connections | N |

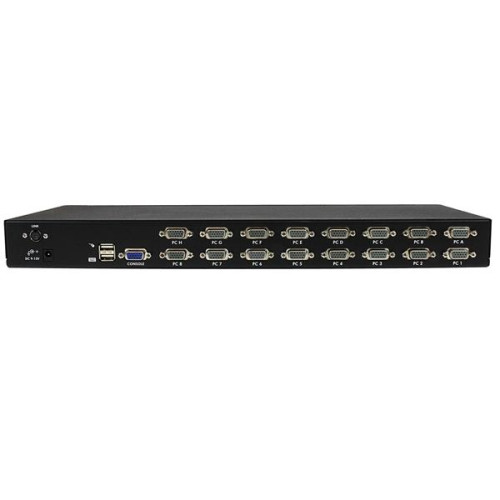

| Console ports | USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| DC-in jack | Y |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 16 |
| Video port type | VGA |
| Power | |
| AC input voltage | 110-240 V |
| Input current | 0.8 A |
| Output current | 1.5 A |
| Output voltage | 12 V |
| Power plug type | Type M |
| Technical details | |
| Rack mounting | Y |
| Weight & dimensions | |
| Depth | 180 mm |
| Height | 45 mm |
| Package depth | 468 mm |
| Package height | 264 mm |
| Package weight | 3.53 kg |
| Package width | 89 mm |
| Weight | 3.1 kg |
| Width | 540 mm |
StarTech.com 16 Port 1U Rackmount USB KVM Switch with OSD
- Brand: StarTech.com
- Product Code: SV1631DUSBU
- Availability: In Stock
-
$555.97
