Control up to 4 high resolution multimedia computers from a single console
The SV431DVIUAHR 4 Port High Resolution USB DVI Dual Link KVM Switch with Audio provides simple, yet comprehensive KVM control of up to 4 directly connected computers with dual link DVI output and USB keyboard and mouse connections.
Audio switching capability and support for high resolution dual link DVI applications up to 2560x1600 @ 60Hz (up to 3840x2400 at lower refresh rates), make this KVM a superior switching solution that integrates perfectly into multimedia environments.
The DVI USB KVM Switch is compatible with all USB supported operating systems with no software or drivers to install, and features a built-in USB 2.0 hub that allows you to share up to 3 high speed USB devices between computers.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Dual Link DVI interface supports higher resolution applications, allowing you to take full advantage of your larger high resolution monitor’s workspace
- Integrated USB 2.0 hub allows the user to have full multimedia control and share USB peripherals eliminating the expense of duplicate devices
- Supports even higher resolutions (exceeding 2560x1600) by using a lower refresh rate. Example 3840x2400 @30Hz
The SV431DVIUAHR 4 Port High Resolution USB DVI Dual Link KVM Switch with Audio provides simple, yet comprehensive KVM control of up to 4 directly connected computers with dual link DVI output and USB keyboard and mouse connections.
Audio switching capability and support for high resolution dual link DVI applications up to 2560x1600 @ 60Hz (up to 3840x2400 at lower refresh rates), make this KVM a superior switching solution that integrates perfectly into multimedia environments.
The DVI USB KVM Switch is compatible with all USB supported operating systems with no software or drivers to install, and features a built-in USB 2.0 hub that allows you to share up to 3 high speed USB devices between computers.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Dual Link DVI interface supports higher resolution applications, allowing you to take full advantage of your larger high resolution monitor’s workspace
- Integrated USB 2.0 hub allows the user to have full multimedia control and share USB peripherals eliminating the expense of duplicate devices
- Supports even higher resolutions (exceeding 2560x1600) by using a lower refresh rate. Example 3840x2400 @30Hz
| Design | |
| Certification | CE, FCC |
| Product colour | Black |
| Display | |
| Built-in display | N |
| Features | |
| Daisy chain | N |
| HDCP | Y |
| Graphics | |
| Maximum resolution | 3840 x 2400 pixels |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| AC adapter included | Y |
| Audio support | Y |
| IP control | N |

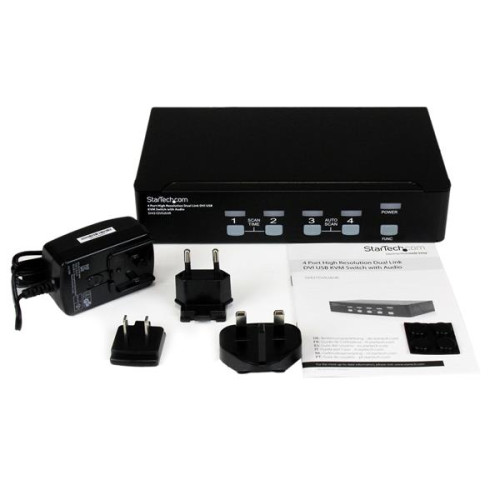

| Packaging content | |
| Manual | Y |
| Rubber feet | Y |
| Performance | |
| Maximum digital resolution | 2560 x 1600 pixels |
| Number of users | 1 user(s) |
| Ports & interfaces | |
| Audio connections | Y |

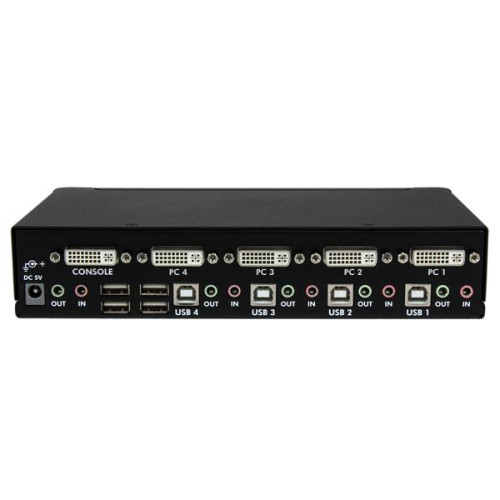

| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| DC-in jack | Y |
| DVI-I ports quantity | 5 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 4 |
| USB 2.0 ports quantity | 4 |
| Video port type | DVI-I |
| Power | |
| AC input voltage | 110-240 V |
| Input current | 0.4 A |
| Output current | 2 A |
| Output voltage | 5 V |
| Power plug type | Type M |
| Sustainability | |
| Sustainability certificates | RoHS |
| Technical details | |
| Mean time between failures (MTBF) | 64000 h |
| Weight & dimensions | |
| Depth | 130 mm |
| Height | 44 mm |
| Package depth | 411 mm |
| Package height | 214 mm |
| Package weight | 1.24 kg |
| Package width | 95 mm |
| Weight | 1.75 kg |
| Width | 220 mm |
StarTech.com 4 Port High Resolution USB DVI Dual Link KVM Switch with Audio
- Brand: StarTech.com
- Product Code: SV431DVIUAHR
- Availability: In Stock
-
$329.34
