Design
Hot keys
Y
LED indicators
Y
Product colour
Black
Push button
Y
Display
Built-in display
N
HD type
4K Ultra HD
Features
Chipset
Parade - PS8461, Etron - EJ899I
Data transfer rate (max)
5 Gbit/s
HDCP
Y
Graphics
Maximum resolution
5120 x 1440 pixels
Number of displays supported
1
Logistics data
Master (outer) case height
257 mm
Master (outer) case length
397 mm
Master (outer) case width
300 mm
Products per master (outer) case
6 pc(s)
Operational conditions
Operating relative humidity (H-H)
0 - 80%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Other features
AC adapter included
Y
IP control
N
Packaging content

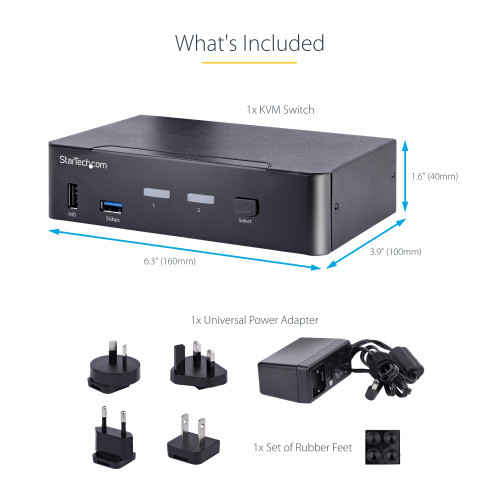

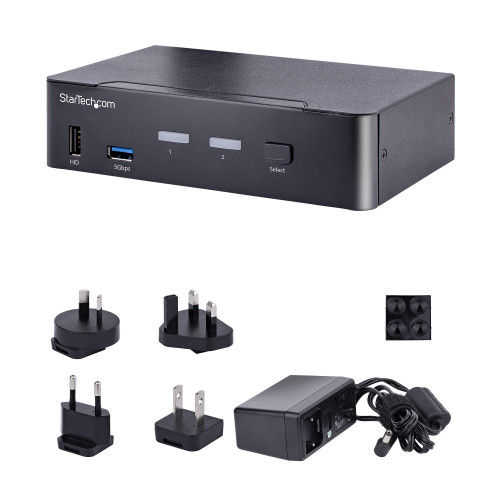

Quick installation guide
Y
Rubber feet
Y
Performance
Audio channels
2.0
Scan interval
3,8,15,30 s
Video bandwidth
60 Hz

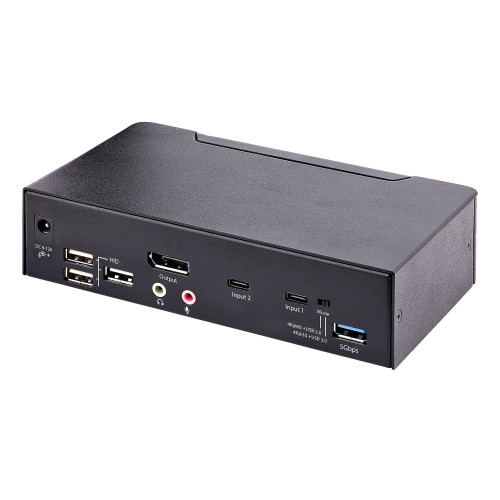

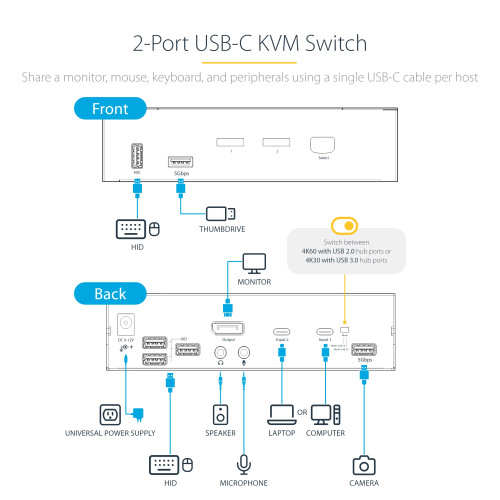

Ports & interfaces
Console DisplayPorts ports quantity
1
Console ports
3.5mm headphone, 3.5mm mic, DisplayPort
Console USB ports quantity
6
DisplayPort version
1.2
Headphone outputs
1
Keyboard port type
USB
Mouse port type
USB
Number of computers controlled
2
Number of microphone inputs
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
USB hub
Y
Video port type
DisplayPort
Power
AC input voltage
100 - 240 V
Input current
1.2 A
Output current
3 A
Output voltage
12 V
Power plug type
Type M
Power source
AC
Technical details
Mean time between failures (MTBF)
158000 h
Rack mounting
N
Weight & dimensions
Depth
160 mm
Height
40 mm
Package depth
238 mm
Package height
89 mm
Package weight
1 kg
Package width
184 mm
Weight
600 g
Width
140 mm

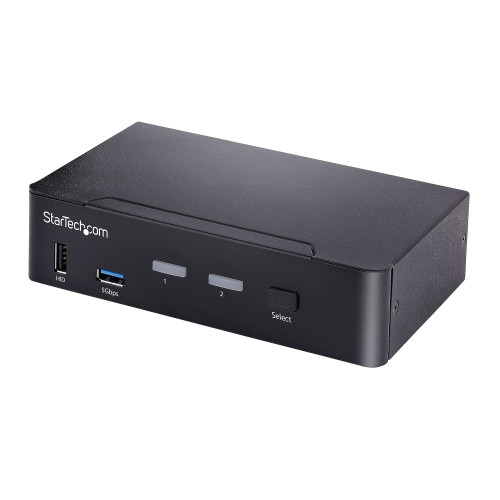

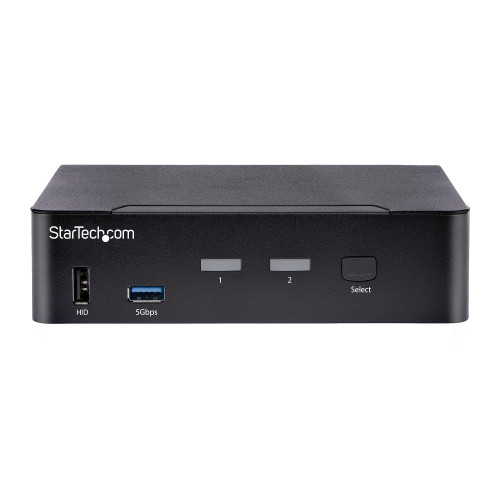

StarTech.com SV231DPUCA KVM switch Black
Brand: StarTech.com
Product Code: SV231DPUCA
Availability: In Stock
Specs: Icecat
