Access and Control 2 Computers with One KVM Switch

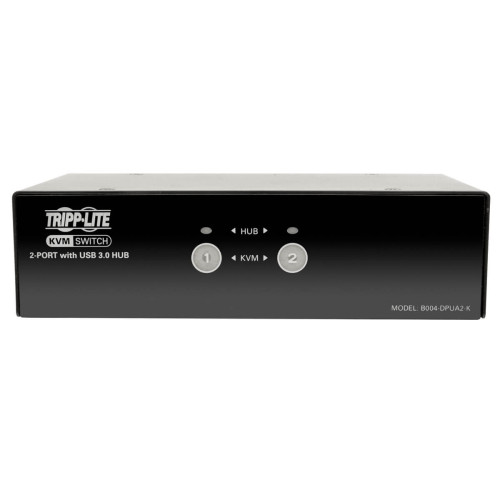

Switch between computers using keyboard hotkeys or front-panel buttons
Auto Scan feature cycles between computers at regular intervals for at-a-glance observation of activity
Monitor's EDID information sent to connected computer when selected
Supports DisplayPort 1.1
Independent Audio Switching
3.5 mm mini-stereo speaker and microphone jacks allow sharing of audio equipment between computers
Listen to audio files on one computer while accessing the other computer
Supports 2-channel stereo audio
Independent USB 3.0 Peripheral Sharing
2-port USB 3.0 SuperSpeed hub allows connection of peripherals, such as webcams, flash drives, printers and scanners
Print documents from one computer while accessing the other computer
Supports USB 3.0 data transfer rates up to 5 Gbps
Backward compatible with USB 2.0 and USB 1.1 devices
Compatible with All Major Operating Systems
Easy to set up with no software or drivers to install
Supports digital video resolutions up to 2560 x 1600, including 1080p
Works with Windows, Mac, Linux and Sun

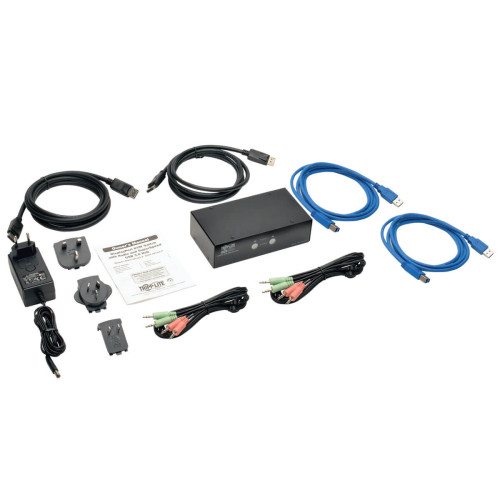

All necessary cables included
Switch between computers using keyboard hotkeys or front-panel buttons
Auto Scan feature cycles between computers at regular intervals for at-a-glance observation of activity
Monitor's EDID information sent to connected computer when selected
Supports DisplayPort 1.1
Independent Audio Switching
3.5 mm mini-stereo speaker and microphone jacks allow sharing of audio equipment between computers
Listen to audio files on one computer while accessing the other computer
Supports 2-channel stereo audio
Independent USB 3.0 Peripheral Sharing
2-port USB 3.0 SuperSpeed hub allows connection of peripherals, such as webcams, flash drives, printers and scanners
Print documents from one computer while accessing the other computer
Supports USB 3.0 data transfer rates up to 5 Gbps
Backward compatible with USB 2.0 and USB 1.1 devices
Compatible with All Major Operating Systems
Easy to set up with no software or drivers to install
Supports digital video resolutions up to 2560 x 1600, including 1080p
Works with Windows, Mac, Linux and Sun
All necessary cables included
| Design | |
| Country of origin | China |
| LED indicators | Y |
| Product colour | Black |
| Display | |
| Built-in display | N |
| Features | |
| Cable length | 1.2 m |
| Graphics | |
| Maximum resolution | 2560 x 1600 pixels |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case gross weight | 17.1 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332188622 |
| Master (outer) case height | 391.2 mm |
| Master (outer) case length | 429.3 mm |
| Master (outer) case width | 439.4 mm |
| Products per master (outer) case | 12 pc(s) |
| Other features | |
| AC adapter included | Y |
| Packaging content | |
| Cables included | Audio (3.5mm), DisplayPort, USB |
| Manual | Y |
| Performance | |
| DDC/DDC2 supported | Y |
| Linux operating systems supported | Y |
| Number of users | 1 user(s) |
| USB connector type | USB Type-A, USB Type-B |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Windows operating systems supported | Y |
| Ports & interfaces | |

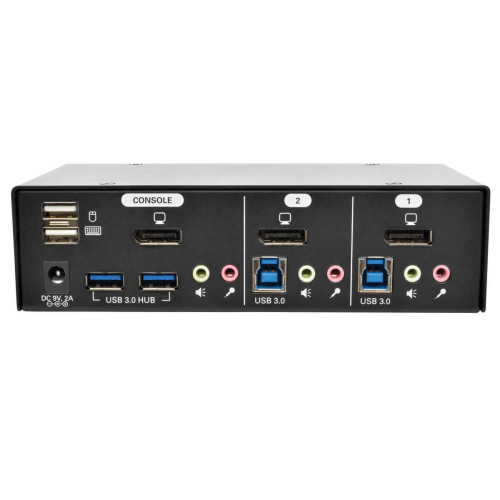

| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB B |
| Console USB ports quantity | 2 |
| DC-in jack | Y |
| Display connection | Y |
| Headphone outputs | 3 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB hub | Y |
| Video port type | DisplayPort |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
| Input current | 0.5 A |
| Output current | 2 A |
| Output voltage | 9 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| System requirements | |
| Mac operating systems supported | Y |
| Technical details | |
| Rack mounting | N |
| Weight & dimensions | |
| Depth | 88.9 mm |
| Height | 45.7 mm |
| Package depth | 139.7 mm |
| Package height | 175.3 mm |
| Package weight | 1.36 kg |
| Package width | 205.7 mm |
| Weight | 590 g |
| Width | 165.1 mm |

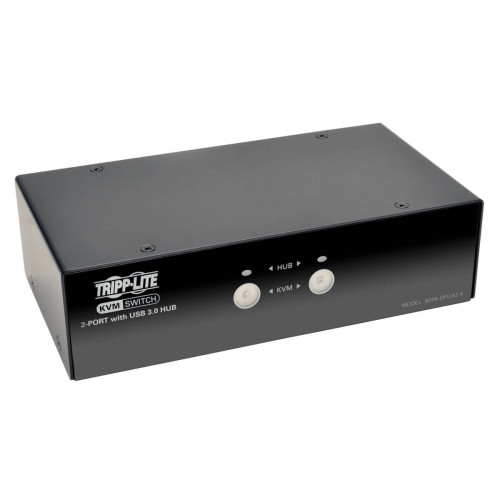

Tripp Lite B004-DPUA2-K 2-Port DisplayPort KVM Switch with Audio, Cables and USB 3.0 SuperSpeed Hub
- Brand: Tripp-Lite
- Product Code: B004-DPUA2-K
- Availability: In Stock
-
$251.61
