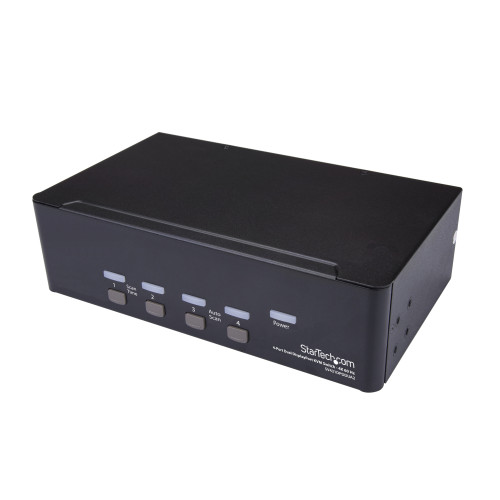

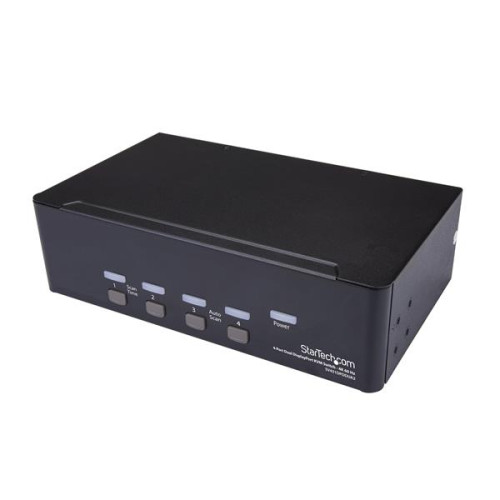

This 4-port Dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and MAC computers

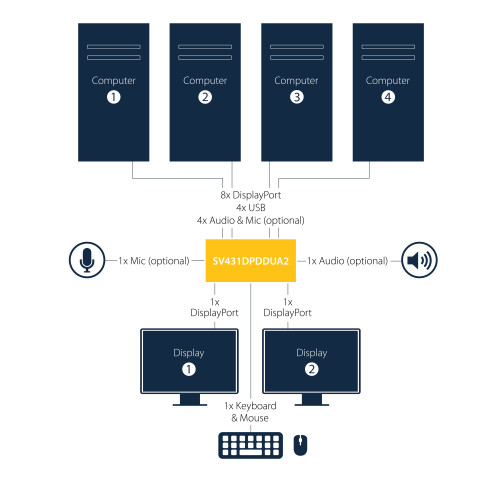

This 4-port dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and Mac computers. It features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head DP systems.

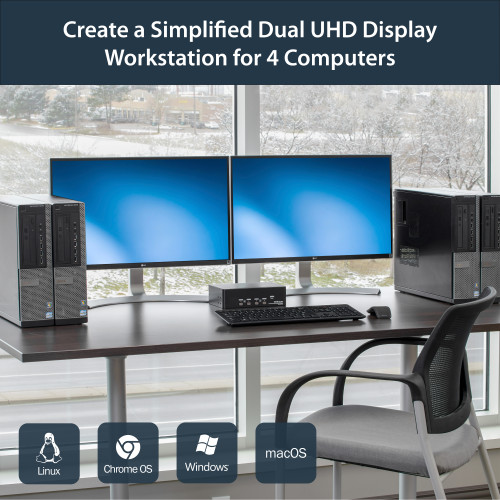

Maximize productivity with dual video
With two DP video inputs and control of four different computers, this Ultra HD KVM switch helps maximize productivity by giving you the freedom to multitask. Each of the DP ports supports resolutions up to 4K 60Hz, for maximum screen viewing space.
Astonishing picture quality
The dual DisplayPort KVM switch supports resolutions up to 4K at 60Hz, and can drive two large DP displays with ease. An ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.
Convenient multimedia and peripheral sharing
The KVM switch features full multimedia control with separate 3.5 mm microphone and speaker ports and two USB ports separate from the HID keyboard and mouse. The independent audio support lets you share independent analog audio from each of your connected computers, while the 2-port USB hub enables you to share USB peripherals between each connected computer.
The SV431DPDDUA2 is backed by a 2-year StarTech.com warranty.
The StarTech.com Advantage
- Maximum productivity with dual-display, multi-computer access
- Full multimedia control with separate 3.5 mm microphone and speaker support
- Astonishing picture quality with support for Ultra HD 4K resolutions at 60Hz
This 4-port dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and Mac computers. It features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head DP systems.
Maximize productivity with dual video
With two DP video inputs and control of four different computers, this Ultra HD KVM switch helps maximize productivity by giving you the freedom to multitask. Each of the DP ports supports resolutions up to 4K 60Hz, for maximum screen viewing space.
Astonishing picture quality
The dual DisplayPort KVM switch supports resolutions up to 4K at 60Hz, and can drive two large DP displays with ease. An ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.
Convenient multimedia and peripheral sharing
The KVM switch features full multimedia control with separate 3.5 mm microphone and speaker ports and two USB ports separate from the HID keyboard and mouse. The independent audio support lets you share independent analog audio from each of your connected computers, while the 2-port USB hub enables you to share USB peripherals between each connected computer.
The SV431DPDDUA2 is backed by a 2-year StarTech.com warranty.
The StarTech.com Advantage
- Maximum productivity with dual-display, multi-computer access
- Full multimedia control with separate 3.5 mm microphone and speaker support
- Astonishing picture quality with support for Ultra HD 4K resolutions at 60Hz
| Design | |
| Certification | CE, FCC, TAA, REACH |

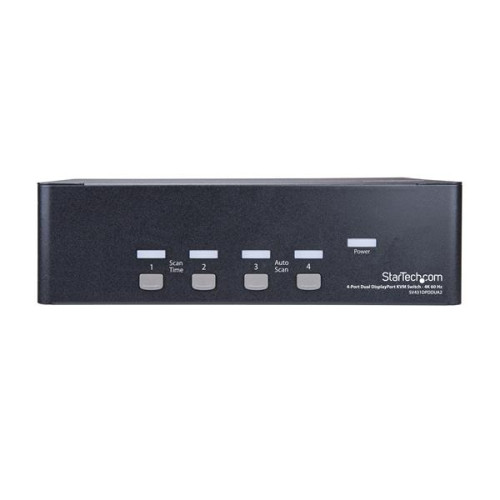

| Hot keys | Y |
| Housing material | Steel |
| LED indicators | Power |
| Product colour | Black |
| Display | |
| Built-in display | N |
| HD type | 4K Ultra HD |
| Features | |
| Daisy chain | N |
| Data transfer rate (max) | 0.5 Gbit/s |
| Rack capacity | 2U |
| Graphics | |
| Maximum resolution | 3840 x 2160 pixels |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Other features | |
| Audio support | Y |
| IP control | N |

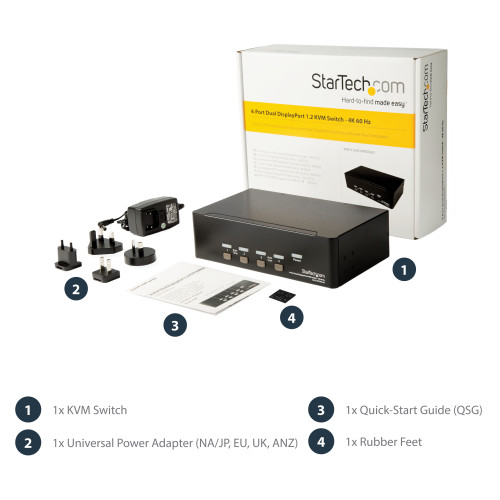

| Packaging content | |

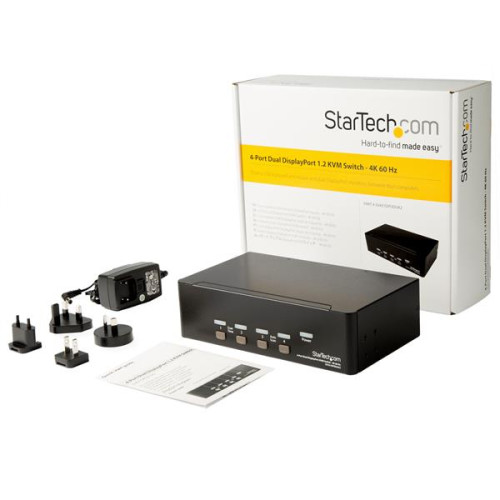

| Quick installation guide | Y |
| Rubber feet | Y |
| Performance | |
| Scan interval | 3,8,15,30 s |
| USB connector type | USB Type-A |

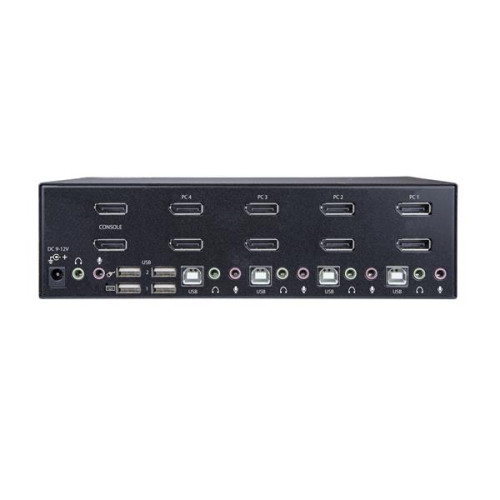

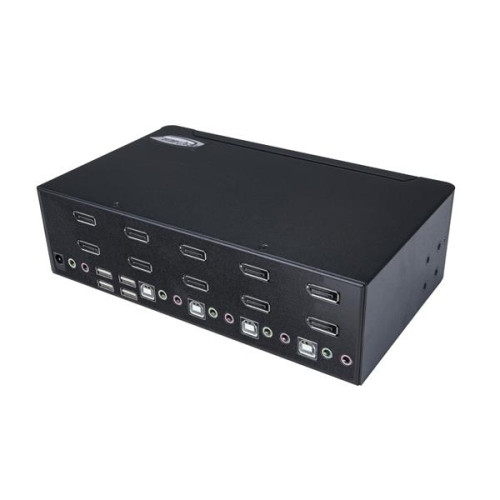

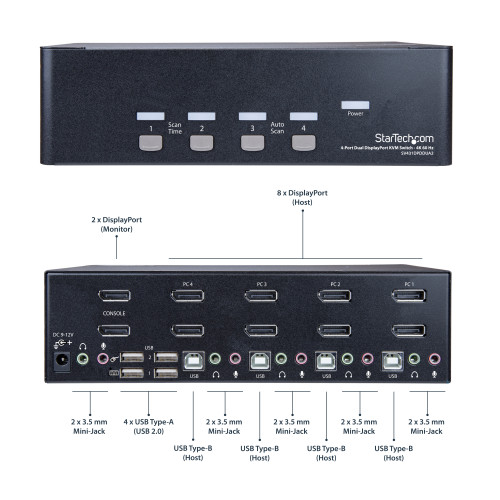

| Ports & interfaces | |
| Audio connections | Y |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Console USB ports quantity | 4 |
| DC-in jack | Y |
| DisplayPorts quantity | 10 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 4 |
| USB hub | Y |
| Video port type | DisplayPort |
| Power | |
| AC input voltage | 100 - 240 V |
| Compatible power plug types | AU, EU, JP, UK, US |
| External power adapter | Y |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Output voltage | 12 V |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
| Power source | AC |
| Sustainability | |
| Sustainability certificates | RoHS |
| Technical details | |
| Mean time between failures (MTBF) | 142000 h |
| Rack mounting | Y |
| Weight & dimensions | |

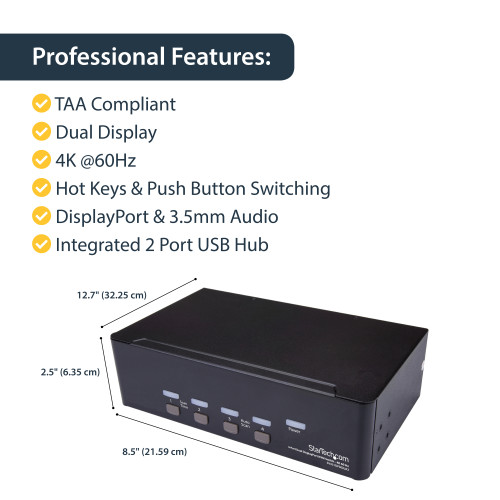

| Depth | 127 mm |
| Height | 63 mm |
| Package depth | 297 mm |
| Package height | 87 mm |
| Package weight | 1.8 kg |
| Package width | 243 mm |
| Weight | 1.2 kg |
| Width | 216 mm |
StarTech.com 4-Port Dual DisplayPort KVM Switch - 4K 60Hz
- Brand: StarTech.com
- Product Code: SV431DPDDUA2
- Availability: In Stock
-
$694.82
