5-Port HDMI Switch with Remote Connects 5 Sources to One 4K HDMI Display
An excellent addition to your home theater, the B119-005-UHD allows you to connect five separate HDMI audio/video sources to your 4K television, projector or monitor’s HDMI input and switch between them. For instance, connect a cable box, Blu-ray player, Xbox, Roku and audio receiver to your 4K HDTV, and use the manual push button or included remote control to switch manually from one input to another.
Transmits Crystal-Clear 4K Video with HDR and 4:4:4 Color
This 5-port HDMI switch supports Ultra HD 4K video resolutions at 60 Hz, as specified in HDMI 2.0, as well as 48-bit True Color and HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This adapter supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. DTS-HD, Dolby TrueHD and 7.1-channel surround sound ensure your ears receive the same treat as your eyes.
Ready to Use Right from the Package, So You Can Plug and Play Immediately

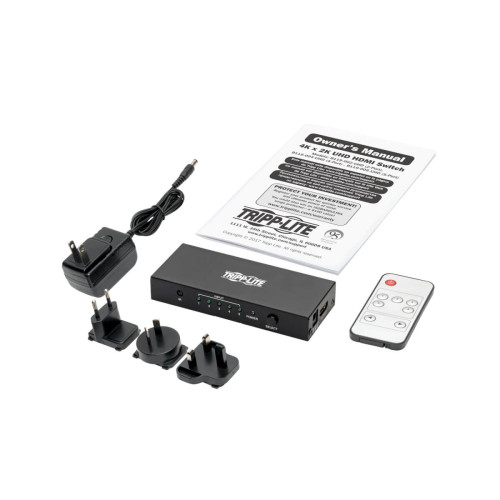

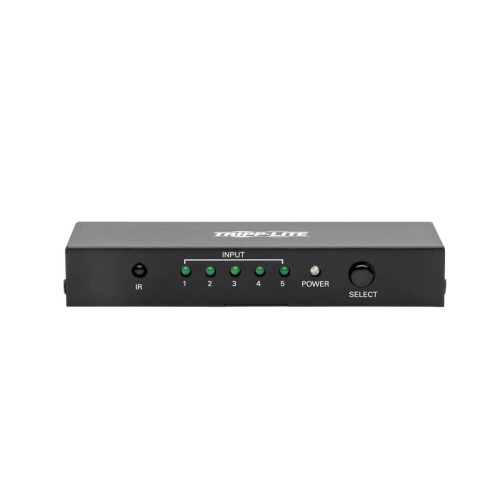

The compact metal switch requires no extra software to download and install. Connect your devices to the HDMI ports with user-supplied HDMI cables (such as P569-Series), and plug the included external power supply into an AC power source. A red LED indicates the unit is receiving power, and green LEDs indicate connected HDMI inputs. When the currently used source is powered off, the unit automatically switches to the next powered-on source.
An excellent addition to your home theater, the B119-005-UHD allows you to connect five separate HDMI audio/video sources to your 4K television, projector or monitor’s HDMI input and switch between them. For instance, connect a cable box, Blu-ray player, Xbox, Roku and audio receiver to your 4K HDTV, and use the manual push button or included remote control to switch manually from one input to another.
Transmits Crystal-Clear 4K Video with HDR and 4:4:4 Color
This 5-port HDMI switch supports Ultra HD 4K video resolutions at 60 Hz, as specified in HDMI 2.0, as well as 48-bit True Color and HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This adapter supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. DTS-HD, Dolby TrueHD and 7.1-channel surround sound ensure your ears receive the same treat as your eyes.
Ready to Use Right from the Package, So You Can Plug and Play Immediately
The compact metal switch requires no extra software to download and install. Connect your devices to the HDMI ports with user-supplied HDMI cables (such as P569-Series), and plug the included external power supply into an AC power source. A red LED indicates the unit is receiving power, and green LEDs indicate connected HDMI inputs. When the currently used source is powered off, the unit automatically switches to the next powered-on source.
| Design | |
| Country of origin | Vietnam |
| Housing material | Iron |
| LED indicators | Y |
| Product colour | Black |
| Display | |
| Built-in display | N |
| HD type | 4K Ultra HD |
| Features | |
| HDCP | Y |
| Maximum operating distance | 5 m |
| Plug and Play | Y |
| Graphics | |
| Maximum resolution | 3840 x 2160 pixels |
| Logistics data | |
| Harmonized System (HS) code | 8525.50.3035 |
| Master (outer) case gross weight | 3.2 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332210187 |
| Master (outer) case height | 199.9 mm |
| Master (outer) case length | 290.1 mm |
| Master (outer) case width | 415 mm |
| Products per master (outer) case | 10 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -10 - 80 °C |
| Other features | |
| AC adapter included | Y |
| DC input voltage | 5 V |
| Packaging content | |
| Manual | Y |
| Performance | |
| Video bandwidth | 60 Hz |
| Ports & interfaces | |
| DC-in jack | Y |
| HDMI ports quantity | 5 |
| Number of computers controlled | 5 |
| Video port type | HDMI |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| External power adapter | Y |
| Input current | 1 A |
| Power consumption (typical) | 1.85 W |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 50.8 mm |
| Height | 20.3 mm |
| Package depth | 136.9 mm |
| Package height | 80 mm |
| Package weight | 290 g |
| Package width | 180.1 mm |
| Weight | 160 g |
| Width | 121.9 mm |
Tripp Lite B119-005-UHD 5-Port HDMI Switch with Remote Control - 4K 60 Hz, UHD, 4:4:4, HDR, 3D
- Brand: Tripp-Lite
- Product Code: B119-005-UHD
- Availability: In Stock
-
$57.01
