Control four DP computers using a single console with a built-in USB 3.0 hub for sharing additional peripheral devices

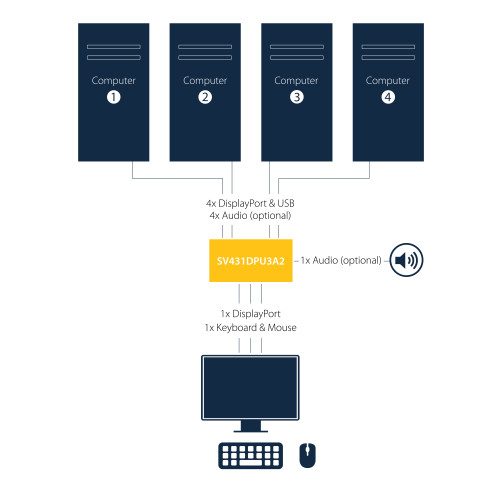

This 4-Port USB 3.0 DisplayPort KVM switch lets you control four DisplayPort (DP) computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.
Convenient and cost-effective USB 3.0 peripheral sharing
This KVM switch offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of disconnecting and reconnecting your peripherals.
With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives.
Astonishing picture quality
Offering support for resolutions up to Ultra HD 4K at 30 Hz, this 4-port DisplayPort KVM switch has the ability to drive large DP displays with ease, making it ideal for graphical applications that require high-resolution video support.
Complete multimedia control
The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 4K DP video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.
The SV431DPU3A2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The StarTech.com Advantage
- Easily share peripheral devices using the built-in USB 3.0 hub
- Astonishing picture quality with support for Ultra HD 4K resolutions
- Full multimedia control with separate 3.5 mm auxiliary support
This 4-Port USB 3.0 DisplayPort KVM switch lets you control four DisplayPort (DP) computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.
Convenient and cost-effective USB 3.0 peripheral sharing
This KVM switch offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of disconnecting and reconnecting your peripherals.
With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives.
Astonishing picture quality
Offering support for resolutions up to Ultra HD 4K at 30 Hz, this 4-port DisplayPort KVM switch has the ability to drive large DP displays with ease, making it ideal for graphical applications that require high-resolution video support.
Complete multimedia control
The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 4K DP video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.
The SV431DPU3A2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The StarTech.com Advantage
- Easily share peripheral devices using the built-in USB 3.0 hub
- Astonishing picture quality with support for Ultra HD 4K resolutions
- Full multimedia control with separate 3.5 mm auxiliary support
| Design | |
| Certification | CE, FCC, UL, PSE |
| Hot keys | Y |
| LED indicators | Link, Power |
| Product colour | Black |
| Display | |
| Built-in display | N |
| HD type | 4K Ultra HD |
| Features | |
| Daisy chain | N |
| HDCP | Y |
| Maximum operating distance | 10 m |
| Plug and Play | Y |
| Graphics | |
| Maximum resolution | 3840 x 2160 pixels |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Network | |
| Ethernet LAN | N |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Other features | |
| Audio support | Y |
| IP control | N |

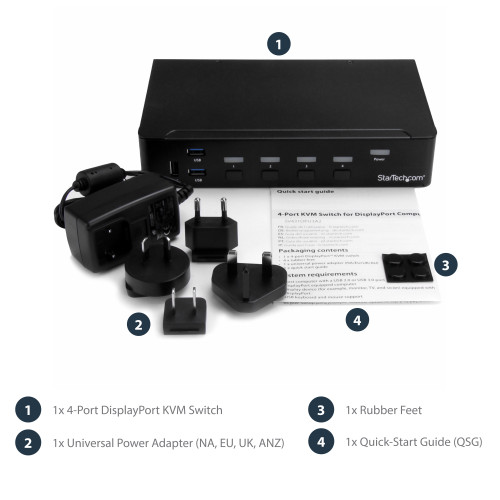

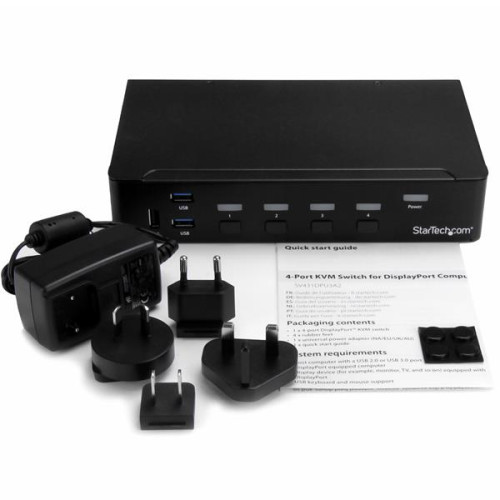

| Packaging content | |
| Quick installation guide | Y |
| Rubber feet | Y |
| Performance | |
| Audio channels | 2.0 |
| USB connector type | USB Type-A |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |

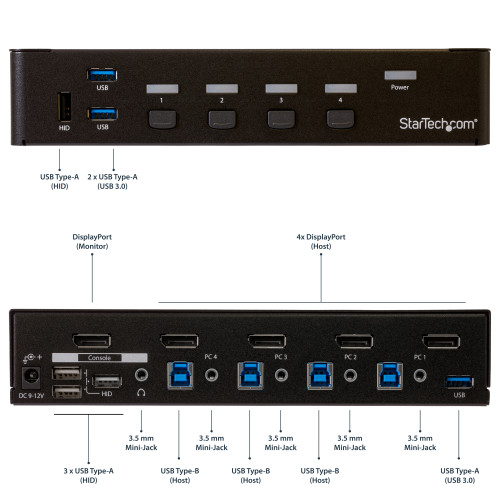

| Ports & interfaces | |
| Audio connections | Y |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| Console USB ports quantity | 4 |
| DC-in jack | Y |
| Headphone outputs | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 3 |
| Video port type | DisplayPort |
| Power | |
| AC input voltage | 100-240 V |
| Compatible power plug types | AU, EU, UK, US |
| Output current | 1.5 A |
| Output voltage | 12 V |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
| Sustainability | |
| Sustainability certificates | RoHS |
| Technical details | |
| Rack mounting | Y |
| Weight & dimensions | |
| Depth | 220 mm |
| Height | 43 mm |
| Package depth | 297 mm |
| Package height | 85 mm |
| Package weight | 1.61 kg |
| Package width | 244 mm |
| Weight | 1.06 kg |
| Width | 130 mm |

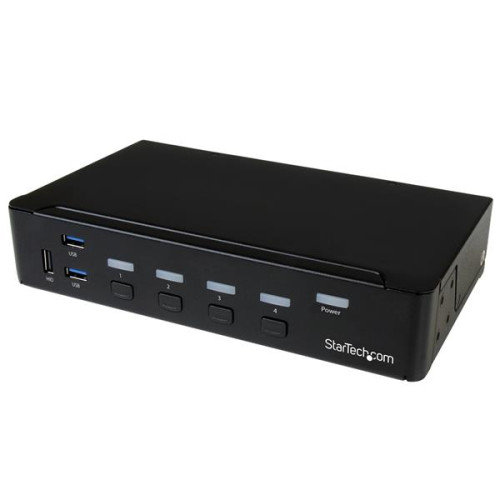

StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K 30Hz
- Brand: StarTech.com
- Product Code: SV431DPU3A2
- Availability: In Stock
-
$420.85
