KVM with USB | TAA Compliant | USB 3.0 Hub | DisplayPort 1.2 | Digital & Analog Audio

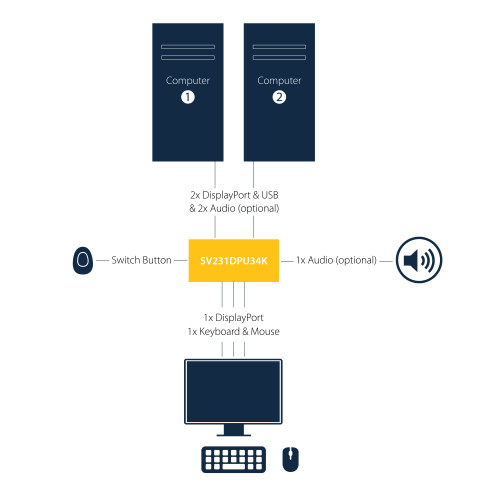

This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.
4K60 Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives one large monitor at the full 4K resolution or, using an MST adapter, can drive various DisplayPort multi-display setups totaling 4K if you need to maximize viewing space. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
Windows, Mac & Linux Compatible
While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.
Easy to Operate

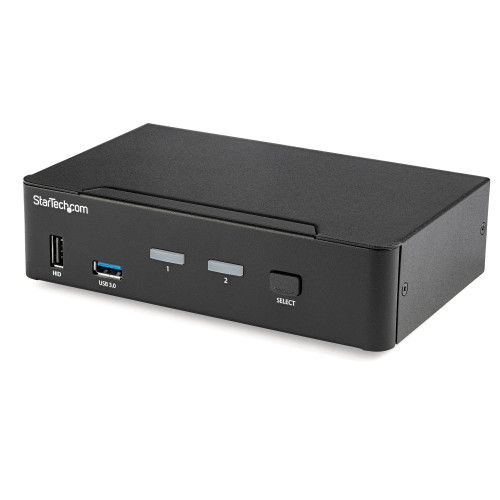

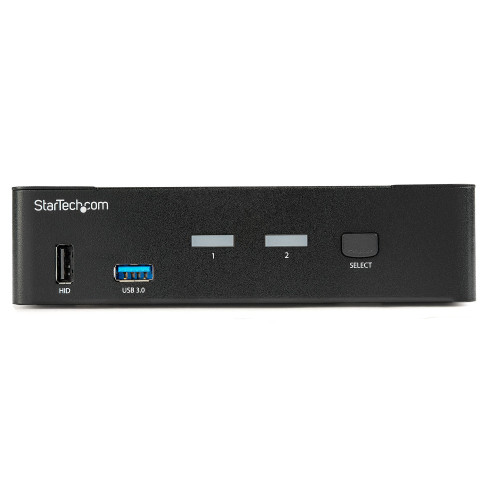

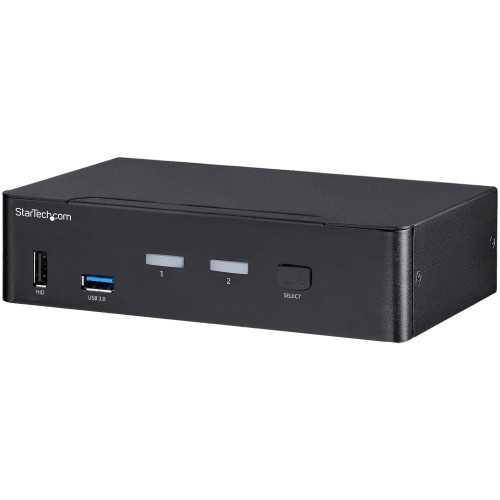

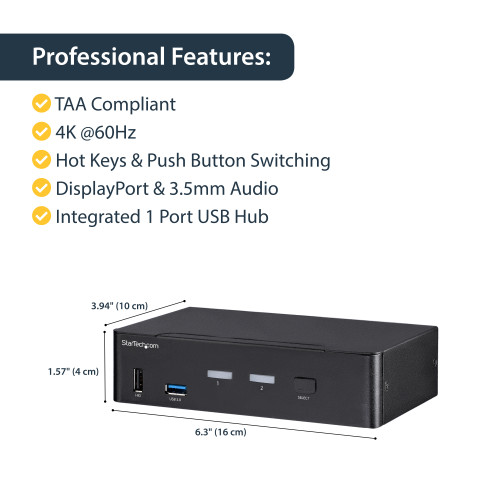

The front-panel pushbuttons make it easy to switch between systems and activate the auto scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- IMPROVE EFFICIENCY: 2 Port DisplayPort KVM Switch with hotkey and manual switching to access 2 computers with DP video and USB 3.0 hub; works with major brands including Dell, HP, and Lenovo
- 4K VIDEO QUALITY: DisplayPort KVM switch supports up to 4K at 60Hz on one large monitor
- Supports MST Passthrough for multiple displays
This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.
4K60 Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives one large monitor at the full 4K resolution or, using an MST adapter, can drive various DisplayPort multi-display setups totaling 4K if you need to maximize viewing space. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
Windows, Mac & Linux Compatible
While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.
Easy to Operate
The front-panel pushbuttons make it easy to switch between systems and activate the auto scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- IMPROVE EFFICIENCY: 2 Port DisplayPort KVM Switch with hotkey and manual switching to access 2 computers with DP video and USB 3.0 hub; works with major brands including Dell, HP, and Lenovo
- 4K VIDEO QUALITY: DisplayPort KVM switch supports up to 4K at 60Hz on one large monitor
- Supports MST Passthrough for multiple displays
| Design | |
| Certification | CE, FCC, TAA, REACH |
| Hot keys | Y |
| Housing material | Steel |
| LED indicators | Y |
| Product colour | Black |
| Display | |
| Built-in display | N |
| HD type | 4K Ultra HD |
| On Screen Display (OSD) | N |
| Features | |
| Daisy chain | N |
| HDCP | Y |
| Graphics | |
| Maximum resolution | 3840 x 2160 pixels |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case height | 285 mm |
| Master (outer) case length | 389 mm |
| Master (outer) case width | 318 mm |
| Products per master (outer) case | 6 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Other features | |
| AC adapter included | Y |
| IP control | N |

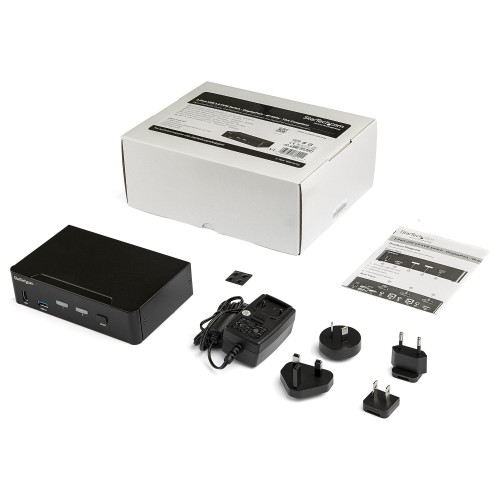

| Packaging content | |
| Quick installation guide | Y |
| Rubber feet | Y |
| Performance | |
| Audio channels | 2.0 |
| Number of users | 1 user(s) |
| USB connector type | USB Type-A, USB Type-B |
| Ports & interfaces | |
| Audio connections | Y |

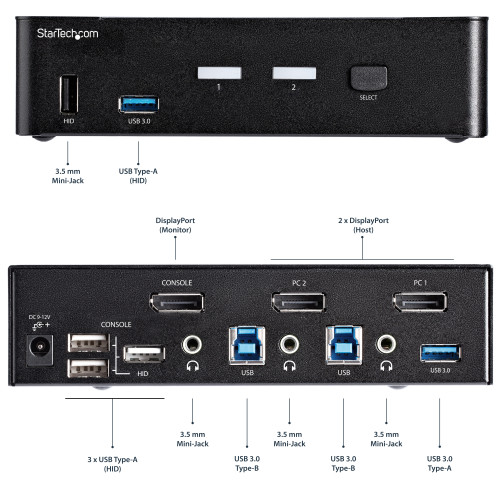

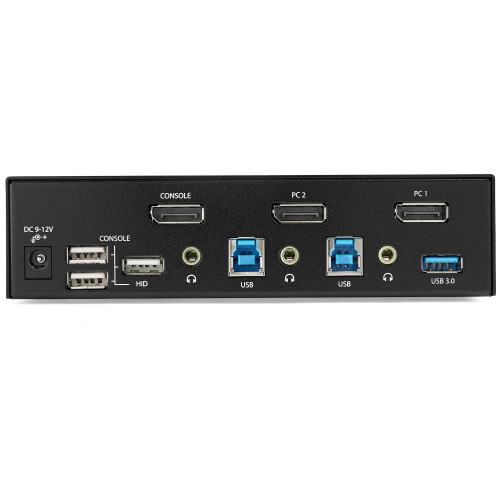

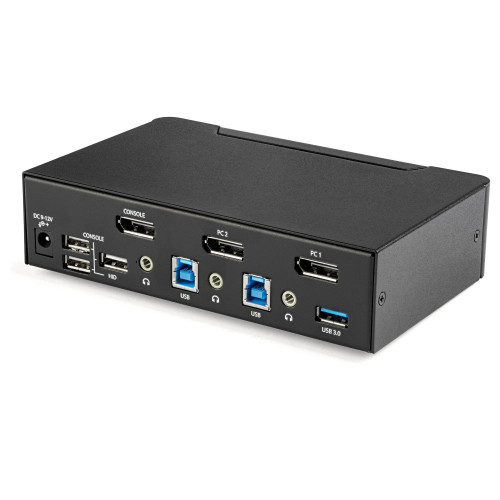

| Console ports | 3.5mm headphone, DisplayPort, USB A |
| Console USB ports quantity | 6 |
| DC-in jack | Y |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 3 |
| Headphone outputs | 3 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| Video port type | DisplayPort |
| Power | |
| AC input voltage | 100 - 240 V |
| Compatible power plug types | AU, EU, JP, UK, US |
| External power adapter | Y |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Output voltage | 12 V |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
| Sustainability | |
| Sustainability certificates | RoHS |
| Technical details | |
| Mean time between failures (MTBF) | 60000 h |
| Weight & dimensions | |
| Depth | 100 mm |
| Height | 40 mm |
| Package depth | 238 mm |
| Package height | 91 mm |
| Package width | 189 mm |
| Weight | 1.1 kg |
| Width | 160 mm |
StarTech.com 2 Port DisplayPort KVM Switch - 4K 60Hz - Single Display - Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB 3.0 Hub & Audio - Dell HP Apple Lenovo - TAA Compliant
- Brand: StarTech.com
- Product Code: SV231DPU34K
- Availability: In Stock
-
$352.80
