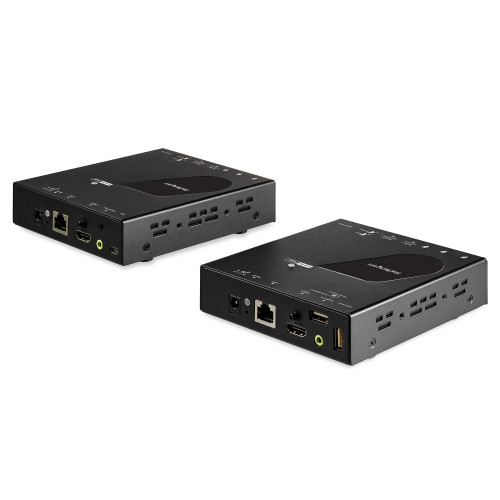

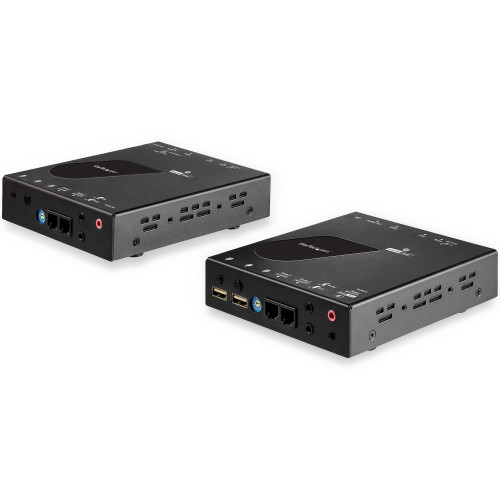

KVM Console Extender Over IP | HDMI® | 4K @ 30Hz | 4x USB Ports | EDID Pass-ThroughThis HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.Supports UHD 4K 30HzThe HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.Hassle-Free InstallationWith a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.Versatile Configuration OptionsThe extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5 or CAT6 cabling up to 330 feet (100 meters).SV565HDIP is backed by a 2-year warranty and free lifetime technical support.The StarTech.com Advantage
Design
Certification CE, FCC, TAA, REACH
Hot keys N
Housing material Steel
LED indicators Y
Product colour Black
Display
Built-in display N
HD type 4K Ultra HD
On Screen Display (OSD) Y
Features
Chipset ASPEED - AST1520
Daisy chain N
Maximum operating distance 100 m
Graphics
Maximum resolution 3840 x 2160 pixels
Logistics data
Harmonized System (HS) code 85176200
Master (outer) case height 265 mm
Master (outer) case length 495 mm
Master (outer) case width 385 mm
Products per master (outer) case 6 pc(s)
Operational conditions
Operating relative humidity (H-H) 0 - 80%
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -10 - 60 °C
Other features
AC adapter included Y
IP control N

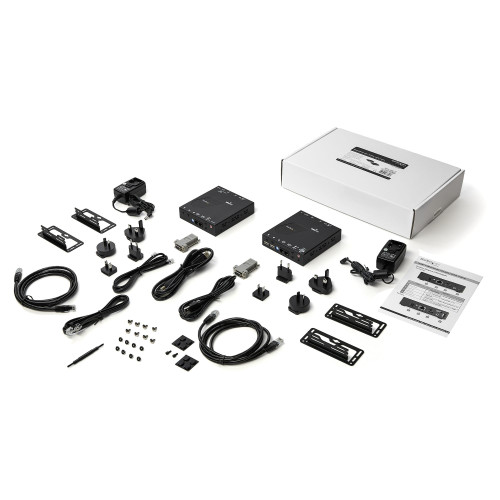

Packaging content
Cables included HDMI, LAN (RJ-45), Phone (RJ-11), USB
Quick installation guide Y
Rubber feet Y
Performance
Audio channels 7.1
Video bandwidth 30 Hz
Ports & interfaces
Audio connections Y
DC-in jack Y
Ethernet LAN (RJ-45) ports 2
HDMI ports quantity 2
Headphone outputs 8
Keyboard port type USB
Mouse port type USB
Number of microphone inputs 2
USB 2.0 Type-A hub ports quantity 2
USB hub Y
Video port type HDMI
Power
AC input voltage 100 - 240 V
Compatible power plug types AU, EU, JP, UK
External power adapter Y
Input current 0.6 A
Output current 1.5 A
Output voltage 12 V
Power consumption (typical) 18 W
Power plug type Type M
Sustainability
Sustainability certificates RoHS
Technical details
Mean time between failures (MTBF) 60000 h
Weight & dimensions
Depth 130 mm
Height 28 mm
Package depth 195 mm
Package height 235 mm
Package width 365 mm
Weight 610 g
Width 117 mm

Write a review

Please login or register to review

StarTech.com HDMI KVM Extender over IP Network - 4K 30Hz HDMI 2.0 and USB over IP LAN or Cat5e/Cat6 Ethernet Cable (100m/330ft) - Remote KVM Switch/Console Transmitter/Receiver Extender Kit

  • Brand: StarTech.com
  • Product Code: SV565HDIP
  • Availability: In Stock
  • $630.88
