Connects 2 DisplayPort-Enabled Devices to a Single Monitor, Keyboard and Mouse
This KVM switch lets you access, control, boot and reboot two computers with DisplayPort connectors and switch between them. In addition to desktop and notebook computers, the switch also connects up to two media centers, video game systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other DisplayPort-enabled devices. Both computers share one monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.

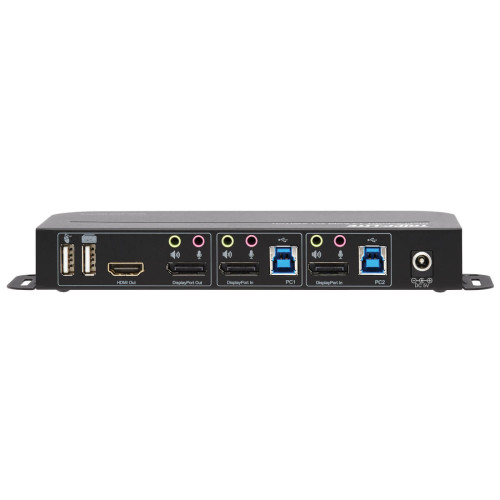

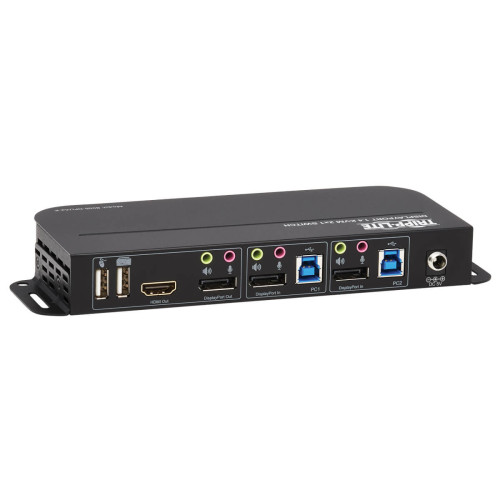

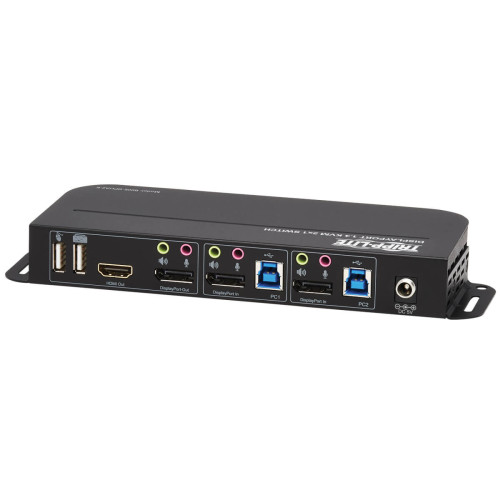

Supports DisplayPort++ for Connecting an HDMI or DisplayPort Monitor
The B005-DPUA2-K supports DP++, allowing incoming DisplayPort signals to be converted to HDMI. It features one DisplayPort output and one HDMI output, though only one monitor may be used at a time.

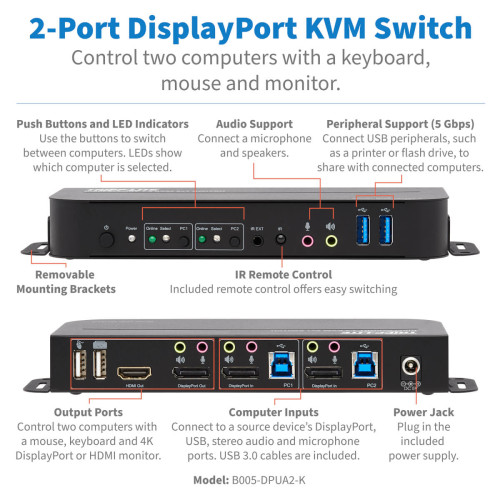

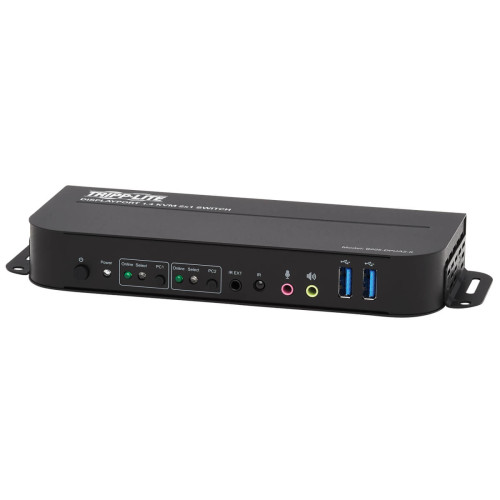

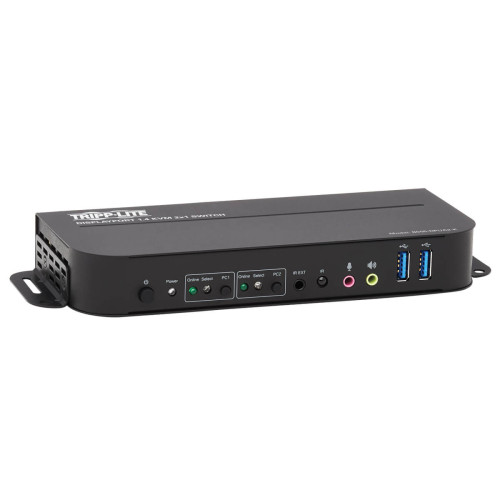

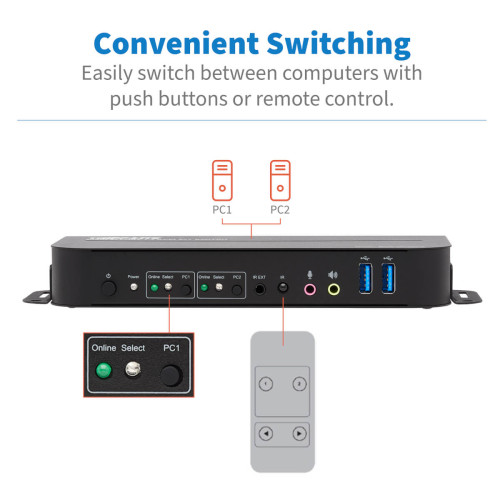

Switching Between Computers Is Fast and Easy
Use the front-panel push buttons, hotkey commands, mouse movement or the included IR remote control for quick and easy toggling between computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected. Please note: Mouse Traversal is a permanent feature and cannot be disabled.

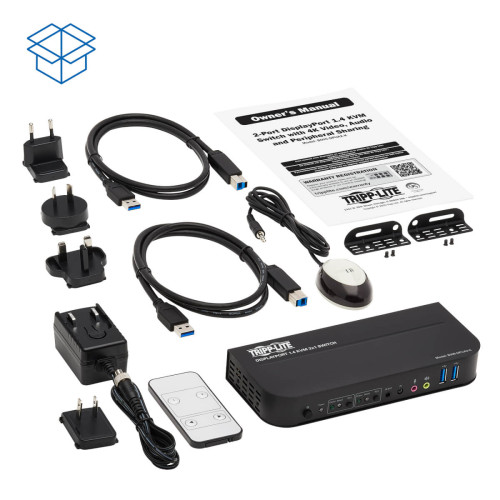

USB Cables Are Included to Facilitate a Simple Setup
Use the included USB 3.0 cables to connect your computers to the KVM switch. The plug-and-play B005-DPUA2-K requires no drivers, so you can connect and use it immediately. It works with all major operating systems, including Windows, macOS and Linux.

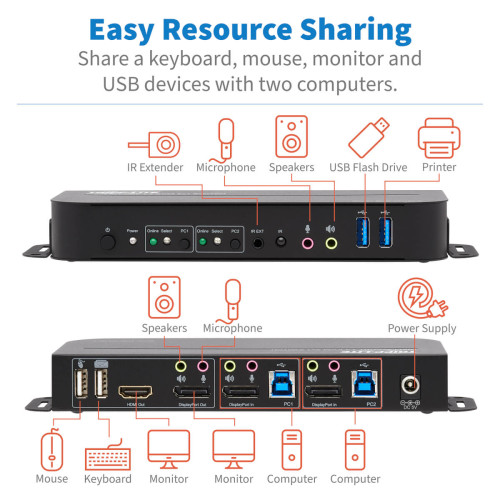

USB Hub Lets You Share Peripherals between Computers
Two USB 3.0 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between both connected computers. The ports support USB 3.0 data transfer speeds up to 5 Gbps and are backward compatible with earlier USB generations.
Transmits Crystal-Clear True 4K Video with HDR and 4:4:4 Color
The B005-DPUA2-K supports Ultra HD resolutions up to 4096 x 2160 (4K x 2K) at 60 Hz, as well as HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This KVM switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

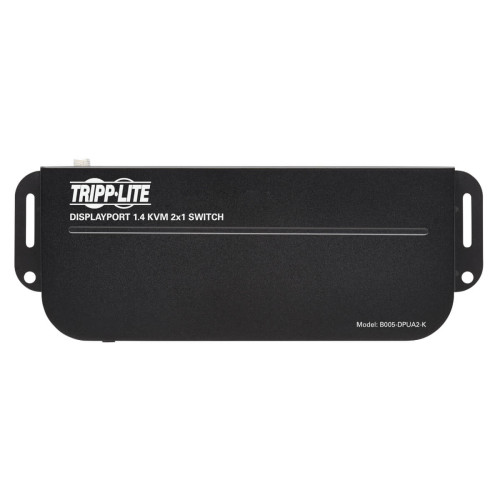

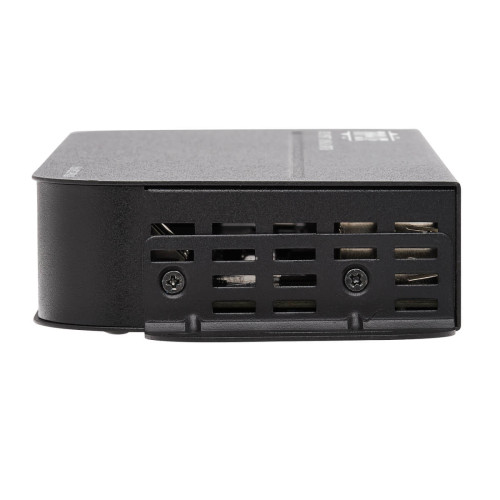

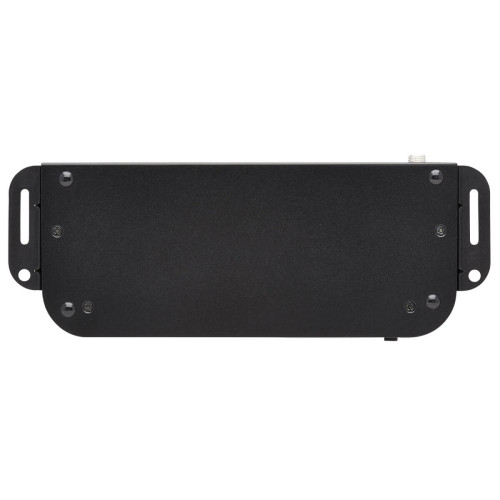

Designed for Convenient Mounting with Included Brackets

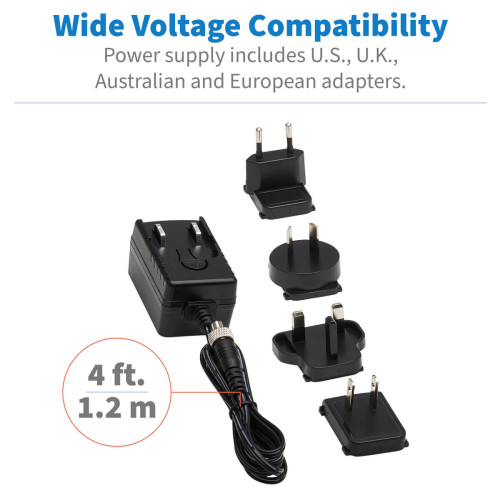

The heavy-duty metal housing comes with mounting brackets for permanent installation on a wall or beneath a desk with user-supplied hardware. The included DC power supply connects to any standard AC power source.
This KVM switch lets you access, control, boot and reboot two computers with DisplayPort connectors and switch between them. In addition to desktop and notebook computers, the switch also connects up to two media centers, video game systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other DisplayPort-enabled devices. Both computers share one monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.
Supports DisplayPort++ for Connecting an HDMI or DisplayPort Monitor
The B005-DPUA2-K supports DP++, allowing incoming DisplayPort signals to be converted to HDMI. It features one DisplayPort output and one HDMI output, though only one monitor may be used at a time.
Switching Between Computers Is Fast and Easy
Use the front-panel push buttons, hotkey commands, mouse movement or the included IR remote control for quick and easy toggling between computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected. Please note: Mouse Traversal is a permanent feature and cannot be disabled.
USB Cables Are Included to Facilitate a Simple Setup
Use the included USB 3.0 cables to connect your computers to the KVM switch. The plug-and-play B005-DPUA2-K requires no drivers, so you can connect and use it immediately. It works with all major operating systems, including Windows, macOS and Linux.
USB Hub Lets You Share Peripherals between Computers
Two USB 3.0 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between both connected computers. The ports support USB 3.0 data transfer speeds up to 5 Gbps and are backward compatible with earlier USB generations.
Transmits Crystal-Clear True 4K Video with HDR and 4:4:4 Color
The B005-DPUA2-K supports Ultra HD resolutions up to 4096 x 2160 (4K x 2K) at 60 Hz, as well as HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This KVM switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Designed for Convenient Mounting with Included Brackets
The heavy-duty metal housing comes with mounting brackets for permanent installation on a wall or beneath a desk with user-supplied hardware. The included DC power supply connects to any standard AC power source.
| Design | |
| Certification | CE, FCC, REACH |
| Country of origin | Vietnam |
| Hot keys | Y |
| Housing material | Metal |
| LED indicators | Y |
| Product colour | Black |
| Display | |
| Built-in display | N |
| HD type | 4K Ultra HD |
| Features | |
| Cable length | 1.2 m |
| Data transfer rate (max) | 5 Gbit/s |
| HDCP | Y |
| Plug and Play | Y |
| Graphics | |
| Maximum resolution | 4096 x 2160 pixels |
| Number of displays supported | 2 |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case gross weight | 3.5 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332254884 |
| Master (outer) case height | 199.9 mm |
| Master (outer) case length | 249.9 mm |
| Master (outer) case width | 340.1 mm |
| Products per master (outer) case | 5 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -10 - 80 °C |
| Other features | |
| AC adapter included | Y |
| Packaging content | |
| Cables included | USB Type-A to USB Type-B |
| Manual | Y |
| Performance | |
| Audio channels | 7.1 |
| Auto scan delay (max) | 999 s |
| Auto scan delay (min) | 5 s |
| Number of users | 1 user(s) |
| Video bandwidth | 60 Hz |
| Ports & interfaces | |
| Audio connections | Y |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A |
| Console USB ports quantity | 2 |
| DC-in jack | Y |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Headphone outputs | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 2 |
| Number of microphone inputs | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| USB hub | Y |
| Video port type | HDMI/DisplayPort |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Compatible power plug types | AU, EU, UK, US |
| External power adapter | Y |
| Input current | 0.6 A |
| Output current | 3 A |
| Output voltage | 5 V |
| Power consumption (typical) | 12 W |
| Power source | AC |
| Sustainability | |
| Sustainability certificates | RoHS |
| Technical details | |
| Rack mounting | N |

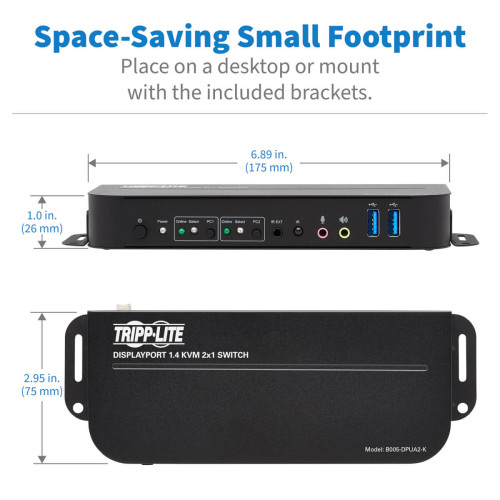

| Weight & dimensions | |
| Depth | 74.9 mm |
| Height | 25.9 mm |
| Package depth | 200.4 mm |
| Package height | 65 mm |
| Package type | Box |
| Package weight | 550 g |
| Package width | 230.1 mm |
| Weight | 370 g |
| Width | 178.1 mm |
Tripp Lite B005-DPUA2-K 2-Port DisplayPort/USB KVM Switch - 4K 60 Hz, HDR, HDCP 2.2, IR, DP 1.4, USB Sharing, USB 3.0 Cables
- Brand: Tripp-Lite
- Product Code: B005-DPUA2-K
- Availability: In Stock
-
$154.67
