Connects 4 HDMI-Enabled Devices to a Single HDMI Monitor, Keyboard and Mouse

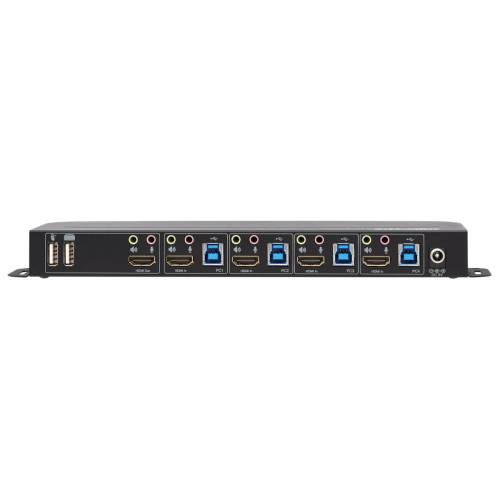

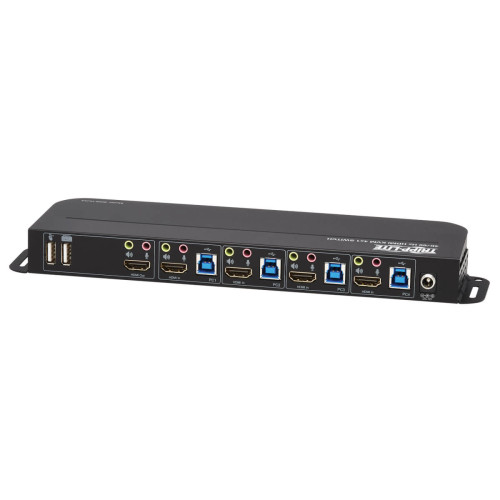

This KVM switch lets you access, control, boot and reboot four computers with HDMI ports and switch between them. In addition to desktop and notebook computers, the switch also connects up to four media centers, video game systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other HDMI-enabled devices. All computers share one HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.
Switching Between Computers Is Fast and Easy

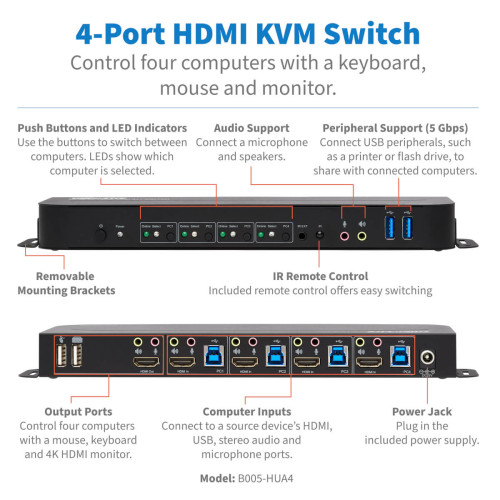

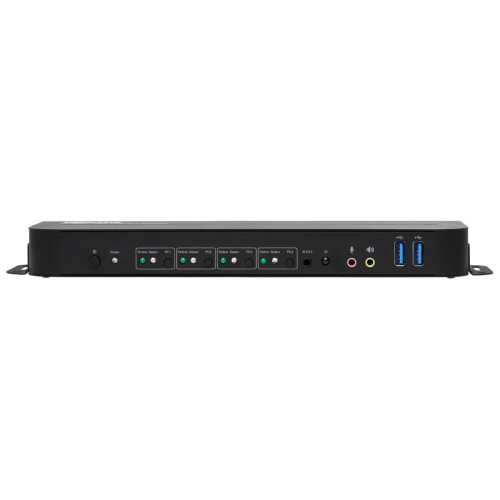

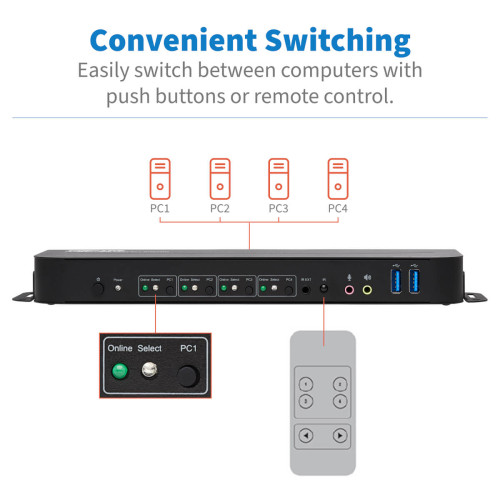

Use the front-panel push buttons, hotkey commands, mouse movement or the included IR remote control for quick and easy toggling between computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected. Please note: Mouse Traversal is a permanent feature and cannot be disabled
USB Hub Lets You Share Peripherals Between Computers

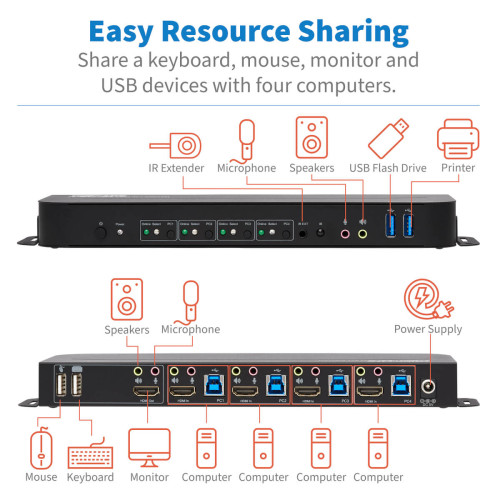

Two USB 3.0 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between all connected computers. The hub is backward compatible with USB 1.1 devices.
Transmits Crystal-Clear True 4K Video with HDR and 4:4:4 Color
The B005-HUA4 supports Ultra HD resolutions up to 4096 x 2160 (4K x 2K) at 60 Hz, as well as 7.1-channel surround sound and HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This KVM switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Designed for Convenient Mounting with Included Brackets

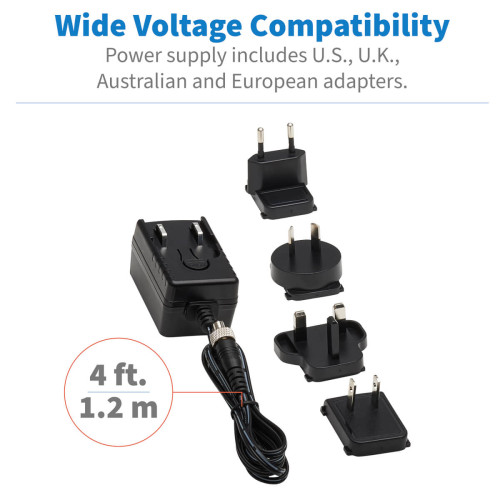

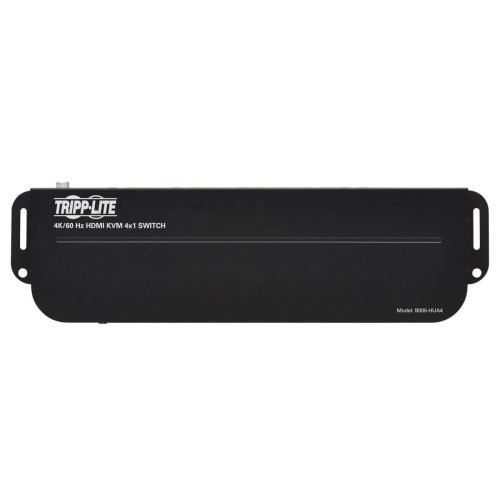

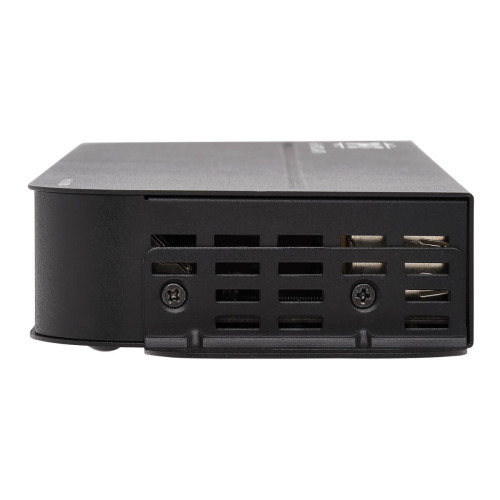

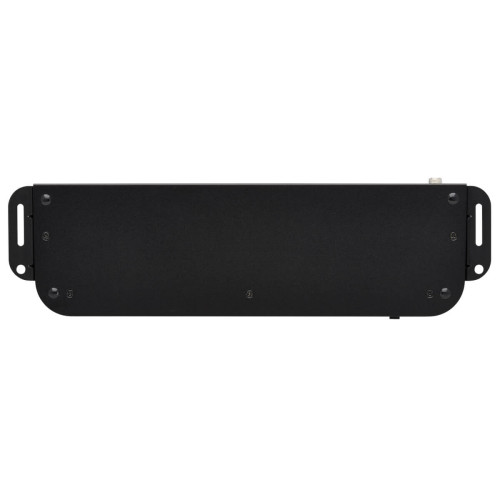

The heavy-duty metal housing comes with mounting brackets for permanent installation on a wall or beneath a desk with user-supplied hardware. The included DC power supply connects to any standard AC power source. The plug-and-play B005-HUA4 requires no drivers, so you can connect and use it immediately. It works with all major operating systems, including Windows, macOS and Linux.
This KVM switch lets you access, control, boot and reboot four computers with HDMI ports and switch between them. In addition to desktop and notebook computers, the switch also connects up to four media centers, video game systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other HDMI-enabled devices. All computers share one HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.
Switching Between Computers Is Fast and Easy
Use the front-panel push buttons, hotkey commands, mouse movement or the included IR remote control for quick and easy toggling between computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected. Please note: Mouse Traversal is a permanent feature and cannot be disabled
USB Hub Lets You Share Peripherals Between Computers
Two USB 3.0 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between all connected computers. The hub is backward compatible with USB 1.1 devices.
Transmits Crystal-Clear True 4K Video with HDR and 4:4:4 Color
The B005-HUA4 supports Ultra HD resolutions up to 4096 x 2160 (4K x 2K) at 60 Hz, as well as 7.1-channel surround sound and HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This KVM switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Designed for Convenient Mounting with Included Brackets
The heavy-duty metal housing comes with mounting brackets for permanent installation on a wall or beneath a desk with user-supplied hardware. The included DC power supply connects to any standard AC power source. The plug-and-play B005-HUA4 requires no drivers, so you can connect and use it immediately. It works with all major operating systems, including Windows, macOS and Linux.
| Design | |
| Certification | CE, FCC, REACH |
| Country of origin | Vietnam |
| Hot keys | Y |
| Housing material | Metal |
| LED indicators | Y |
| Product colour | Black |
| Push button | Y |
| Display | |
| Built-in display | N |
| HD type | 4K Ultra HD |
| Features | |
| Data transfer rate (max) | 5 Gbit/s |
| HDCP | Y |
| Plug and Play | Y |
| Graphics | |
| Maximum resolution | 4096 x 2160 pixels |
| Number of displays supported | 4 |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case gross weight | 4.2 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332254907 |
| Master (outer) case height | 199.9 mm |
| Master (outer) case length | 300 mm |
| Master (outer) case width | 340.1 mm |
| Products per master (outer) case | 5 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -10 - 80 °C |
| Other features | |
| AC adapter included | Y |
| Packaging content | |
| Manual | Y |
| Performance | |
| Audio channels | 7.1 |
| Auto scan delay (max) | 999 s |
| Auto scan delay (min) | 5 s |
| Number of users | 1 user(s) |
| Video bandwidth | 60 Hz |

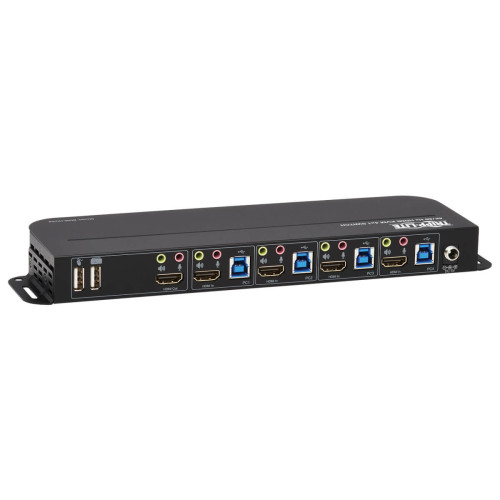

| Ports & interfaces | |
| Audio connections | Y |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity | 2 |
| DC-in jack | Y |
| HDMI ports quantity | 5 |
| HDMI version | 2.0 |
| Headphone outputs | 6 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 4 |
| Number of microphone inputs | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| USB hub | Y |
| Video port type | HDMI |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Compatible power plug types | AU, EU, UK, US |
| External power adapter | Y |
| Output current | 3 A |
| Output voltage | 5 V |
| Power consumption (typical) | 12.15 W |
| Power source | AC |
| Sustainability | |
| Sustainability certificates | RoHS |
| Technical details | |
| Rack mounting | N |
| Weight & dimensions | |
| Depth | 74.9 mm |
| Height | 25.9 mm |
| Package depth | 200.4 mm |
| Package height | 65 mm |
| Package type | Box |
| Package weight | 700 g |
| Package width | 279.9 mm |
| Weight | 500 g |
| Width | 243.1 mm |

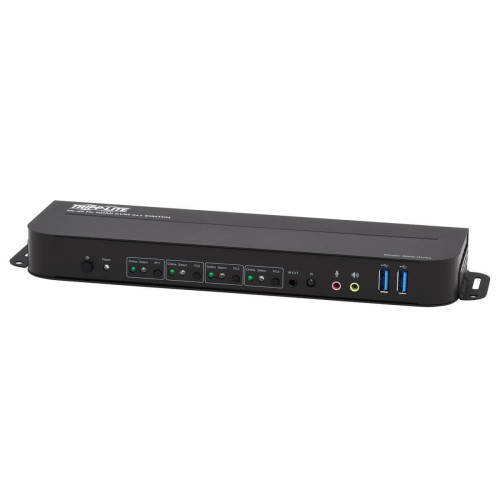

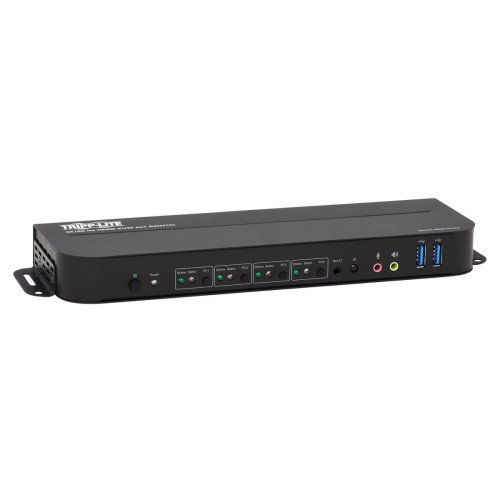

Tripp Lite B005-HUA4 4-Port HDMI/USB KVM Switch - 4K 60 Hz, HDR, HDCP 2.2, IR, USB Sharing
- Brand: Tripp-Lite
- Product Code: B005-HUA4
- Availability: In Stock
-
$187.18
