Connects Four Computers to Two 4K Monitors and a Single Keyboard/Mouse
This dual-monitor KVM switch lets you access, control, boot and reboot four computers or other devices with HDMI ports and switch back and forth among them. It’s ideal for work-from-home applications in which you’d like to share two monitors between your home and work computers. All connected computers share two HDMI 4K monitors and one USB keyboard/mouse, which saves space on your desk or workspace.
Switching Between Computers Is Fast and Easy

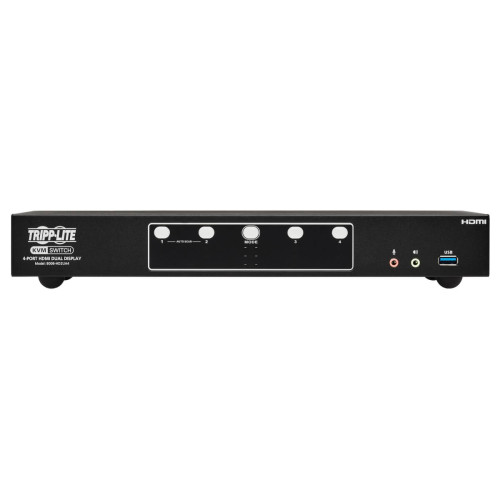

Use the front-panel push buttons, hotkey commands, mouse movement, RS-232 commands or the included remote port selector for quick and easy toggling among computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected.
Transmits Crystal-Clear 4K Video with Digital Audio

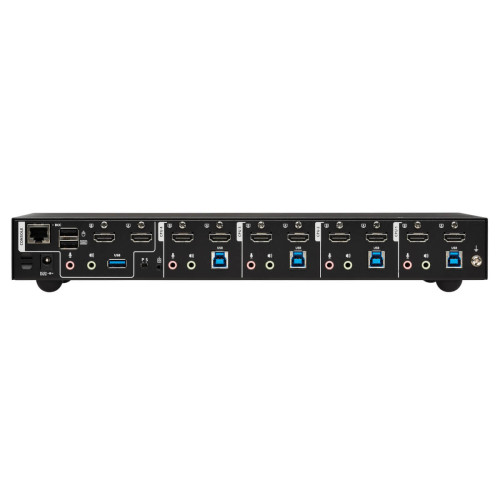

The B006-HD2UA4 supports video resolutions up to 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz) on two HDMI monitors, as well as 2.1-channel surround sound for music, movies and games. Independent audio switching lets you listen to music or a podcast on one computer, while simultaneously working on a different computer. Front-panel audio jacks have priority over the rear-panel jacks. A DCC (Daisy Chain Control) port lets you connect two B006-HD2UA4 KVM switches for a quad-display installation.
USB Hub Lets You Share Peripherals between Computers
Two USB 3.2 Gen 1 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between all connected computers. This lets you avoid the expense and clutter of separate USB hubs. The USB-A ports support data transfer speeds up to 5 Gbps and are backward compatible with previous USB generations.
Designed for Convenient Mounting with Included Brackets
The heavy-duty metal housing can be placed on a desktop or other level surface that can safely support the weight of the KVM switch and attached cables. It can also be mounted at the front or rear of a standard 19-inch rack with user-supplied hardware. The included DC power supply connects to any standard AC power source.
This dual-monitor KVM switch lets you access, control, boot and reboot four computers or other devices with HDMI ports and switch back and forth among them. It’s ideal for work-from-home applications in which you’d like to share two monitors between your home and work computers. All connected computers share two HDMI 4K monitors and one USB keyboard/mouse, which saves space on your desk or workspace.
Switching Between Computers Is Fast and Easy
Use the front-panel push buttons, hotkey commands, mouse movement, RS-232 commands or the included remote port selector for quick and easy toggling among computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected.
Transmits Crystal-Clear 4K Video with Digital Audio
The B006-HD2UA4 supports video resolutions up to 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz) on two HDMI monitors, as well as 2.1-channel surround sound for music, movies and games. Independent audio switching lets you listen to music or a podcast on one computer, while simultaneously working on a different computer. Front-panel audio jacks have priority over the rear-panel jacks. A DCC (Daisy Chain Control) port lets you connect two B006-HD2UA4 KVM switches for a quad-display installation.
USB Hub Lets You Share Peripherals between Computers
Two USB 3.2 Gen 1 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between all connected computers. This lets you avoid the expense and clutter of separate USB hubs. The USB-A ports support data transfer speeds up to 5 Gbps and are backward compatible with previous USB generations.
Designed for Convenient Mounting with Included Brackets
The heavy-duty metal housing can be placed on a desktop or other level surface that can safely support the weight of the KVM switch and attached cables. It can also be mounted at the front or rear of a standard 19-inch rack with user-supplied hardware. The included DC power supply connects to any standard AC power source.
| Design | |
| Certification | BSMI; CCC; DOE; FCC; GS; PSE; RCM; TUV; UL; cUL; NOM |
| Country of origin | Taiwan |
| Housing material | Metal |
| LED indicators | Y |
| Product colour | Black |
| Push button | Y |
| Display | |
| Built-in display | N |
| HD type | 4K Ultra HD |
| Features | |
| HDCP | Y |
| Rack capacity | 1U |
| Graphics | |
| Maximum resolution | 4096 x 2160 pixels |
| Logistics data | |
| Harmonized System (HS) code | 8471.80.1000 |
| Master (outer) case gross weight | 11.1 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332265965 |
| Master (outer) case height | 258 mm |
| Master (outer) case length | 375 mm |
| Master (outer) case width | 565 mm |
| Products per master (outer) case | 3 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| AC adapter included | Y |
| DC input voltage | 12 V |

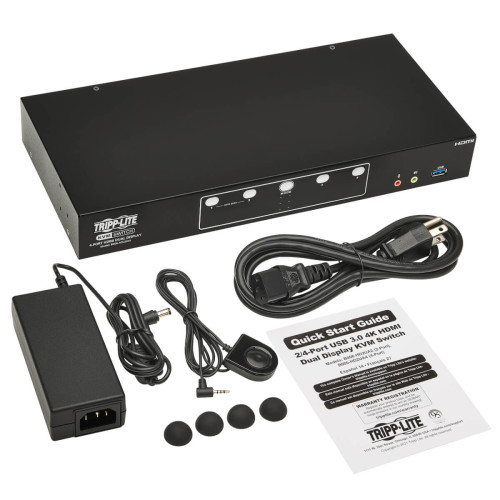

| Packaging content | |
| Cables included | AC |
| Quick installation guide | Y |
| Rubber feet | Y |
| Performance | |
| Audio channels | 2.1 |
| Number of users | 1 user(s) |
| USB connector type | USB Type-B |
| Ports & interfaces | |
| Audio connections | Y |
| Console ports | RJ–45 |
| DC-in jack | Y |
| HDMI ports quantity | 10 |
| Headphone outputs | 6 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 4 |
| Number of microphone inputs | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB hub | Y |
| Video port type | HDMI |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| External power adapter | Y |
| Input current | 3.33 A |
| Power consumption (typical) | 3.17 W |
| Power plug type | C14 coupler |
| Power source | DC |
| Sustainability | |
| Sustainability certificates | CE, REACH, RoHS, WEEE |
| Technical details | |
| Rack mounting | Y |
| Weight & dimensions | |
| Depth | 154 mm |
| Height | 44 mm |
| Package depth | 233 mm |
| Package height | 116 mm |
| Package type | Box |
| Package weight | 3.17 kg |
| Package width | 540 mm |
| Weight | 1.6 kg |
| Width | 335 mm |
Tripp Lite B006-HD2UA4 KVM switch Rack mounting Black
- Brand: Tripp-Lite
- Product Code: B006-HD2UA4
- Availability: In Stock
-
$576.90
