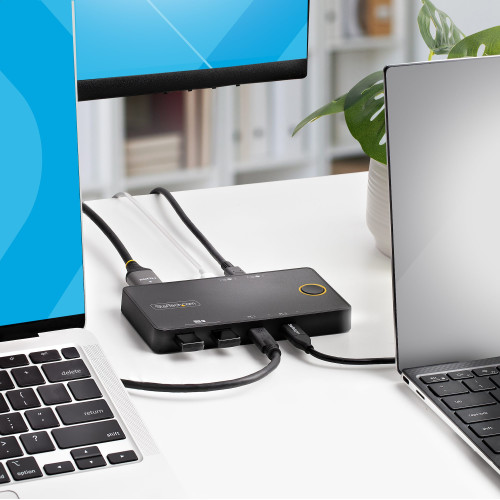

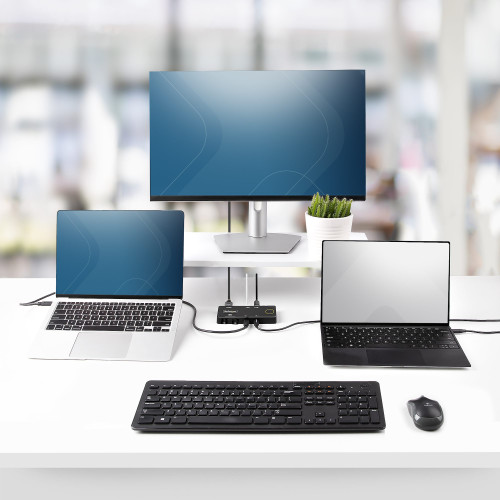

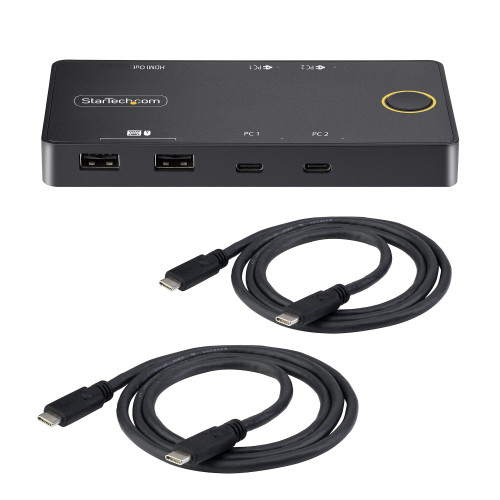

Power/charge and control two USB Type-C laptops over a single 4K 60Hz HDMI monitor, with pushbutton host selectionThis USB Type-C KVM Switch enables users to switch between two USB-C laptops, sharing a 4K 60Hz HDMI monitor, keyboard, and mouse, while simultaneously charging each laptop.100W Power Delivery Pass-throughDual-100W Power Delivery 3.0 pass-through ports (10W reserved) enable the KVM Switch to charge each laptop at up to 90W, using its own dedicated USB-C power adapter. The dual PD passthrough ports allow for charging each laptop, even when they are not connected to the selected port.Universal CompatibilityThe 2-Port KVM Switch works with any operating system, including Windows, macOS, Linux, and ChromeOS. It is compatible with all hardware platforms, such as Intel, AMD, and Apple M1 and M2 devices (e.g., MacBook Pro). Additionally, it works with DP Alt Mode-enabled USB-C, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices.Ready for Quick DeploymentThe KVM Switch is bus-powered and includes two 3ft/1m USB-C host cables, allowing for rapid deployment. The small form factor is sturdy and features attached rubber feet, keeping the KVM securely in place during use. The streamlined port layout ensures easy access to the mouse, keyboard, and host connections, while the PD Passthrough and HDMI output are conveniently out of the way - located on the other side of the unit.The StarTech.com Advantage
Design | |
Hot keys | N |
Housing material | Acrylonitrile butadiene styrene (ABS) |
LED indicators | Power |
Product colour | Black |
Push button | Y |
Display | |
Built-in display | N |
HD type | 4K Ultra HD |
Features | |
Cable length | 1 m |
Chipset | VLI - VL103R, VLI - VL171, Parade - PS186, VLI - VL817 |
Data transfer rate (max) | 0.48 Gbit/s |
Plug and Play | Y |
Graphics | |
Maximum resolution | 4096 x 2160 pixels |
Logistics data | |
Master (outer) case height | 310 mm |
Master (outer) case length | 470 mm |
Master (outer) case width | 410 mm |
Products per master (outer) case | 20 pc(s) |
Operational conditions | |
Operating relative humidity (H-H) | 20 - 80% |
Operating temperature (T-T) | 5 - 55 °C |
Storage temperature (T-T) | -20 - 50 °C |
Other features | |
IP control | N |
Packaging content | |
Cables included | USB Type-C |
Quick installation guide | Y |
Performance | |
Audio channels | 7.1 |
Video bandwidth | 75 Hz |
Ports & interfaces | |
Console HDMI ports quantity | 1 |
Console ports | HDMI, USB A, USB C |
Console USB ports quantity | 4 |
Keyboard port type | USB |
Mouse port type | USB |
Number of computers controlled | 2 |
USB Power Delivery | Y |
USB Power Delivery up to | 100 W |
Video port type | HDMI |
Power | |
Power consumption (typical) | 10 W |
Sustainability | |
Sustainability certificates | CE, RoHS |
Sustainability compliance | Y |
Technical details | |
Mean time between failures (MTBF) | 50000 h |
Rack mounting | N |
Weight & dimensions | |
Depth | 140 mm |
Height | 15 mm |
Package depth | 172 mm |
Package height | 85 mm |
Package weight | 440 g |
Package width | 120 mm |
Weight | 200 g |
Width | 70 mm |

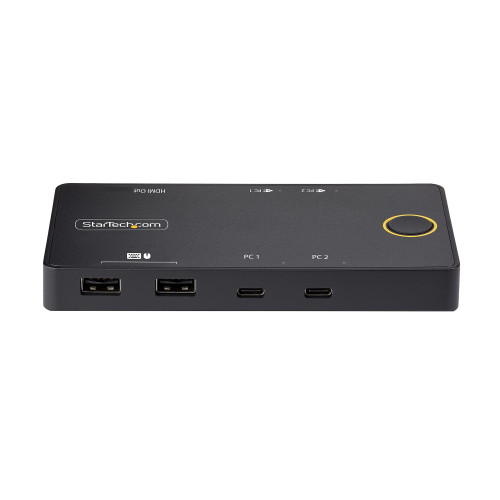

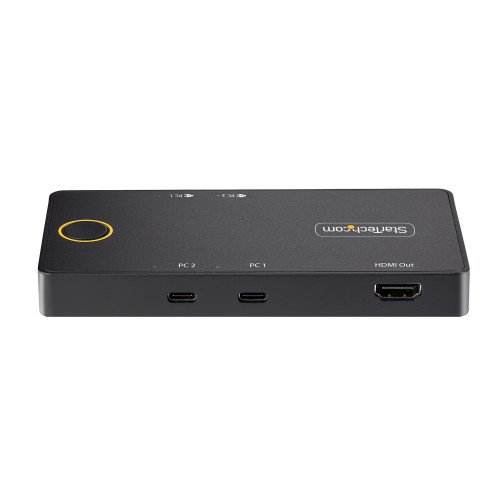

StarTech.com 2-Port USB-C KVM Switch, Single-4K 60Hz HDMI Monitor, Dual-100W Power Delivery Pass-through Ports, Bus Powered, USB Type-C/USB4/Thunderbolt 3/4 Compatible - Small Form Factor
- Brand: StarTech.com
- Product Code: C2-H46-UC2-PD-KVM
- Availability: In Stock
-
$180.44
